Description:

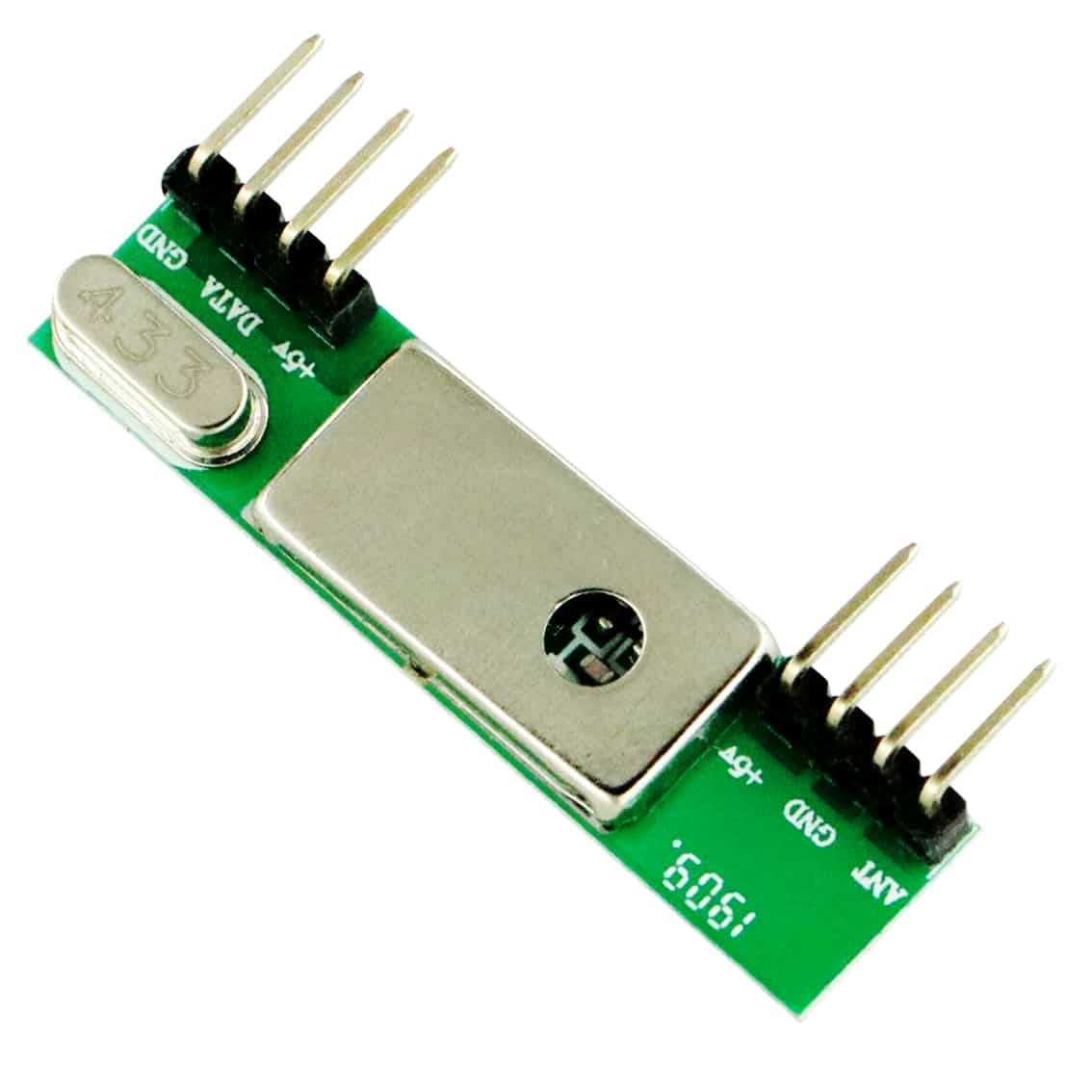

The RXB6 433MHz Superheterodyne Wireless Receiver Module is a high-performance RF receiver designed for long-range and stable wireless communication. Operating at the popular 433MHz ISM frequency band, this compact receiver offers improved sensitivity, reduced noise, and excellent selectivity compared to traditional super-regenerative modules. It is widely used in remote controls, wireless security systems, smart home devices, and data transmission projects where stable and reliable reception is essential.
With a typical receiving sensitivity of -107dBm and a working voltage range of 3.6V to 5V DC, the RXB6 module ensures robust performance across a variety of environments. Furthermore, its superheterodyne design delivers enhanced resistance to interference, making it suitable for applications that demand consistency and long-distance communication. Easy to integrate into microcontroller-based projects such as Arduino or Raspberry Pi, this module is a versatile and cost-effective solution for wireless system development.
Specifications:
- Model: RXB6
- Type: 433MHz Superheterodyne Receiver Module
- Operating Frequency: 433.92 MHz (ISM Band)
- Operating Voltage: 3.6V – 5V DC
- Quiescent Current: 4mA
- Receiving Sensitivity: -107dBm (typical)
- Data Rate: 0.1–4.8kbps
- Output: Digital Data
- Noise Resistance: High selectivity and low interference
- Temperature Range: -40°C to +85°C
- PCB Size: Approx. 30mm x 14mm x 7mm
- Applications: Remote controls, wireless alarms, sensor networks, smart home automation
Features:
- High sensitivity of -107dBm for long-range communication
- Wide operating voltage (3.6V–5V DC)
- Stable performance with superheterodyne architecture
- Low power consumption (approx. 4mA quiescent)
- Excellent resistance to RF interference and noise
- Compatible with Arduino, Raspberry Pi, and other microcontrollers
Contents:
- 1 x RXB6 433MHz Superheterodyne Wireless Receiver Module
