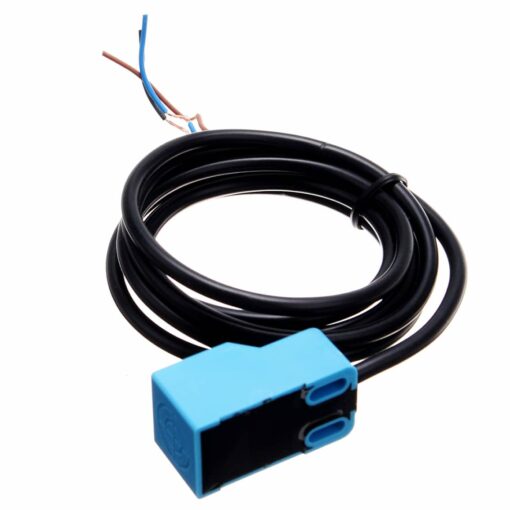

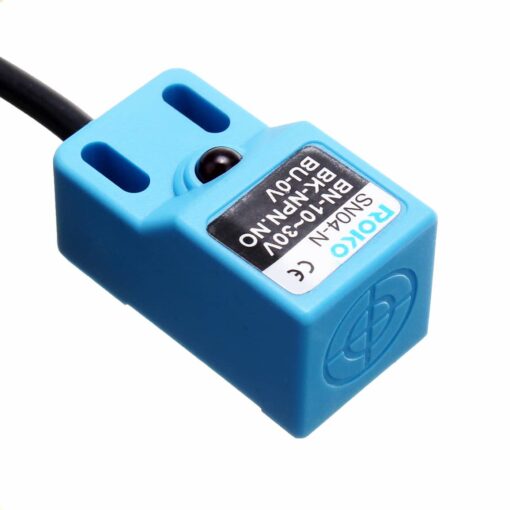

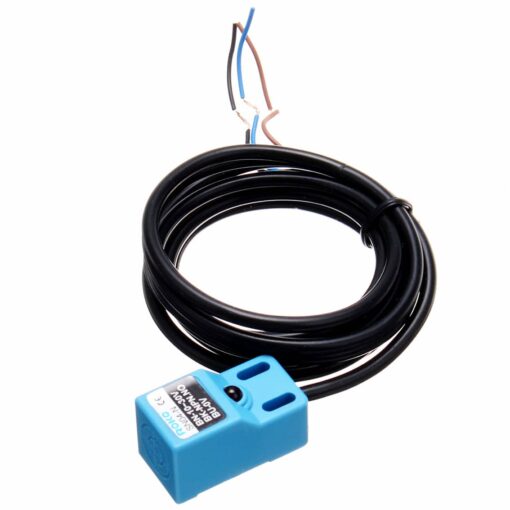

SN04-N NPN Inductive Proximity Switch Sensor

The SN04-N NPN Inductive Proximity Switch Sensor can detect metal objects within 5mm.

$12.95

Availability: 29 in stock

Buy now, pay later available.

SKU PHI1072208 Category Tags , ,

Description:

The SN04-N Inductive Proximity Switch Sensor can detect metal objects within 5mm.

The sensor acts as a switch by Signal output pin to 5V when there is a metal object sensed. The sensor has a 1-meter cable attached.

This is an NPN type.



Specifications:

  • Voltage Input: 10 – 30V DC
  • Digital Output: 0V or 5V
  • Type: NPN
  • Detection Distance: 5mm (max)
  • Current Consumption: 5 mA
  • Response Frequency: 500Hz
  • Cable Length: 1 meter
  • LED visual indication
  • Dimensions: 35mm x 18mm x 18mm (module)



Contents:

  • 1 x SN04-N NPN Inductive Proximity Switch Sensor with 1-meter cable
