SOIC8 SOP8 Test Clip with Cable + 2 Adapters for EEPROM 93CXX / 25CXX / 24CXX In-circuit Programming

0 reviews

The SOIC8/SOP8 Test Clip with Cable and 2 Adapters enables efficient in-circuit programming of EEPROM chips, supporting series 24, 25, 26, and 93, and includes adapters for seamless connectivity to various programmers.

  • Facilitates in-circuit programming of SOIC8/SOP8 EEPROM chips without desoldering.
  • Compatible with EEPROM series 24, 25, 26, and 93 for versatile applications.
  • Includes 40cm spring-loaded cable for secure and stable connections.
  • Comes with two adapters to ensure easy integration with various programming devices.
  • Durable construction ensures reliable performance for long-term use.

Original price was: $17.95.Current price is: $15.95.

Order Within –

for Monday despatch

Availability: 60 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SOIC8 SOP8 Test Clip with Cable + 2 Adapters for EEPROM 93CXX / 25CXX / 24CXX In-circuit Programming 10
SOIC8 SOP8 Test Clip with Cable + 2 Adapters for EEPROM 93CXX / 25CXX / 24CXX In-circuit Programming 11
SOIC8 SOP8 Test Clip with Cable + 2 Adapters for EEPROM 93CXX / 25CXX / 24CXX In-circuit Programming 12
SOIC8 SOP8 Test Clip with Cable + 2 Adapters for EEPROM 93CXX / 25CXX / 24CXX In-circuit Programming 13
SOIC8 SOP8 Test Clip with Cable + 2 Adapters for EEPROM 93CXX / 25CXX / 24CXX In-circuit Programming 14
SOIC8 SOP8 Test Clip with Cable + 2 Adapters for EEPROM 93CXX / 25CXX / 24CXX In-circuit Programming 15
SKU: PHI1001386

You May Also Like...

Description:

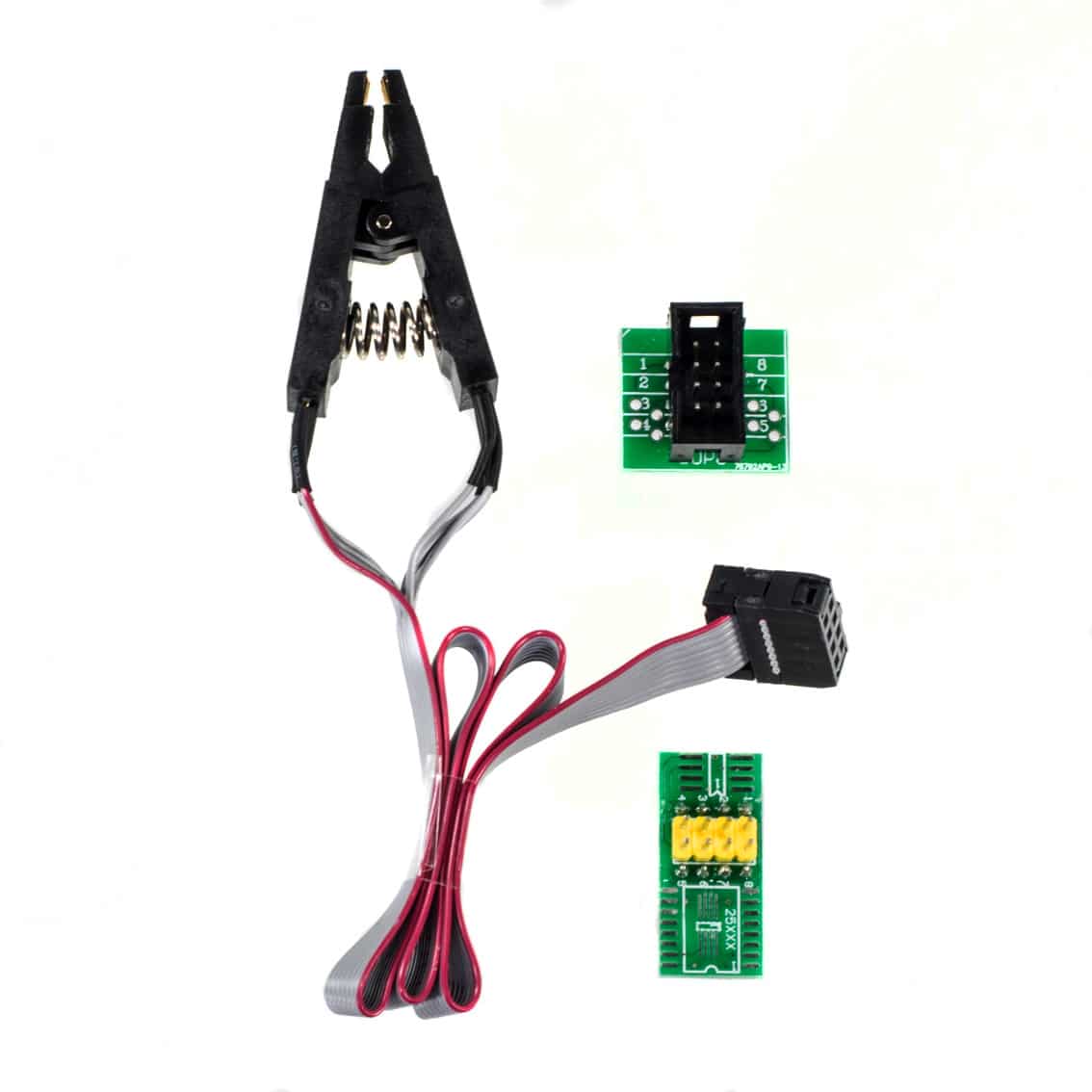

The SOIC8/SOP8 Test Clip with Cable and 2 Adapters is an essential tool for engineers and technicians involved in EEPROM programming and testing. Designed to facilitate in-circuit programming of SOIC8 or SOP8 chips, this kit eliminates the need to desolder chips from the circuit board, streamlining the testing and programming process. It is compatible with EEPROM series such as 24, 25, 26, and 93, making it versatile for various applications.

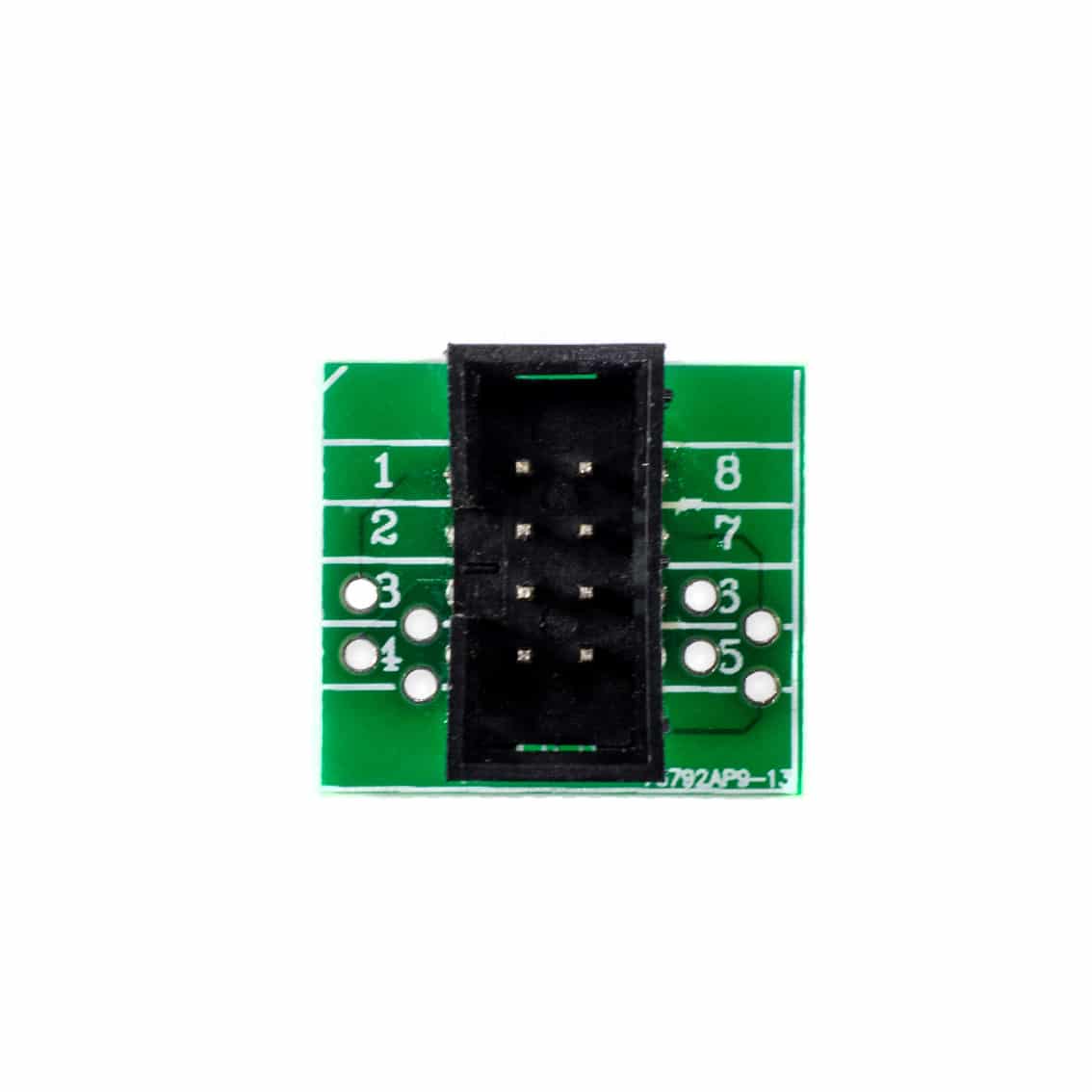

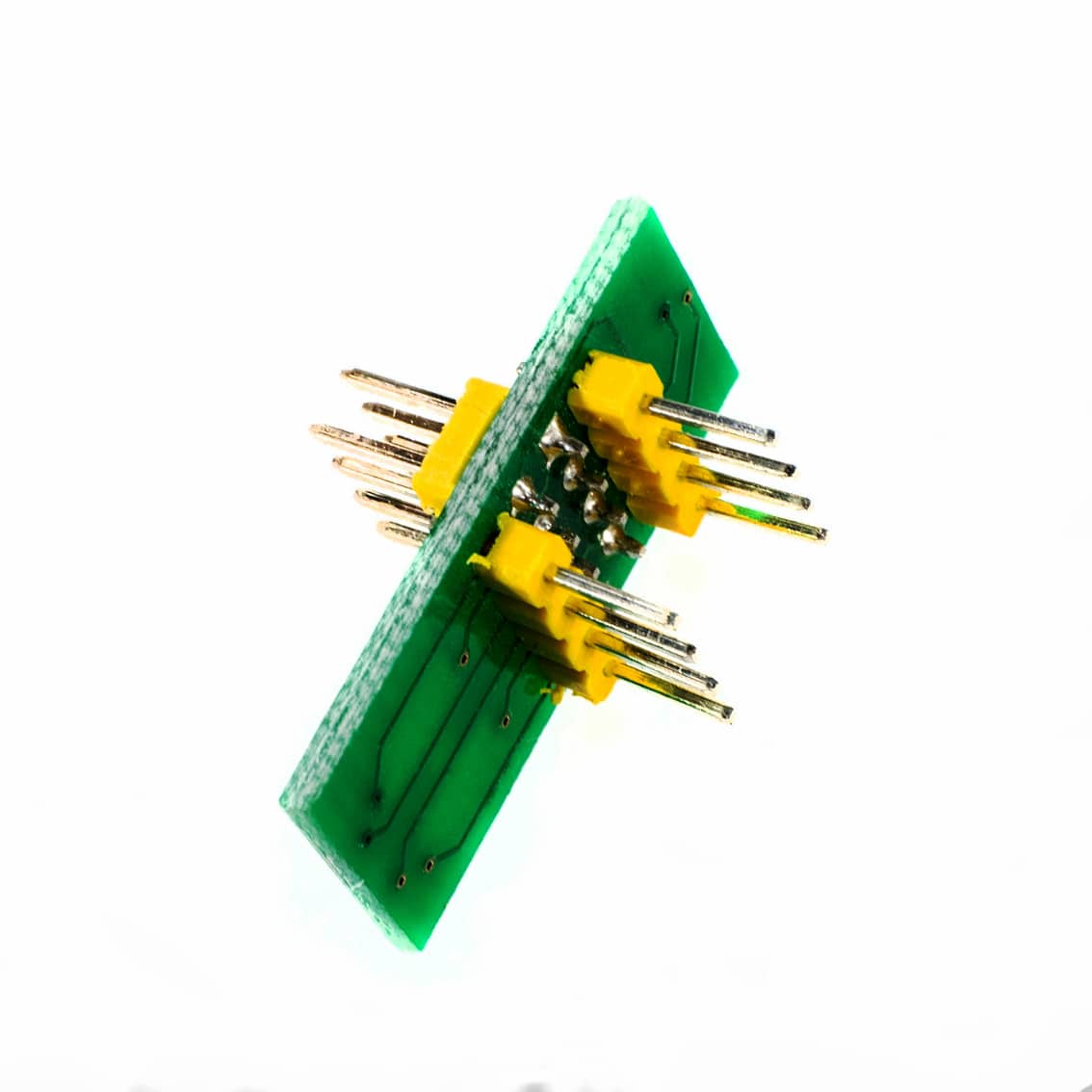

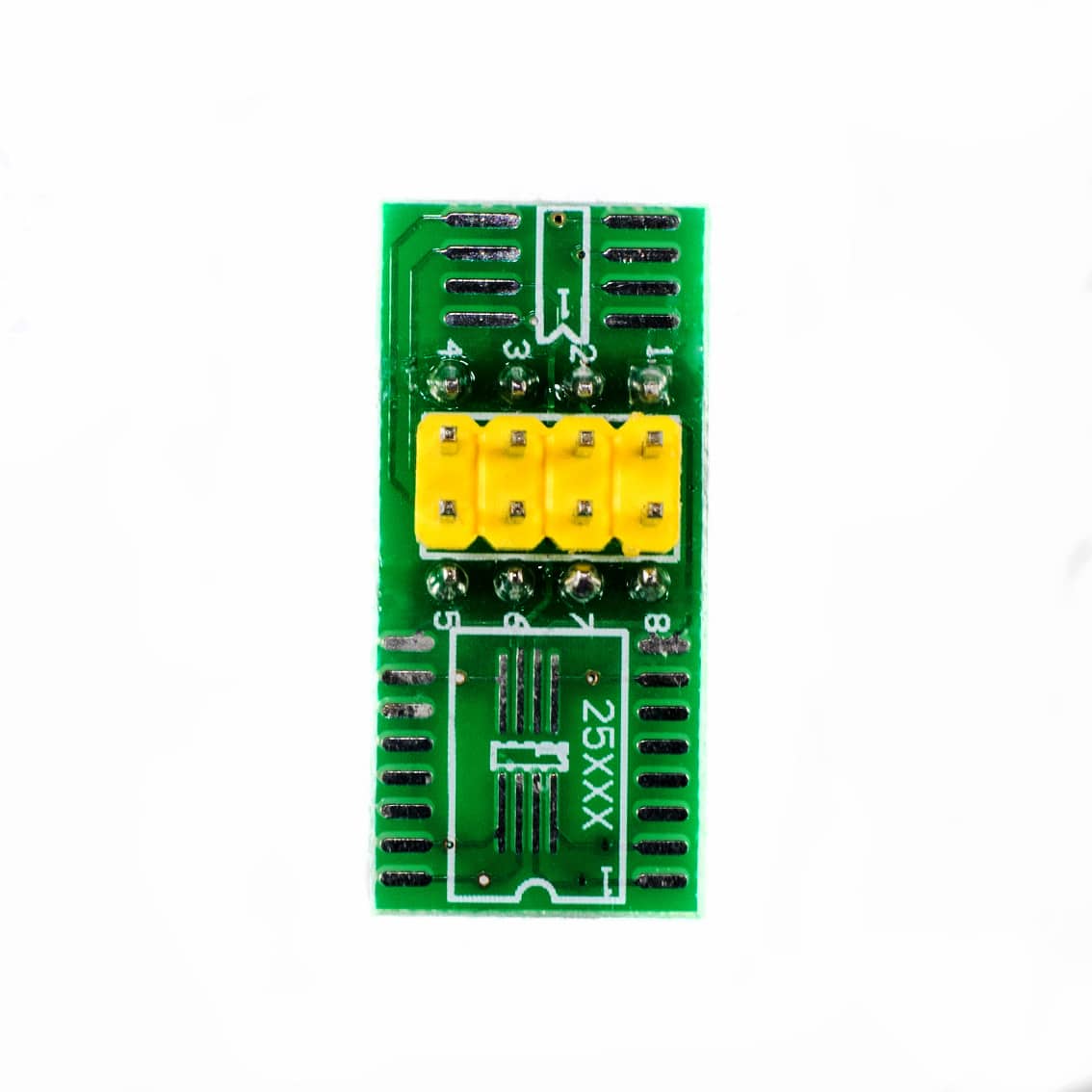

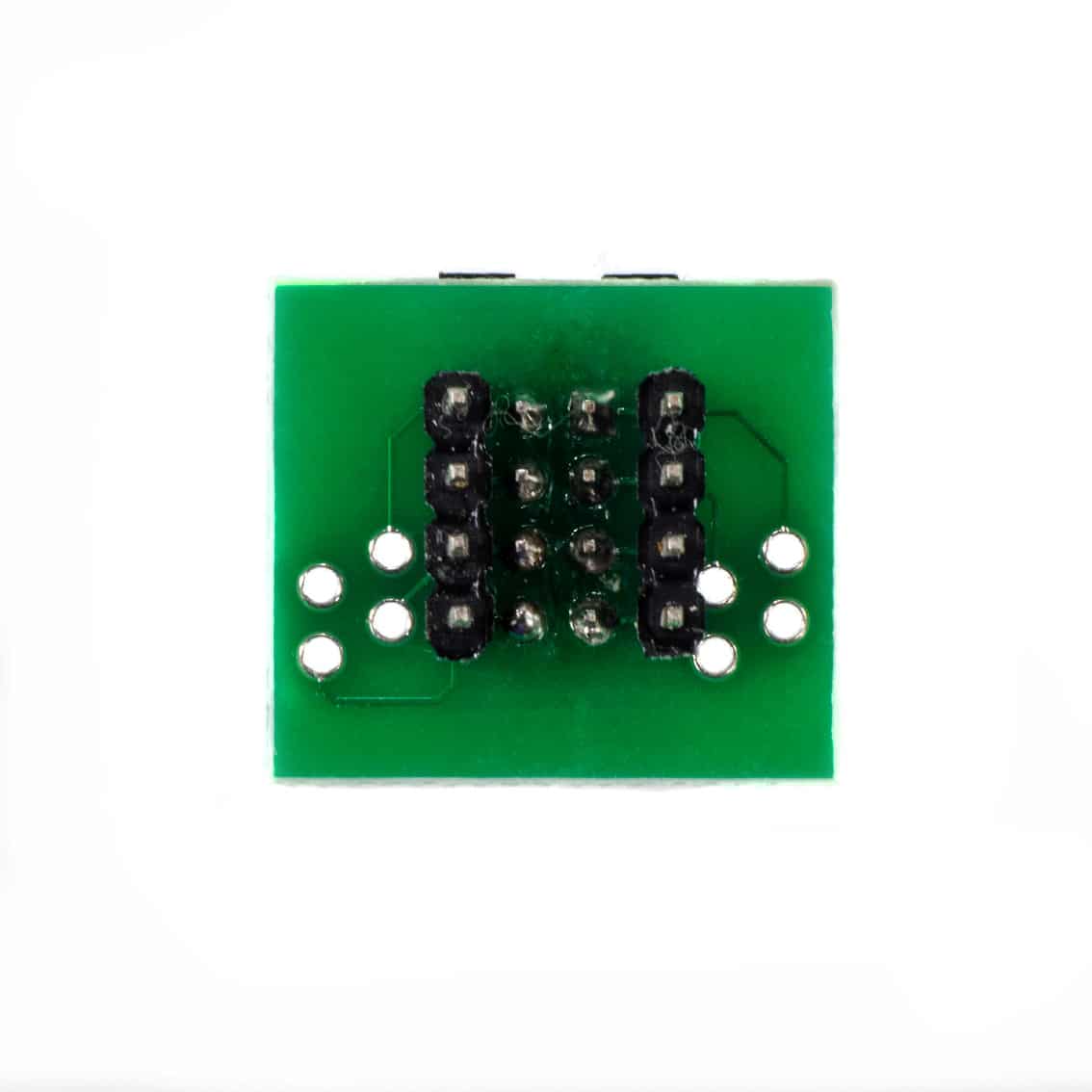

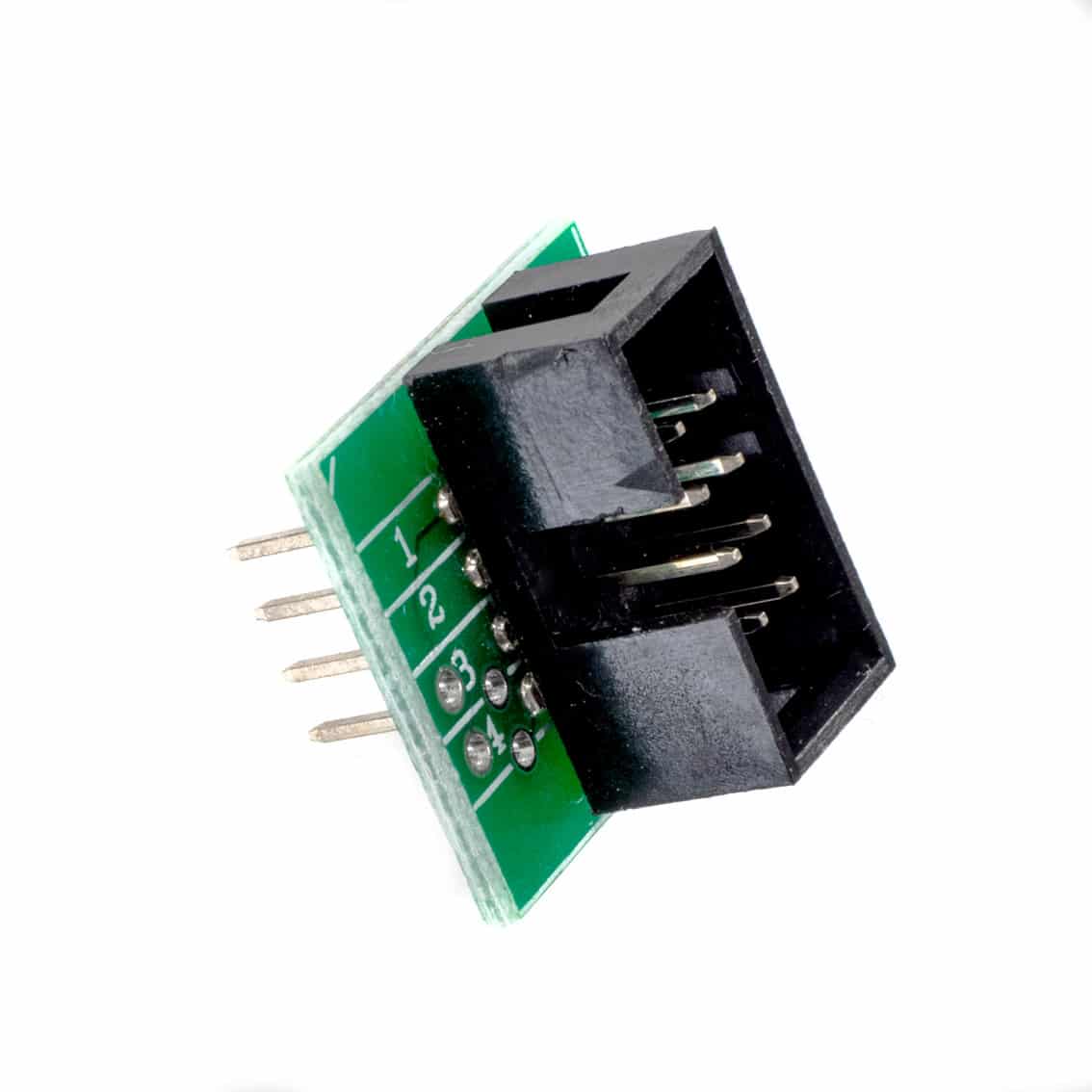

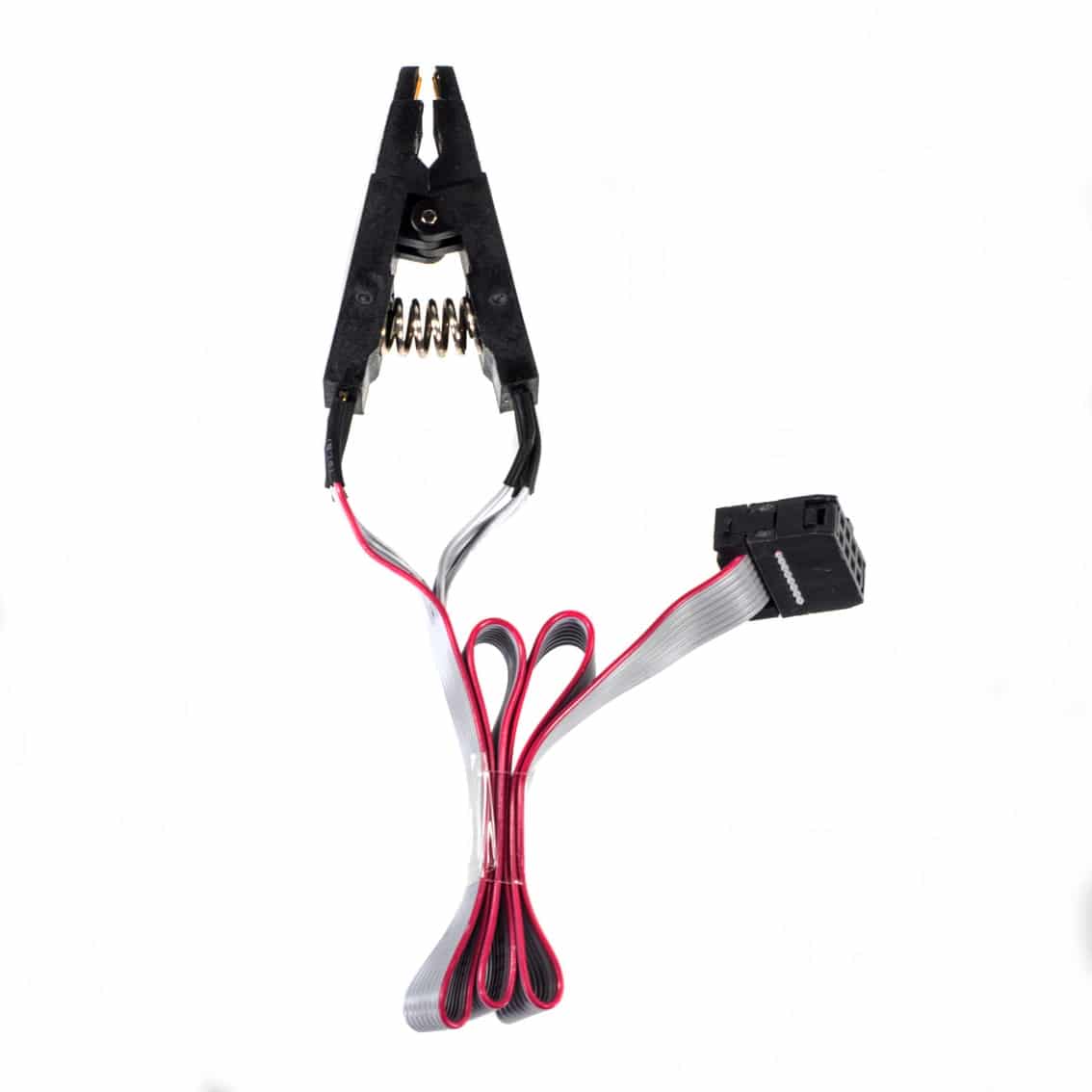

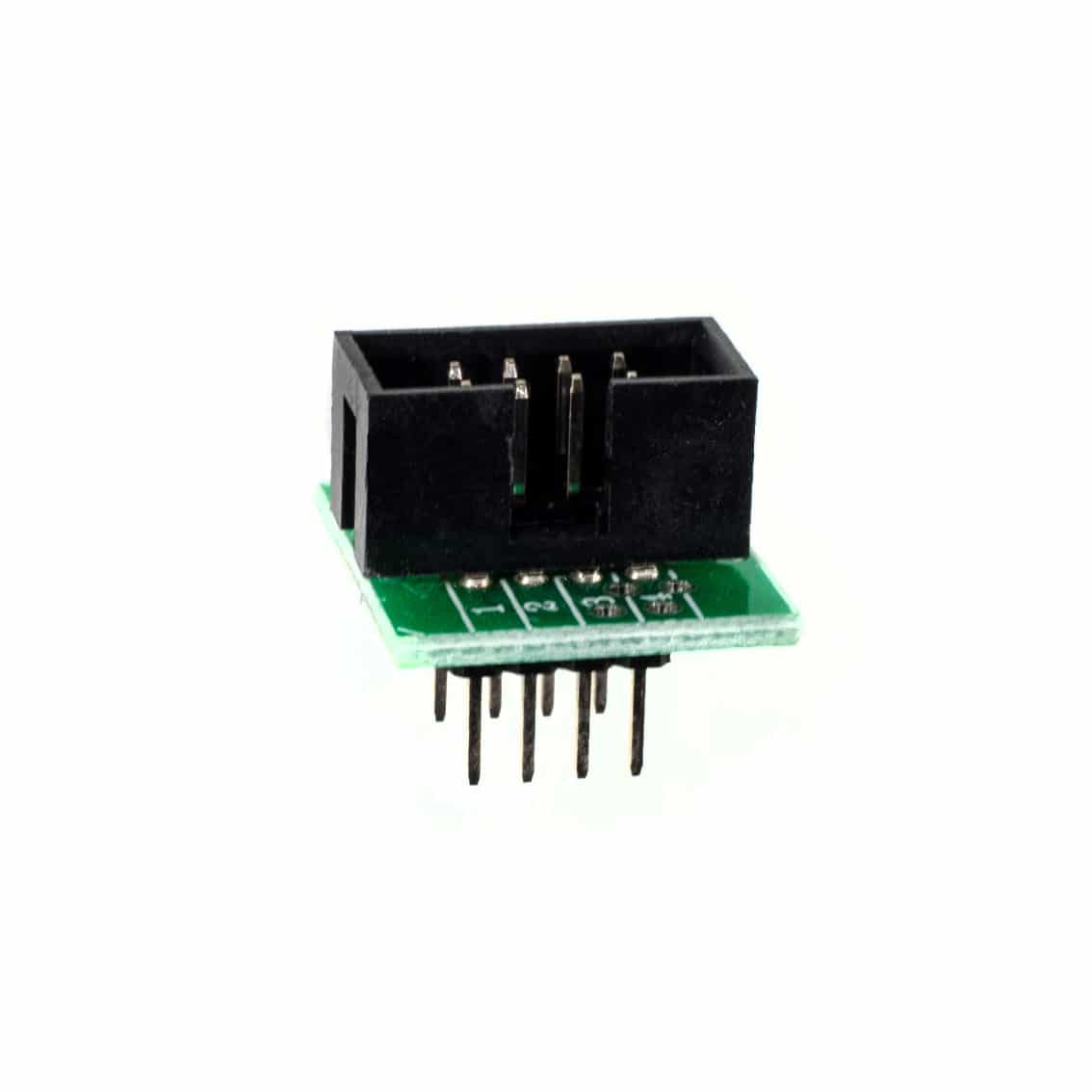

The included test clip allows for hands-free operation, securely attaching to the target chip. The two accompanying adapters provide seamless connectivity between the test clip and your programming device, ensuring reliable data transmission. This setup is particularly beneficial for tasks like BIOS flashing, data retrieval, and firmware updates, offering a practical solution for in-system programming needs.

Specifications:

  • Connector Type: Test Clip
  • Pin Format: SOIC/SOP
  • Lead Pitch: 2.54mm
  • Row Pitch: 3.81mm
  • Cable Length: 40cm
  • Supported Chip Width: 150mm to 210mm

Features:

  • Supports in-circuit programming, eliminating the need to remove chips from the board
  • Compatible with EEPROM series 24, 25, 26, and 93
  • Spring-loaded cable ensures secure and stable connections
  • Adapters facilitate easy connection to various programmers
  • Durable construction for reliable, long-term use

Contents:

  • 1 x SOIC8/SOP8 Test Clip with Cable
  • 2 x Adapters for EEPROM Programming
Weight 0.02 kg
Dimensions 120 × 10 × 70 mm
