Description:

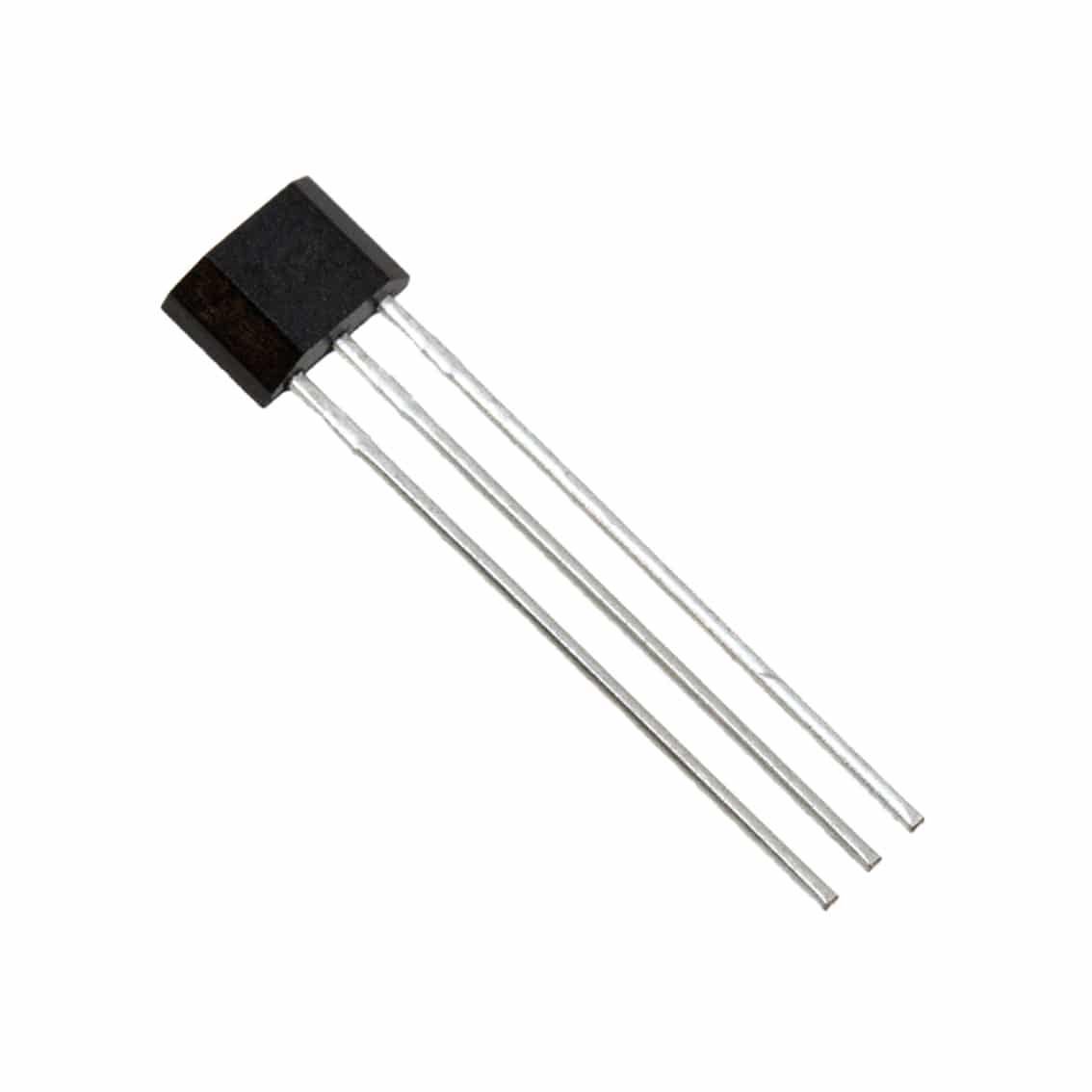

The SS49E linear Hall effect sensor 5-pack is a compact and versatile magnetic field detection sensor ideal for a wide range of applications. Designed to provide reliable and linear output voltage in response to magnetic field variations, this sensor delivers exceptional accuracy and consistency. Whether you’re working on proximity detection, motor control, or current sensing projects, the SS49E provides a cost-effective and dependable solution.
Thanks to its ratiometric output and high sensitivity, the SS49E is capable of detecting both north and south magnetic poles, making it highly suitable for industrial, automotive, and hobbyist electronics. Moreover, it supports single-supply operation and is housed in a TO-92 package for easy integration. With this convenient SS49E linear Hall effect sensor 5-pack, you can effortlessly prototype or scale your magnetic field sensing projects.
Specifications:
- Model: SS49E
- Sensor Type: Linear Hall Effect
- Operating Voltage: 4.5V to 6.0V DC
- Typical Supply Voltage: 5V DC
- Output Type: Analogue, ratiometric
- Output Voltage: 0.5V to 4.5V (depending on magnetic field)
- Magnetic Sensitivity: 1.4 mV/Gauss (typical)
- Package Type: TO-92 flat-3
- Polarity Detection: North and South poles
- Operating Temperature Range: -40°C to +125°C
- Response Time: <3 µs
- Linearity: Excellent across the sensing range
- Low power consumption: Ideal for battery-powered applications
Features:
- Linear analogue output for precise magnetic field measurement
- Compact TO-92 package for easy through-hole mounting
- Fast response time (<3 µs)
- Ratiometric output relative to supply voltage
- Suitable for use with microcontrollers and ADCs
- Wide operating temperature range for harsh environments
Contents:
- 5 × SS49E Linear Hall Effect Sensors
