Description:

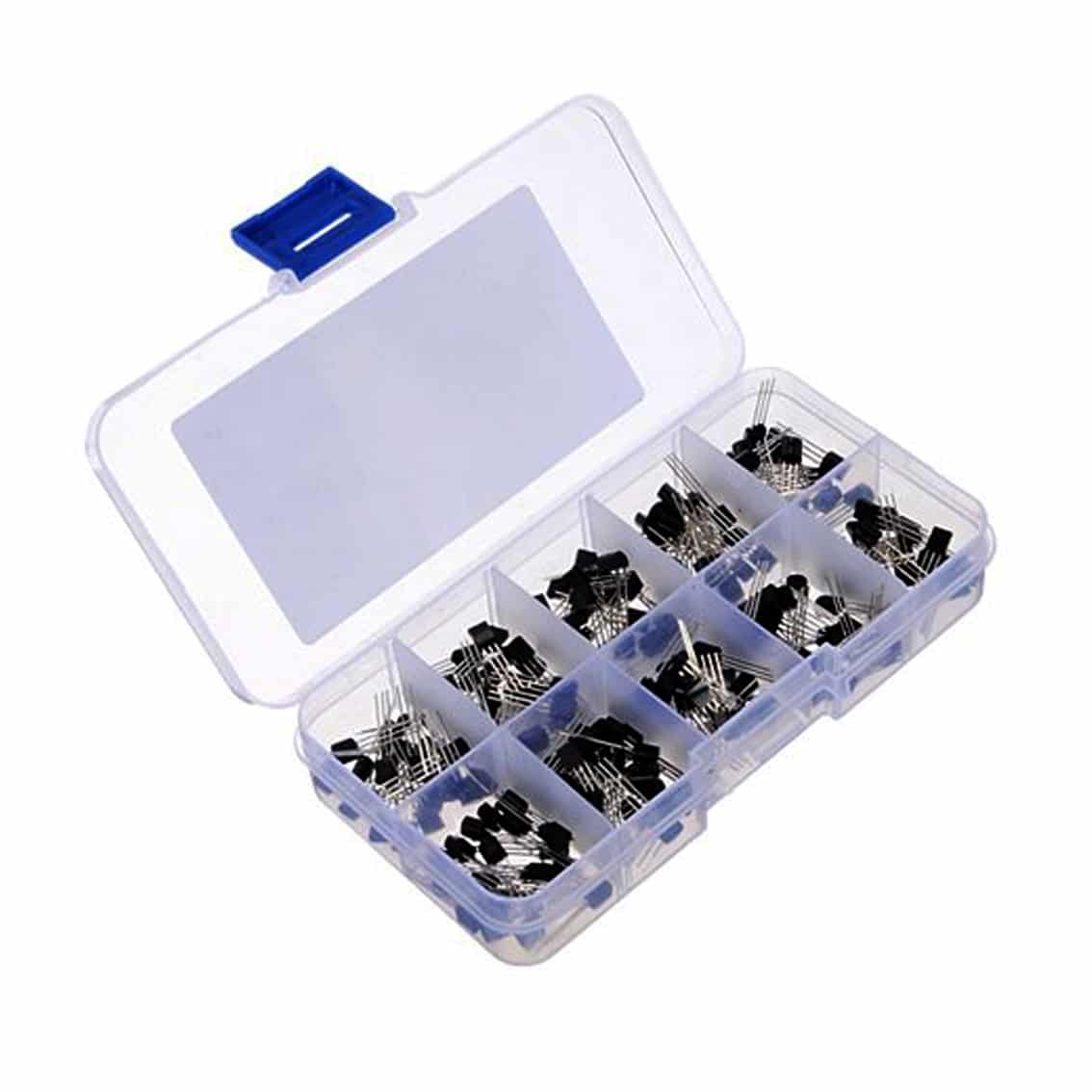

The Transistor Pack consists of 17 common types of transistors, with 10 of each value, stored in a convenient 10 compartment storage case.

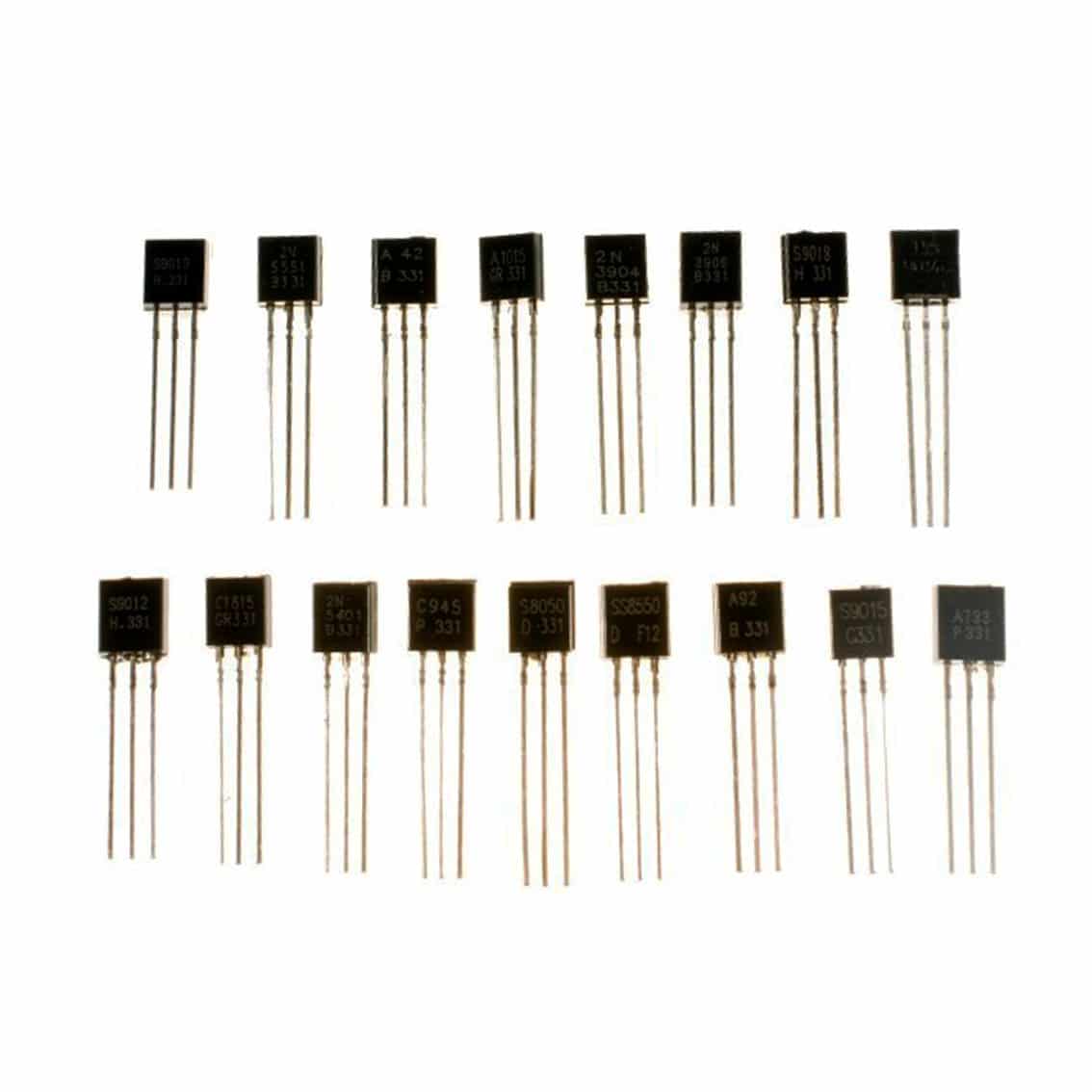

The kit contains the following values: S9012, S9013, S9014, S9015, S9018, A1015, C1815, A42, A92, 2N5401, 2N5551, A733, C945, S8050, S8550, 2N3906, 2N3904
A transistor is a semiconductor device used to amplify and switch electronic signals and electrical power. It is composed of semiconductor material with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals changes the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal.
Specifications:
- S9013 (NPN General Purpose Transistor)
- Max Gain (hfe): 400
- Collector Current (mA) 500
- C-E Max Voltage (Vceo): 25
- C-B Max Voltage (Vcbo): 40
- E-B Max Voltage (Vebo): 5
- Max Power Dissipation (W): 0.625
- Frequency (MHz): 150
- S9014 (NPN General Purpose Transistor)
- Max Gain (hfe): 1000
- Collector Current (mA) 100
- C-E Max Voltage (Vceo): 45
- C-B Max Voltage (Vcbo): 50
- E-B Max Voltage (Vebo): 5
- Max Power Dissipation (W): 0.4
- Frequency (MHz): 150
- S9015 (PNP General Purpose Transistor)
- Max Gain (hfe): 1000
- Collector Current (mA) 100
- C-E Max Voltage (Vceo): -45
- C-B Max Voltage (Vcbo): -50
- E-B Max Voltage (Vebo): -5
- Max Power Dissipation (W): 0.4
- Frequency (MHz): 150
- S9018 (NPN General Purpose Transistor)
- Max Gain (hfe): 270
- Collector Current (mA) 50
- C-E Max Voltage (Vceo): 18
- C-B Max Voltage (Vcbo): 25
- E-B Max Voltage (Vebo): 4
- Max Power Dissipation (W): 0.4
- Frequency (MHz): 800
- A1015 (PNP General Purpose Transistor)
- Max Gain (hfe): 400
- Collector Current (mA) -150
- C-E Max Voltage (Vceo): -50
- C-B Max Voltage (Vcbo): -50
- E-B Max Voltage (Vebo): -5
- Max Power Dissipation (W): 0.4
- Frequency (MHz): 80
- C1815 (NPN General Purpose Transistor)
- Max Gain (hfe): 700
- Collector Current (mA) 150
- C-E Max Voltage (Vceo): 50
- C-B Max Voltage (Vcbo): 60
- E-B Max Voltage (Vebo): 5
- Max Power Dissipation (W): 0.4
- Frequency (MHz): 80
- A42 (NPN General Purpose Transistor)
- Max Gain (hfe): 250
- Collector Current (mA) 500
- C-E Max Voltage (Vceo): 300
- C-B Max Voltage (Vcbo): 300
- E-B Max Voltage (Vebo): 5
- Max Power Dissipation (W): 0.625
- Frequency (MHz): 50
- A92 (PNP General Purpose Transistor)
- Max Gain (hfe): 250
- Collector Current (mA) -500
- C-E Max Voltage (Vceo): -300
- C-B Max Voltage (Vcbo): -300
- E-B Max Voltage (Vebo): -5
- Max Power Dissipation (W): 0.625
- Frequency (MHz): 50
- 2N5401 (PNP General Purpose Transistor)
- Max Gain (hfe): 240
- Collector Current (mA) -600
- C-E Max Voltage (Vceo): -150
- C-B Max Voltage (Vcbo): -160
- E-B Max Voltage (Vebo): -5
- Max Power Dissipation (W): 0.625
- Frequency (MHz): 300
- 2N5551 (NPN General Purpose Transistor)
- Max Gain (hfe): 80
- Collector Current (mA) 600
- C-E Max Voltage (Vceo): 160
- C-B Max Voltage (Vcbo): 180
- E-B Max Voltage (Vebo): 6
- Max Power Dissipation (W): 0.625
- Frequency (MHz): 300
- A733 (PNP Epitaxial Silicon Transistor)
- Max Gain (hfe): 600
- Collector Current (mA) -150
- C-E Max Voltage (Vceo): -50
- C-B Max Voltage (Vcbo): -60
- E-B Max Voltage (Vebo): -5
- Max Power Dissipation (W): 0.25
- Frequency (MHz): 180
- C945 (NPN General Purpose Transistor)
- Max Gain (hfe): 700
- Collector Current (mA) 150
- C-E Max Voltage (Vceo): 50
- C-B Max Voltage (Vcbo): 60
- E-B Max Voltage (Vebo): 5
- Max Power Dissipation (W): 0.4
- Frequency (MHz): 200
- S8050 (NPN General Purpose Transistor)
- Max Gain (hfe): 300
- Collector Current (mA) 500
- C-E Max Voltage (Vceo): 25
- C-B Max Voltage (Vcbo): 40
- E-B Max Voltage (Vebo): 5
- Max Power Dissipation (W): 0.625
- Frequency (MHz): 150
- S8550 (PNP General Purpose Transistor)
- Max Gain (hfe): 400
- Collector Current (mA) -500
- C-E Max Voltage (Vceo): -25
- C-B Max Voltage (Vcbo): -40
- E-B Max Voltage (Vebo): -5
- Max Power Dissipation (W): 0.625
- Frequency (MHz): 150
- 2N3906 (PNP General Purpose Transistor)
- Max Gain (hfe): 400
- Collector Current (mA) -200
- C-E Max Voltage (Vceo): -40
- C-B Max Voltage (Vcbo): -40
- E-B Max Voltage (Vebo): -5
- Max Power Dissipation (W): 0.625
- Frequency (MHz): 250
- 2N3904 (NPN General Purpose Transistor)
- Max Gain (hfe): 400
- Collector Current (mA) 200
- C-E Max Voltage (Vceo): 40
- C-B Max Voltage (Vcbo): 60
- E-B Max Voltage (Vebo): 6
- Max Power Dissipation (W): 0.625
- Frequency (MHz): 300
Contents:
- 10 x S9012 Transistor
- 10 x S9103 Transistor
- 10 x S9014 Transistor
- 10 x S9015 Transistor
- 10 x S9018 Transistor
- 10 x A1015 Transistor
- 10 x C1815 Transistor
- 10 x A42 Transistor
- 10 x A92 Transistor
- 10 x 2N5401 Transistor
- 10 x 2N5551 Transistor
- 10 x A733 Transistor
- 10 x C945 Transistor
- 10 x S8050 Transistor
- 10 x S8550 Transistor
- 10 x 2N3906 Transistor
- 10 x 2N3904 Transistor
