USB Adjustable DC-DC Power Supply Module (1.2V-24V) XY-UP

35 people have recently viewed this product!

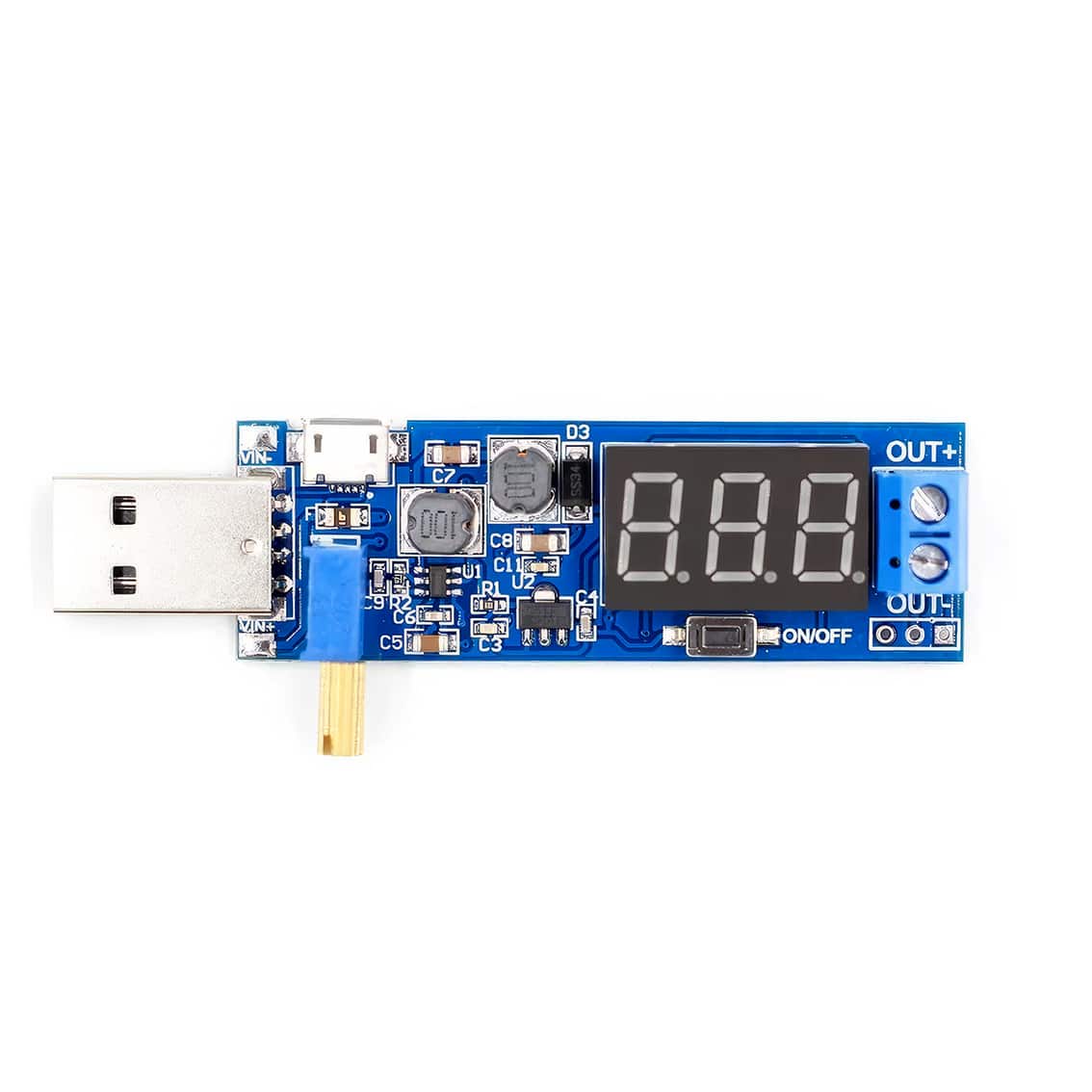

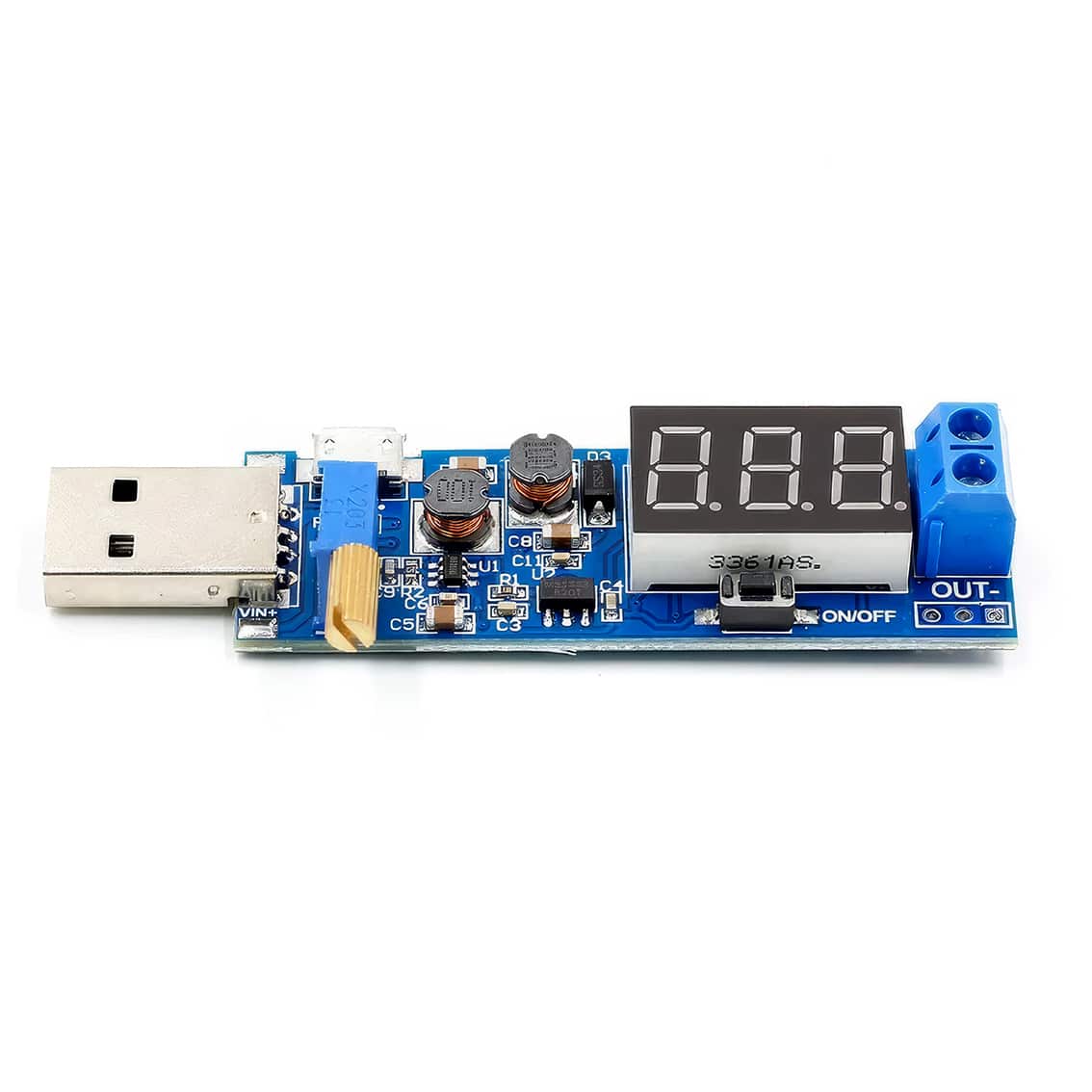

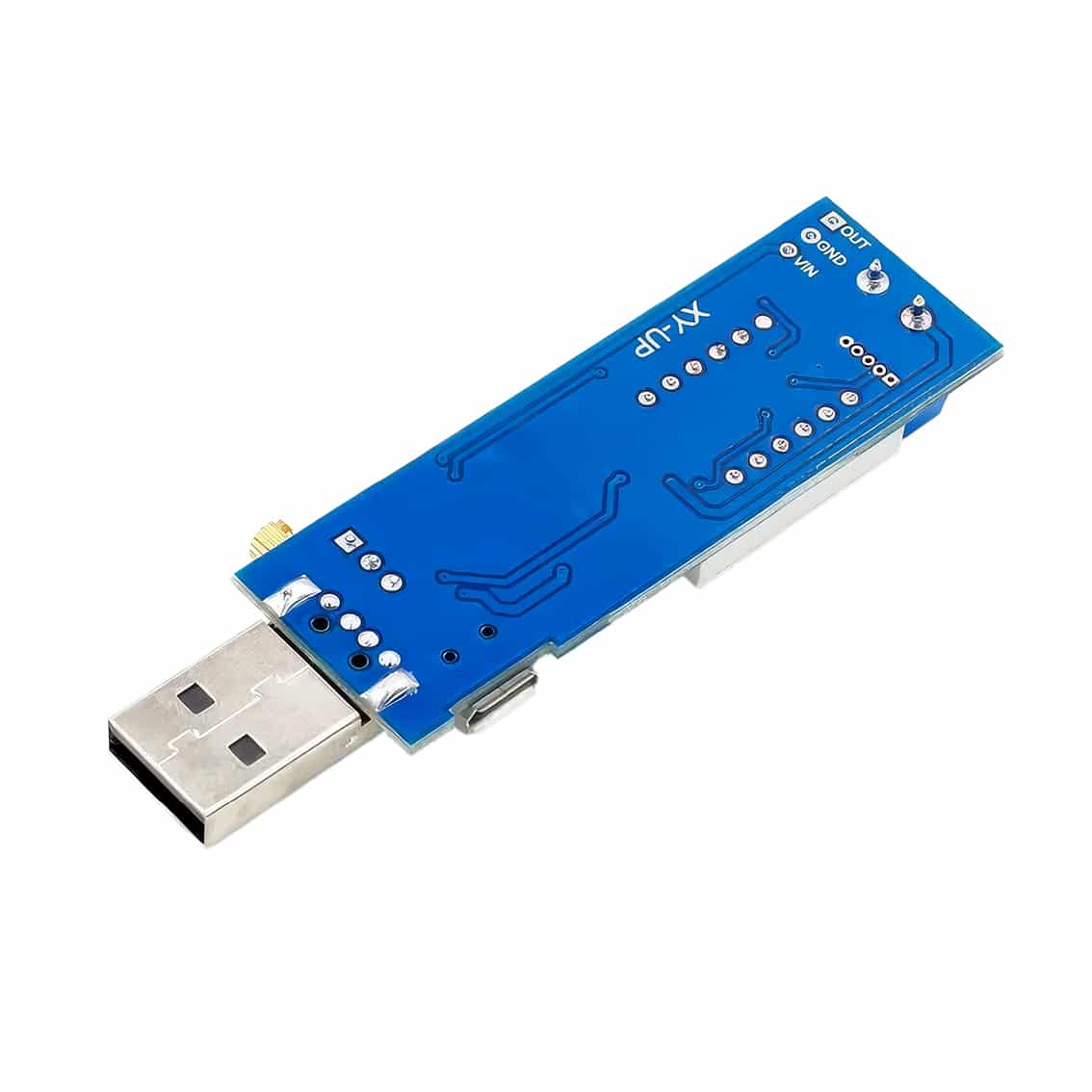

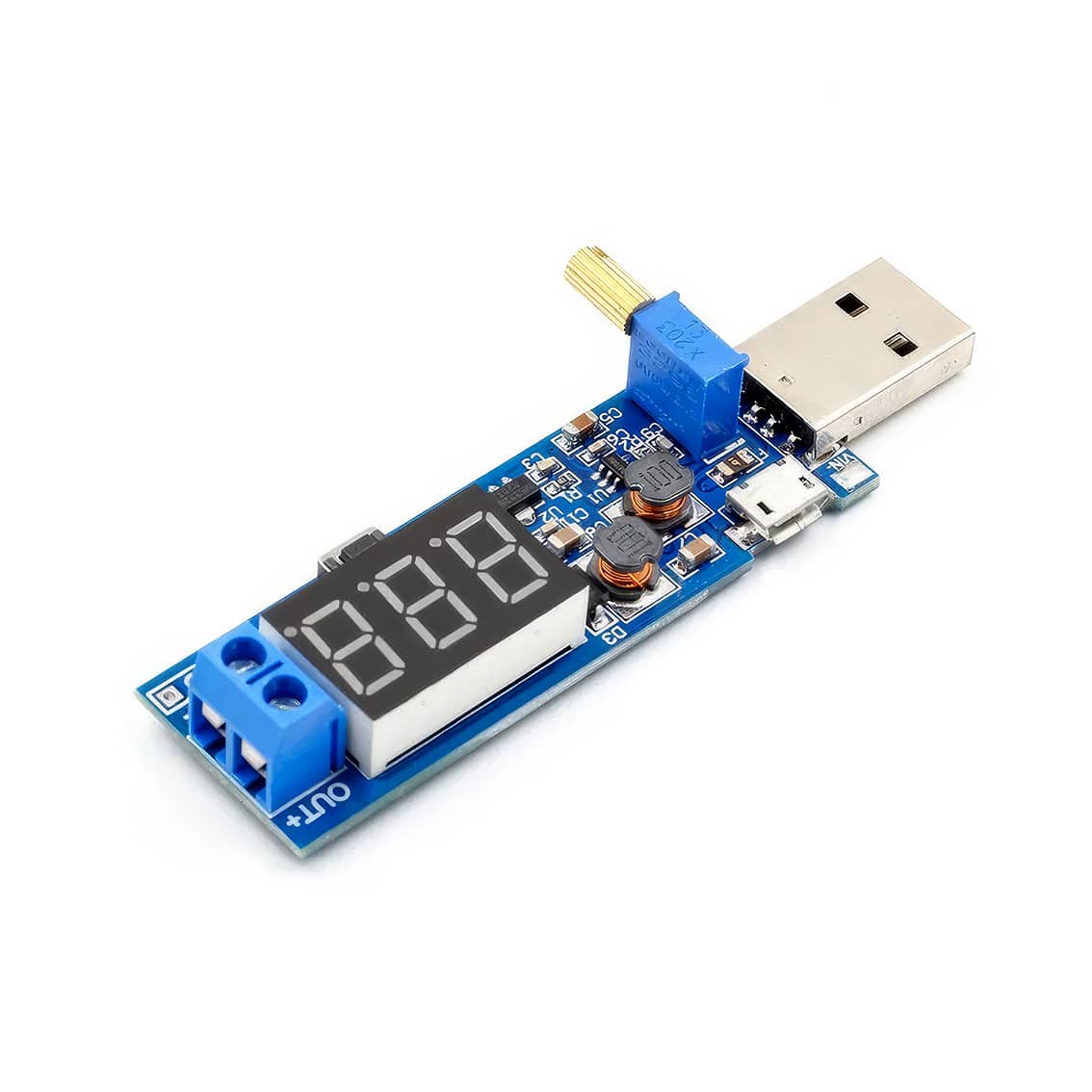

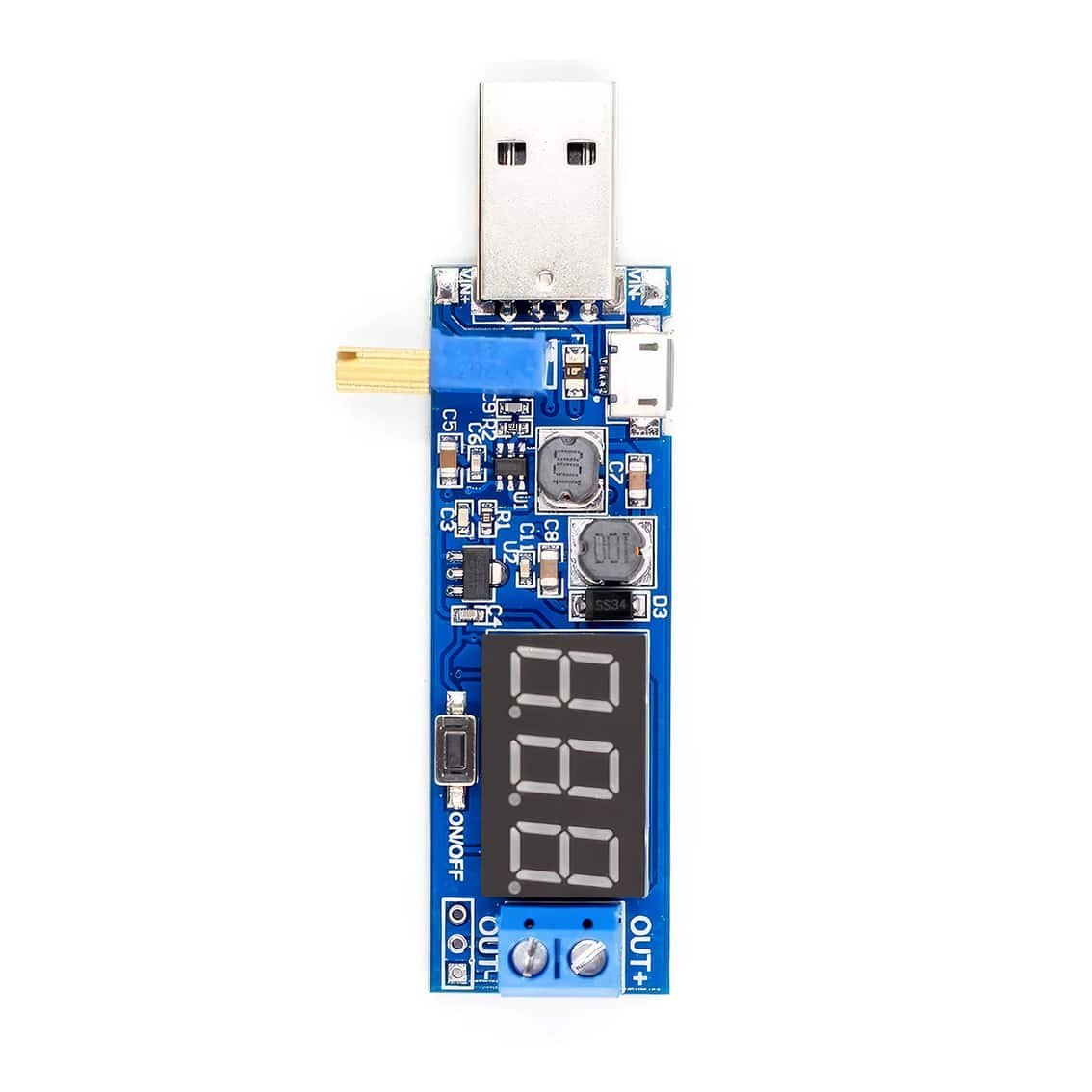

USB Adjustable DC-DC Power Supply Module (1.2V-24V) XY-UP

The USB Adjustable DC-DC Power Supply Module (1.2V-24V) XY-UP is a compact, efficient, and versatile power conversion tool, ideal for various electronic applications. With its adjustable output voltage and digital display, it provides precise control and flexibility for powering different projects.

$15.95

Order Within –

Availability: 28 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003234

Description:

The USB Adjustable DC-DC Power Supply Module (1.2V-24V) XY-UP is a versatile and efficient power conversion tool designed for various electronic projects. This module allows seamless conversion from DC 5V to a wide range of voltages, making it suitable for applications such as battery charging, LED driving, and circuit testing. It is powered by USB and features an adjustable potentiometer to easily set the desired output voltage.

This power supply module supports both standard USB and Micro USB inputs, along with additional pad inputs for increased flexibility. With a compact design and multiple safety features, it is an ideal choice for hobbyists and professionals looking for reliable power management solutions. The digital display screen provides real-time voltage output, ensuring precise control over your projects.

Specifications:

  • Input Voltage: DC 3.5-12V
  • Output Voltage: DC 1.2-24V
  • Output Power:
    • Input 1.2-2V: within 2W
    • Input 2-20V: within 3W
    • Input 20-24V: within 2.5W
  • Display: 3-bit digital tube display
  • Size: 80 x 20 x 14 mm

Features:

  • One button to turn off the output
  • ON/OFF display screen
  • Supports low power and sleep modes
  • Adjustable potentiometer with rotating handle
  • Compatible with standard USB, Micro USB, and pad input voltage
  • Suitable for power supply, battery charging, LED driving, and circuit testing

Contents:

  • 1x XY-UP USB boost/buck power supply module
Weight 0.016 kg
Dimensions 120 × 60 × 10 mm
Brand

Type

Power Module Type

Output Type

Input Voltage

Output Voltage

Maximum Output Power

, ,

Power Module Attributes

, , , ,

Connection Type

Colour
