Electronics Essentials: Understanding Resistance and Resistors

Contents

Introduction:

In this article, we will discuss what resistance is, what resistors are and how to read a resistors colour code. This is the first of several posts that will tackle basic electronics concepts and components. By the end of this post, you will know how to calculate a resistor value, and answer some fundamental questions such as: What is resistance, What are resistors and How do you calculate the tolerance of a resistor.



What is Resistance?

Resistance is defined as “the opposition offered by a body or substance to the passage through it of a steady electric current” (source: Merriam Webster Dictionary). It is a characteristic of an object to oppose the flow of current going through it.

All objects have resistance. Objects that have high resistance are usually used as insulators and those that have low resistance are often used as conductors. An insulator can be a conductor if the current is high enough.

Resistance is expressed by the unit “Ohms” which was named after Georg Simon Ohm who discovered Ohm’s Law.



What are Resistors?

Resistors are passive electrical components that have fixed, known resistance. They are used in electronic circuits to introduce resistance in a part of the circuit. The roles of resistors vary depending on the circuit, they can function as dummy loads, a limiter to control the amount of current flowing in a circuit branch, for power dissipation, etc.

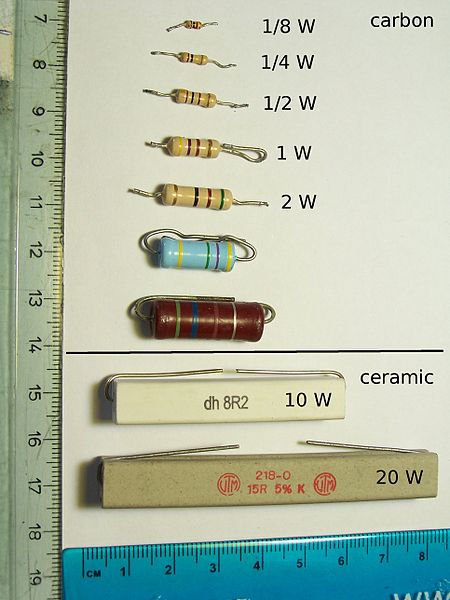

Resistors come in different sizes depending on their power rating and material used. The most common appearance of resistors is shown below.

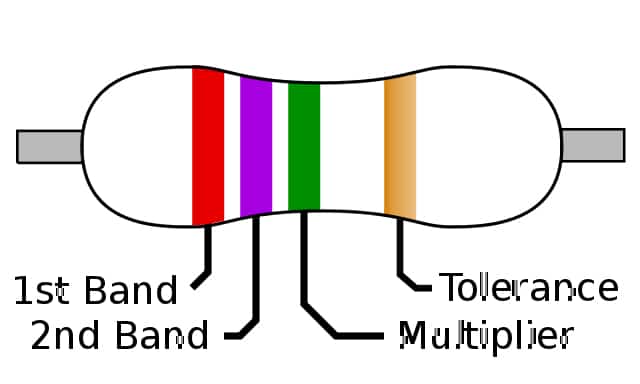

For resistors with big bodies, their values are written on the resistor itself. But for resistors that are small in size, are marked using a colour band system to indicate their resistance. Below is a sample of a resistor with 4-bands.

Calculating a Resistors Value:

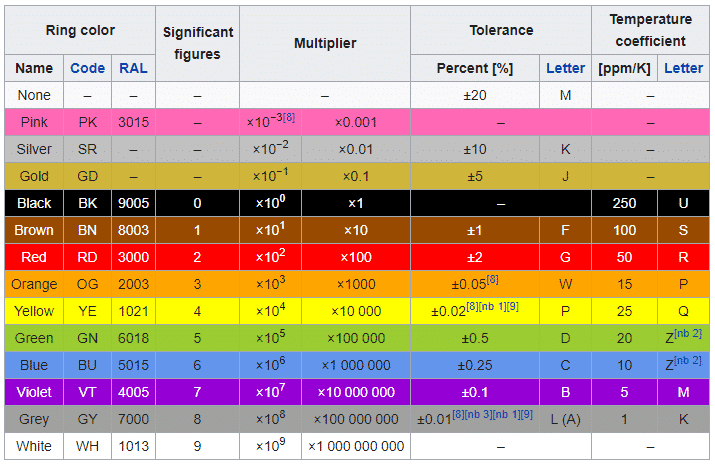

To interpret the colours, we refer to a resistor colour code table as shown below.

We read the resistor colour bands by starting from the left. The first band is the first digit of the resistor’s value, the second band is the second digit of the resistor’s value, the third band is the Multiplier and the fourth band is the tolerance.

So in our example, the colour bands will be interpreted as:

  • First band: RED = 2
  • Second band: VIOLET = 7
  • Third band: GREEN = x105
  • Fourth band: GOLD = +/- 5%

Using the values above, our resistor is 2,700,000 ohms or 2.7M ohms (Mega ohms) with a tolerance of +/-5%. The tolerance means that if we try to measure the actual resistance of the resistor, it should be between 2.565M~ 2.835M ohms.

How do you Calculate the Tolerance of a Resistor?

Though it is mentioned above, calculating the tolerance of a resistor is a common question which we felt should have its own sub-heading.

The tolerance of a resistor is represented by the 4th coloured band, the tolerance is +/- of the value of the resistor. The tolerance band values are:

  • No Band: +/- 20%
  • Silver: +/- 10%
  • Gold: +/- 5%
  • Brown: +/- 1%
  • Red: +/- 2%
  • Orange: +/- 0.05%
  • Yellow: +/- 0.02%
  • Green: +/- 0.5%
  • Blue: +/- 0.25%
  • Violet: +/- 0.1%
  • Grey: +/- 0.01%

Sample Tolerance Calculation:

If we have a 100 Ω resistor with a Gold tolerance band (4th band), we know by referring to above a gold tolerance band is +/- 5% tolerance, the calculation would be:

100 Ω x 5% = 5 Ω

As the tolerance is + / -, this means the value of the resistor can range from 95 Ω to 105 Ω.



Conclusion:

Resistors are one of the basic building blocks of electronics. In this post, you have learnt about resistance, resistors and how to read resistor colour codes.
