Description:

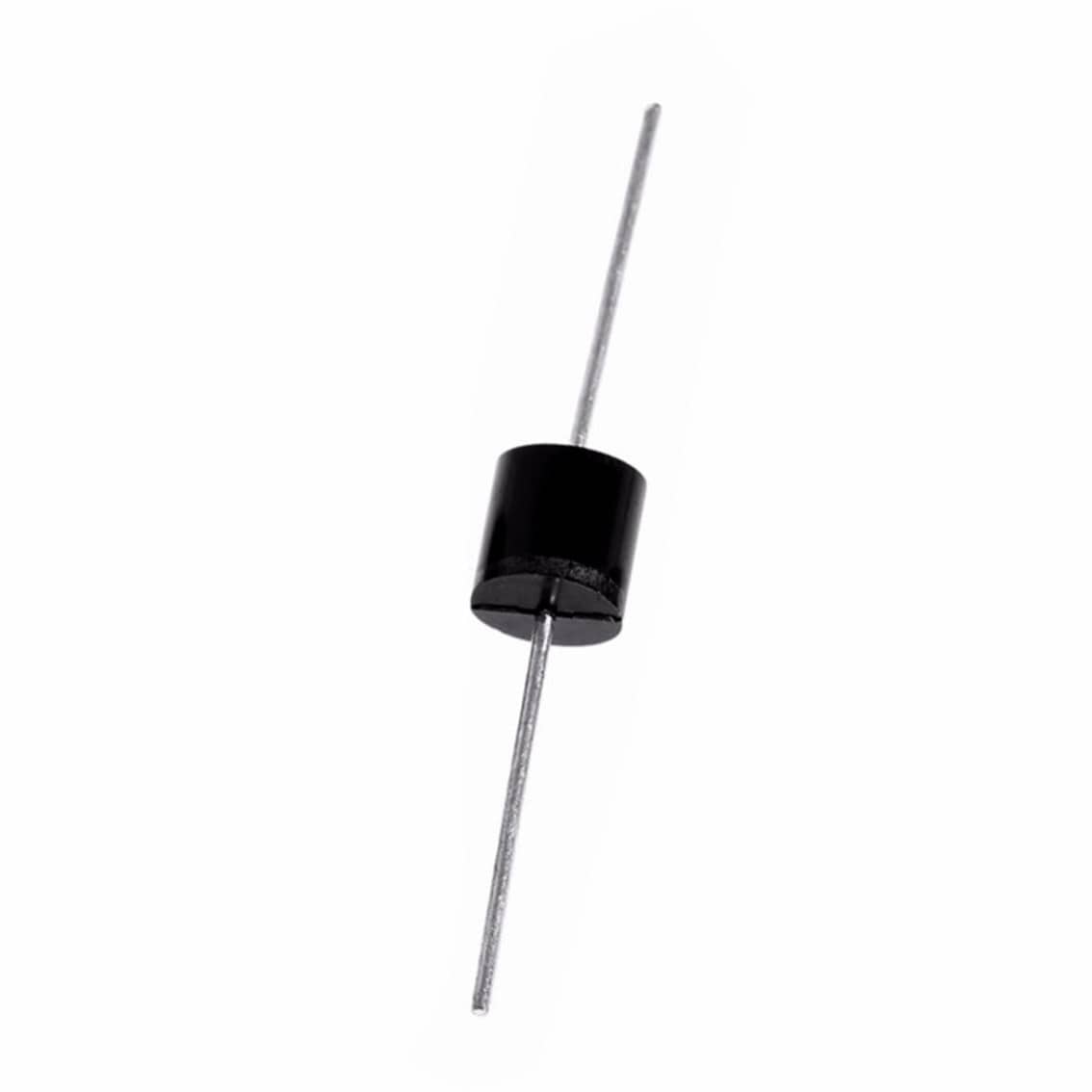

The 10A10 1000V 10A rectifier diode pack of 15 offers a robust solution for high-current rectification in power supply, battery charger, and industrial control applications. With a high voltage rating of 1000V and a forward current capability of 10A, these diodes are ideal for AC to DC conversion tasks, especially in high-load circuits. Packaged in a standard axial-lead DO-15 form factor, they provide excellent thermal conductivity and are easily solderable into PCBs or breadboards.
This bulk 10A10 rectifier diode pack is perfect for makers, repair technicians, and engineers working on power electronics or maintenance projects. These diodes feature low forward voltage drop and high surge current capability, ensuring reliable operation in demanding environments. Whether you’re assembling a switching power supply, building a rectifier bridge, or repairing a UPS system, this 10A10 1000V 10A rectifier diode pack of 15 ensures long-term reliability and consistent performance.
Specifications:
- Diode Type: General Purpose Rectifier
- Model: 10A10
- Repetitive Peak Reverse Voltage (VRRM): 1000V
- Average Forward Current (IF(AV)): 10A
- Surge Forward Current (IFSM): 300A (8.3ms single half sine-wave)
- Forward Voltage Drop (VF): 1.1V @ 10A
- Reverse Recovery Time: 2μs (typical)
- Package Type: DO-15 Axial Lead
- Operating Temperature Range: -65°C to +150°C
- Lead-Free and RoHS Compliant: Yes
Features:
- High current and high voltage capacity ideal for power conversion
- Standard axial-lead DO-15 package for easy mounting and soldering
- Low forward voltage drop for improved efficiency
- 300A surge current rating handles inrush loads with ease
- Bulk pack of 15 suitable for prototyping or repair stock
Contents:
- 15 x 10A10 1000V 10A Rectifier Diodes (Axial Lead)
