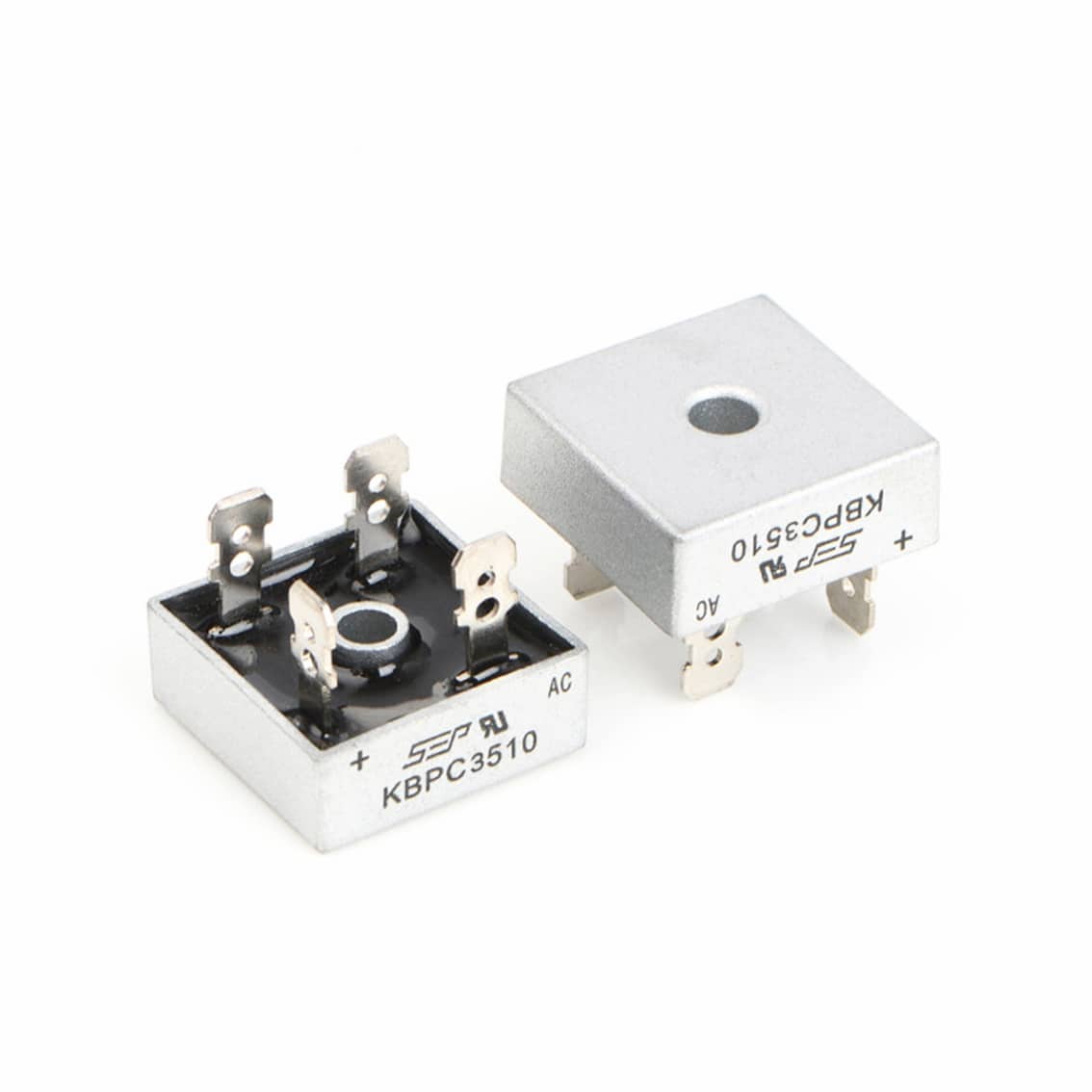

KBPC3510 1000V 35A Bridge Rectifier Diode – Pack of 10

39 people have recently viewed this product!

KBPC3510 1000V 35A Bridge Rectifier Diode – Pack of 10

The KBPC3510 is a bridge rectifier diode, which is an electronic component that converts alternating current (AC) to direct current (DC). Specifically, the KBPC3510 is a single-phase bridge rectifier with a maximum current rating of 35 amps and a peak inverse voltage rating of 1000 volts.

$29.95

Order Within –

Availability: 28 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003188

Description:

The KBPC3510 is a bridge rectifier diode, which is an electronic component that converts alternating current (AC) to direct current (DC). Specifically, the KBPC3510 is a single-phase bridge rectifier with a maximum current rating of 35 amps and a peak inverse voltage rating of 1000 volts.

The KBPC2510 bridge rectifier diode is typically used in power supply circuits, motor control circuits, and other applications where AC needs to be converted to DC.



Specifications:

    • Forward Current If(AV): 35A
    • Forward Voltage VF Max: 1.2V
    • Max Operating Temperature: 150°C
    • Surge overload: -240-500A peaks
    • Size: 29mm x 29mm x 11mm



Contents:

    • 10 x KBPC3510 1000V 35A Bridge Rectifier Diode
Brand

Diode Type

Maximum Current

Maximum Reverse Voltage

Maximum Forward Voltage

Peak Surge Current

Diode Attributes

Mounting Type

Package / Case

Operating Temperature
