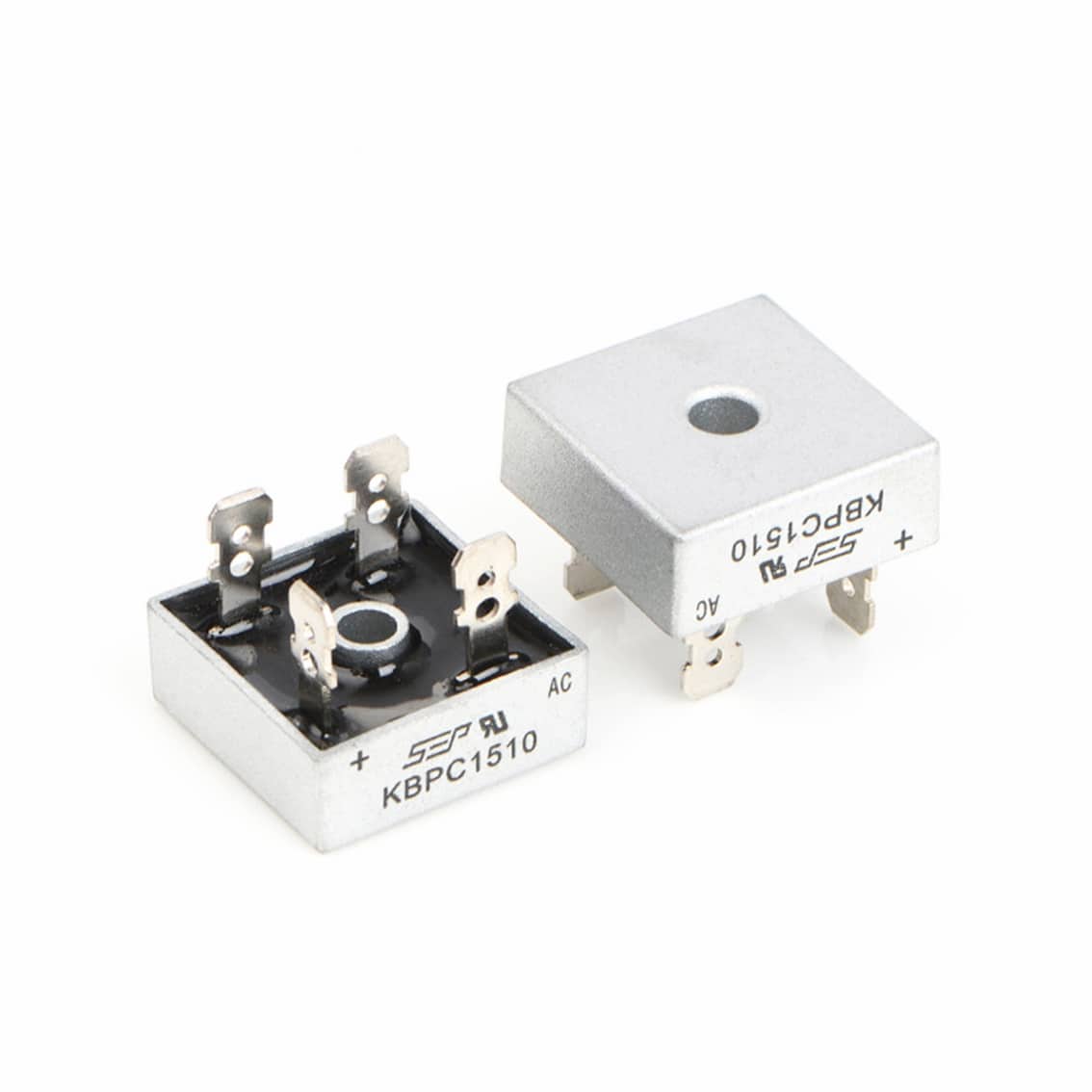

KBPC1510 1000V 15A Bridge Rectifier Diode – Pack of 10

20 people have recently viewed this product!

KBPC1510 1000V 15A Bridge Rectifier Diode – Pack of 10

The KBPC1510 is a bridge rectifier diode, which is an electronic component that converts alternating current (AC) to direct current (DC). Specifically, the KBPC1510 is a single-phase bridge rectifier with a maximum current rating of 15 amps and a peak inverse voltage rating of 1000 volts.

$27.95

Order Within –

Availability: 30 in stock

All stock is located in Australia.

FREE SHIPPING available in Australia.

EXPRESS SHIPPING Available.

SKU: PHI1003186

Description:

The KBPC1510 is a bridge rectifier diode, which is an electronic component that converts alternating current (AC) to direct current (DC). Specifically, the KBPC1510 is a single-phase bridge rectifier with a maximum current rating of 15 amps and a peak inverse voltage rating of 1000 volts.

The KBPC1510 bridge rectifier diode is typically used in power supply circuits, motor control circuits, and other applications where AC needs to be converted to DC.



Specifications:

    • Forward Current If(AV): 15A
    • Forward Voltage VF Max: 1.2V
    • Max Operating Temperature: 150°C
    • Surge overload: -240-500A peaks
    • Size: 29mm x 29mm x 11mm



Contents:

    • 10 x KBPC1510 1000V 15A Bridge Rectifier Diode
Weight 0.182 kg
Dimensions 130 × 90 × 30 mm
Diode Type

Max Cont Forward Current

15A

Maximum Reverse Voltage

Maximum Forward Voltage

Peak Surge Current

Diode Attributes

Mounting Type

Package / Case

Operating Temperature
