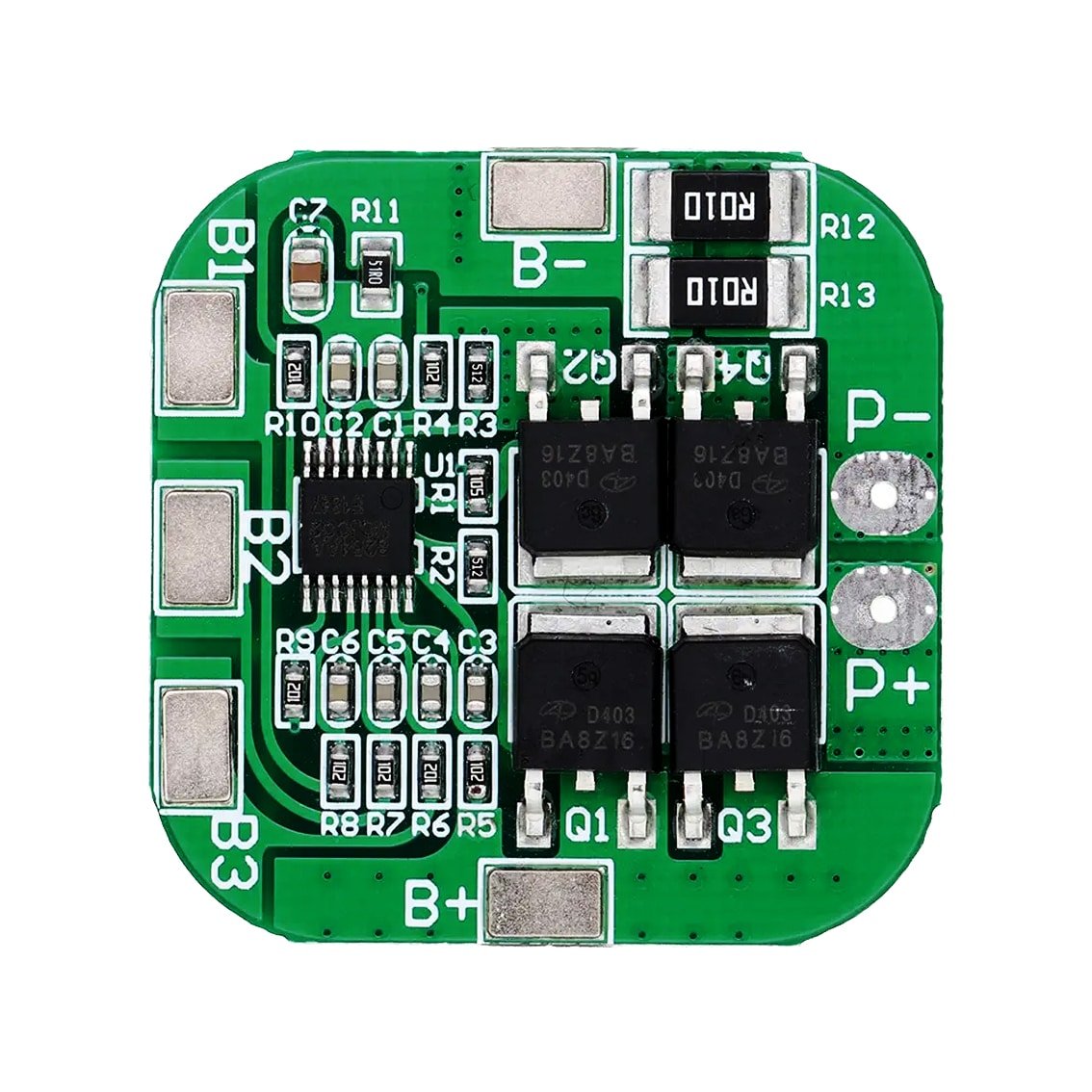

4S Lithium Battery Protection BMS PCM Board – 14.8V 16.8V 20A

26 people have recently viewed this product!

4S Lithium Battery Protection BMS PCM Board – 14.8V 16.8V 20A

This BMS Board protects 4 lithium batteries connected in series from overcharging, over-discharging, overcurrent, and short-circuit.

$12.95

Order Within –

Availability: 66 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002227

Description:

This BMS Board protects 4 lithium batteries connected in series from overcharging, over-discharging, overcurrent, and short-circuit.

14.8V battery pack rated voltage, 16.8V battery pack full charge voltage, 14.4V battery pack rated voltage.

This board is not designed for high powered tools such as portable drills and alike.



Features:

  • Accurate voltage detection
  • Three stages over-current detection circuit (over-current 1, over-current 2, or load short circuit)
  • MOS transistor can control battery charge and discharge
  • Low standby current



Specifications:

  • Working current: 10A (Maximum)
  • Peak current: 20A (Maximum)
  • Overcharge voltage: 4.25V – 4.35V +/- 0.05V
  • Over discharge voltage: 2.3V – 3.0V +/- 0.05V
  • Operating temperature: -40C – 80C
  • Dimensions: 35.5mm x 35.5mm



Contents:

  • 1 x 4S Lithium Battery Protection BMS PCM Board
Weight 0.004 kg
Dimensions 90 × 3 × 60 mm
