Description:

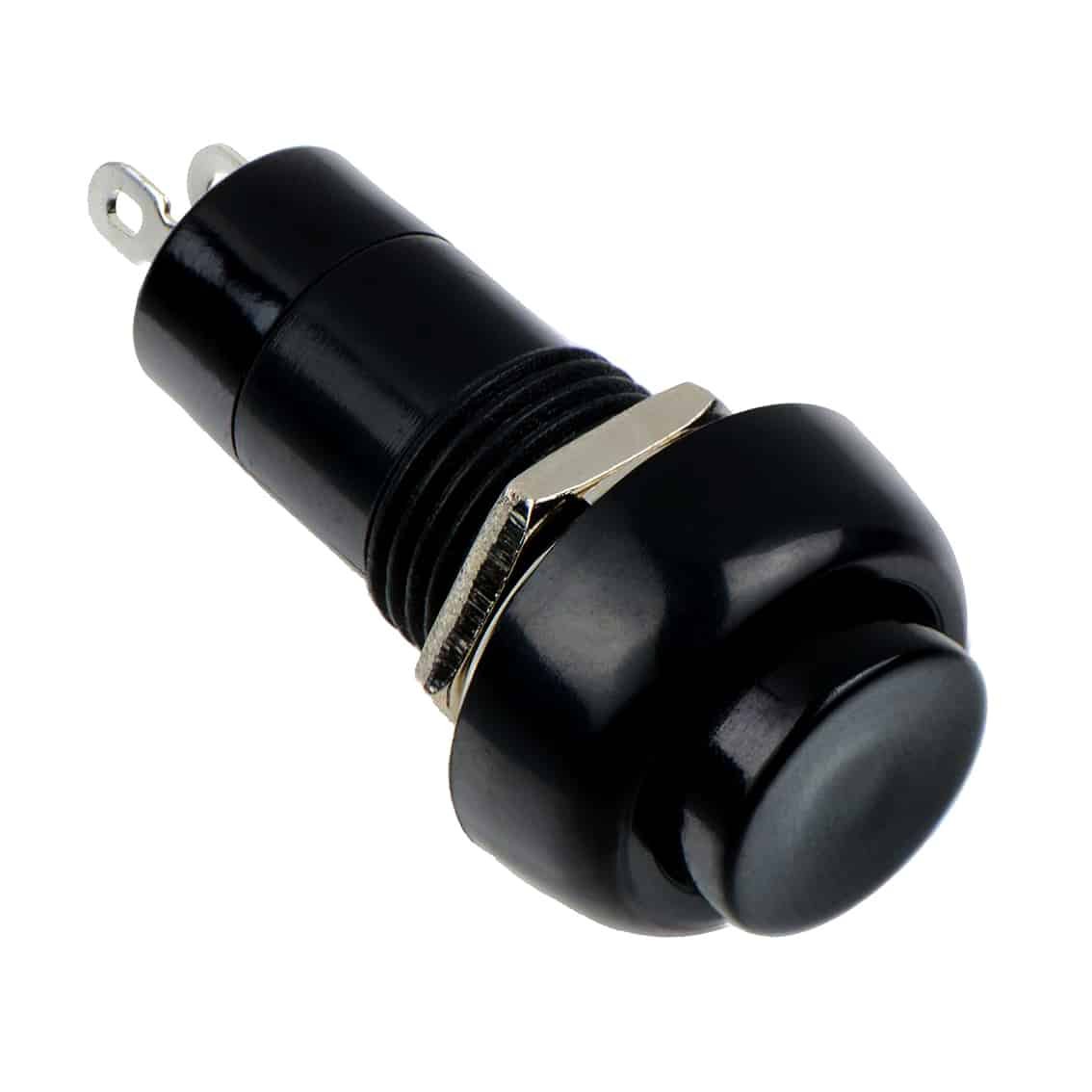

The Black Momentary Push Button Switch PBS-11 is versatile and durable for various applications. This momentary push button switch activates only while pressed, making it ideal for control circuits, electronic devices, and machinery. Featuring a 12mm diameter button, it is easy to mount and install in different settings. The black colour ensures a sleek and professional appearance.
Made from high-quality materials, the PBS-11 switch guarantees reliable performance and long-lasting durability. It operates efficiently under different environmental conditions, ensuring stable and consistent functionality. Available in a pack of 5, this switch set offers an economical solution for projects requiring multiple momentary switches.
Specifications:
- Model: PBS-11B
- Action Type: Momentary
- Contact Type: Normally Open (NO)
- Voltage Rating: AC 250V, 3A
- Button Diameter: 12mm
- Mounting Hole Diameter: 12mm
- Terminals: 2 pins
- Contact Resistance: 50mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: 2000Vac, 50Hz for 1 min
- Mechanical Life: 200,000 cycles
- Electrical Life: 50,000 cycles
- IP Rating: IP40
- Operating Temperature: -25°C to 55°C
- Operating Humidity: 45% to 85% RH
Features:
- High-quality, environmentally friendly materials
- Easy installation with 12mm mounting diameter
- Durable with a long operational life
- Provides a momentary switch action
- Suitable for a wide range of applications
Contents:
- 5 x Black Momentary Push Button Switch PBS-11
