Description:

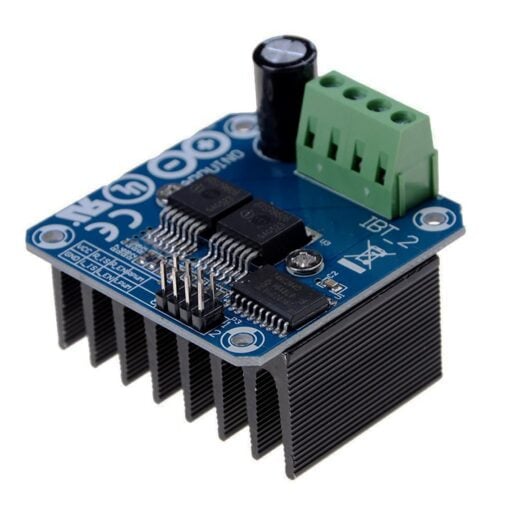

The BTS7960 43A Double DC Stepper Motor Driver H-Bridge PWM is a powerful and versatile motor control module designed to handle high-current applications with ease. Capable of supporting up to 43A continuous current and operating within a voltage range of 6V to 27V, it is suitable for driving DC and stepper motors in robotics, industrial automation, and electric vehicle projects. The dual BTS7960 H-bridge drivers enable precise control of motor speed and direction through PWM signals with a frequency of up to 25 kHz. This allows for smooth and responsive operation in even the most demanding applications.
Engineered for reliability and safety, the module includes multiple protection features such as overvoltage, undervoltage, overcurrent, short-circuit, and overtemperature safeguards. Its isolation between the motor driver and the microcontroller ensures secure operation and protects sensitive components from electrical interference. Compact and efficient, the BTS7960 motor driver module is an ideal choice for those seeking a robust and high-performance solution for motor control.
Specifications:
- Input Voltage: 6V to 27V
- Maximum Continuous Current: 43A
- PWM Frequency: Up to 25 kHz
- Control Input Voltage: 3.3V to 5V
- Control Mode: PWM or Level
- Duty Cycle: 0% to 100%
- Board Dimensions: 50mm x 50mm x 43mm
- Weight: Approximately 66g
Features:
- Dual BTS7960 H-bridge driver configuration
- 5V isolation with MCU for enhanced protection
- On-board 5V power indicator
- Motor driver output voltage indication
- Support for soldering an additional heat sink
- Overvoltage lockout and undervoltage shutdown
- Overtemperature protection with latch behaviour
- Current limitation and short-circuit protection
- Adjustable slew rates for optimised EMI performance
Contents:
- 1 x BTS7960 43A Double DC Stepper Motor Driver H-Bridge PWM Module
