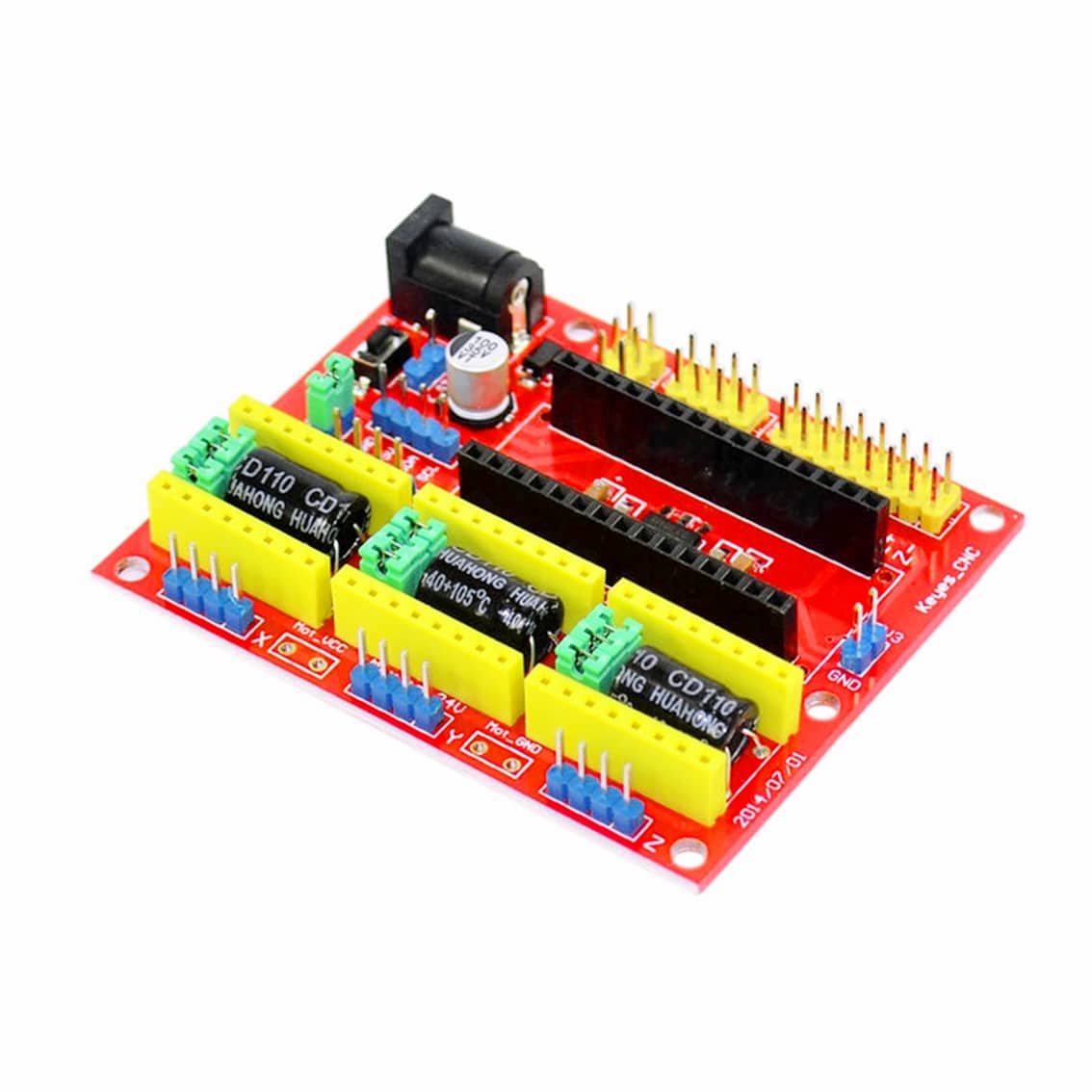

CNC Expansion Shield for Arduino – V4.0

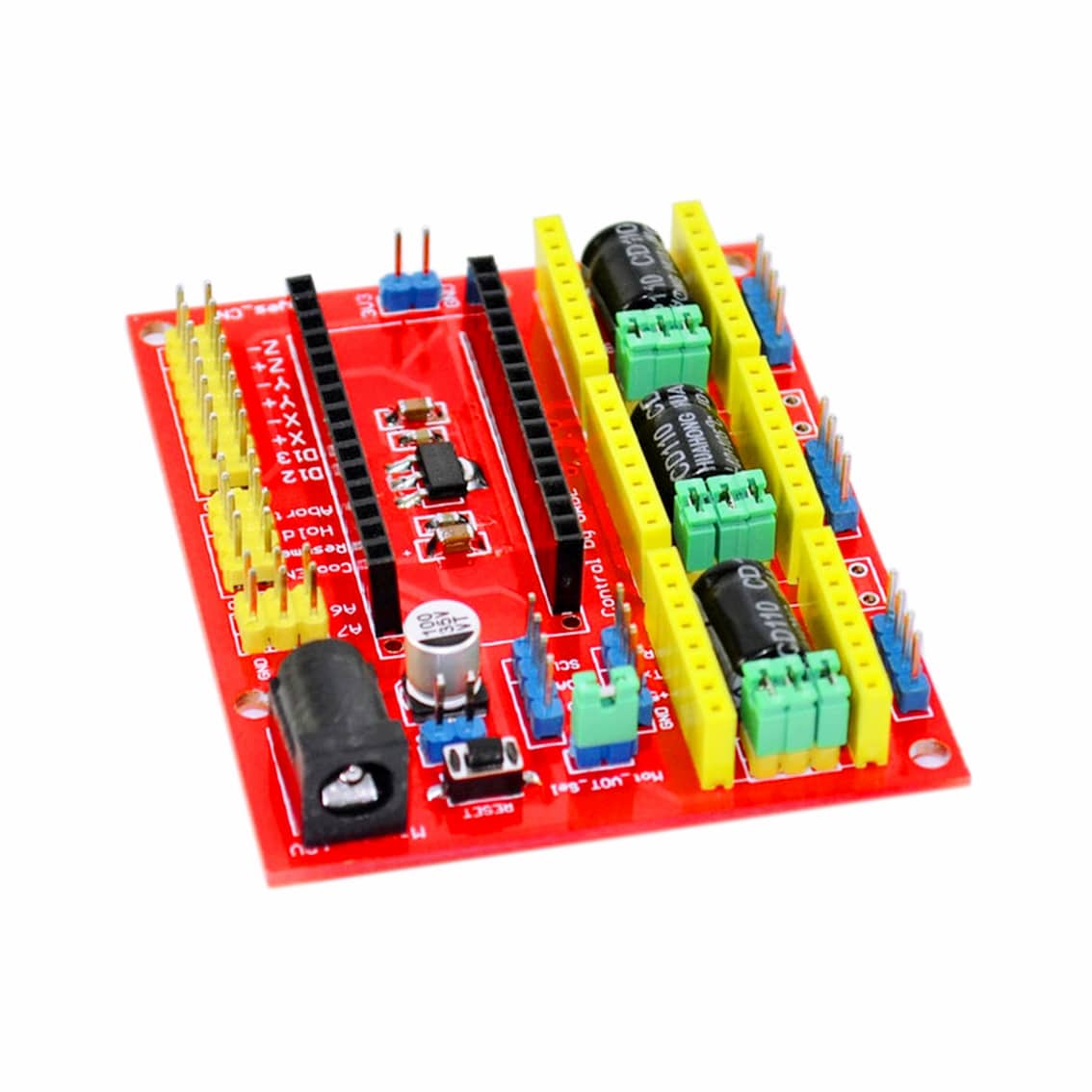

  • PHI1012030 – CNC Expansion Shield for Arduino – V4.0 02
  • PHI1012030 – CNC Expansion Shield for Arduino – V4.0 02

Description

This Arduino CNC Shield is designed for the control of 3D printers, milling and engraving machines. read more
SKU:
PHI1012030
Category:
Tags:
,
Brand:

Type:

Compatible Brand:

,

Price

$15.95

Quantity

- +

Total

$15.95

0 reviews

23 in stock

- +

Description

This Arduino CNC Shield is designed for the control of 3D printers, milling and engraving machines.

Version 4 of this shield is more compact than its previous version, with room to fit a Nano development board. With 3 sockets for stepper motor drivers such as the A4988 and only requiring 2 channels per motor for control as well as a connection for 2 end-stop switches per motor.

Specifications

  • Input voltage: 5V, 7.5V – 12V
  • 3-Axis support
  • Digital IO interface
  • Max motor current: 2A 2phase 4 wire stepper motor
  • Stepper motors over 1A need to use a heat sink and/or external cooling such as fan
  • Dimensions: 68mm x 53mm x 18mm

Contents

  • 1 x CNC Expansion Shield for Arduino – V4.0
