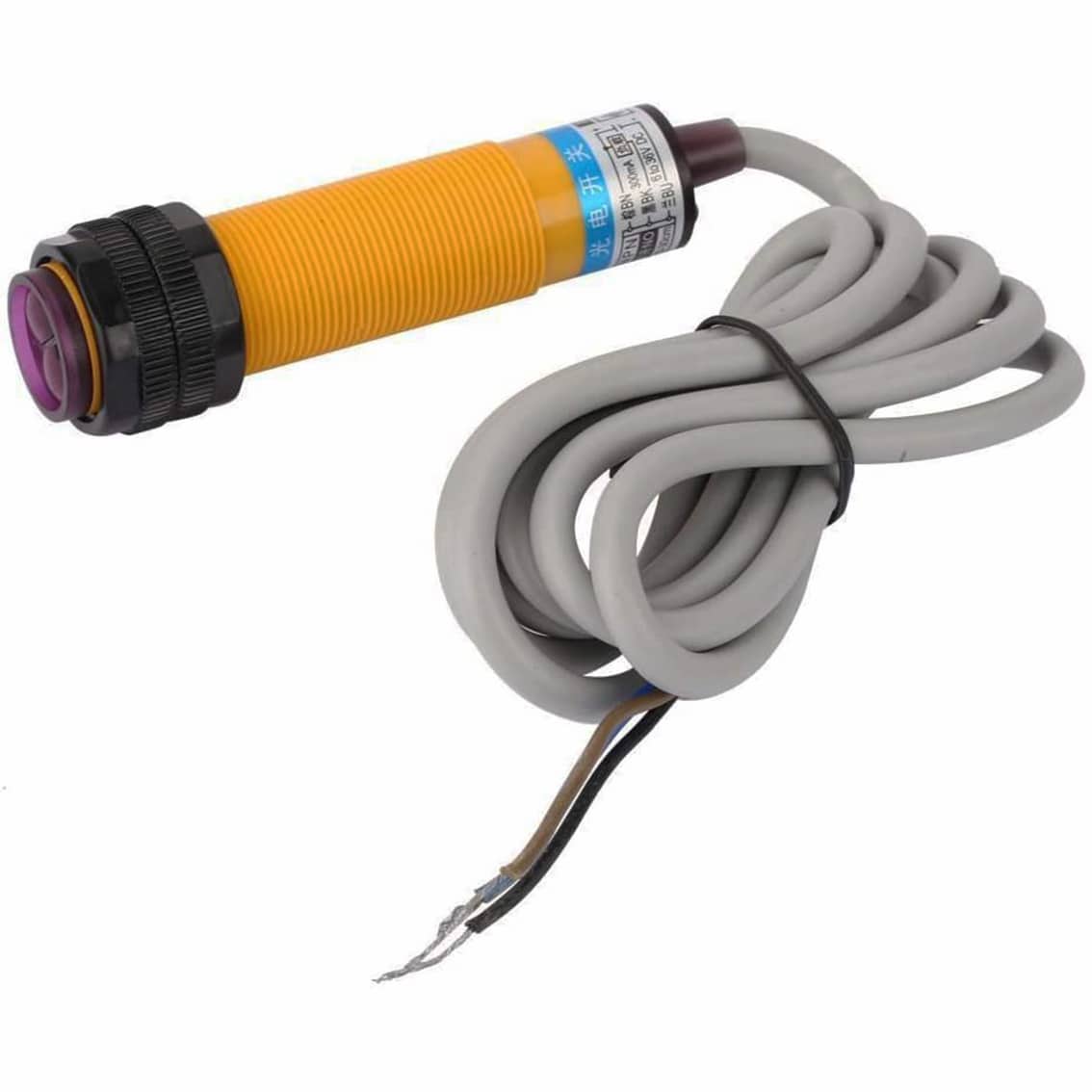

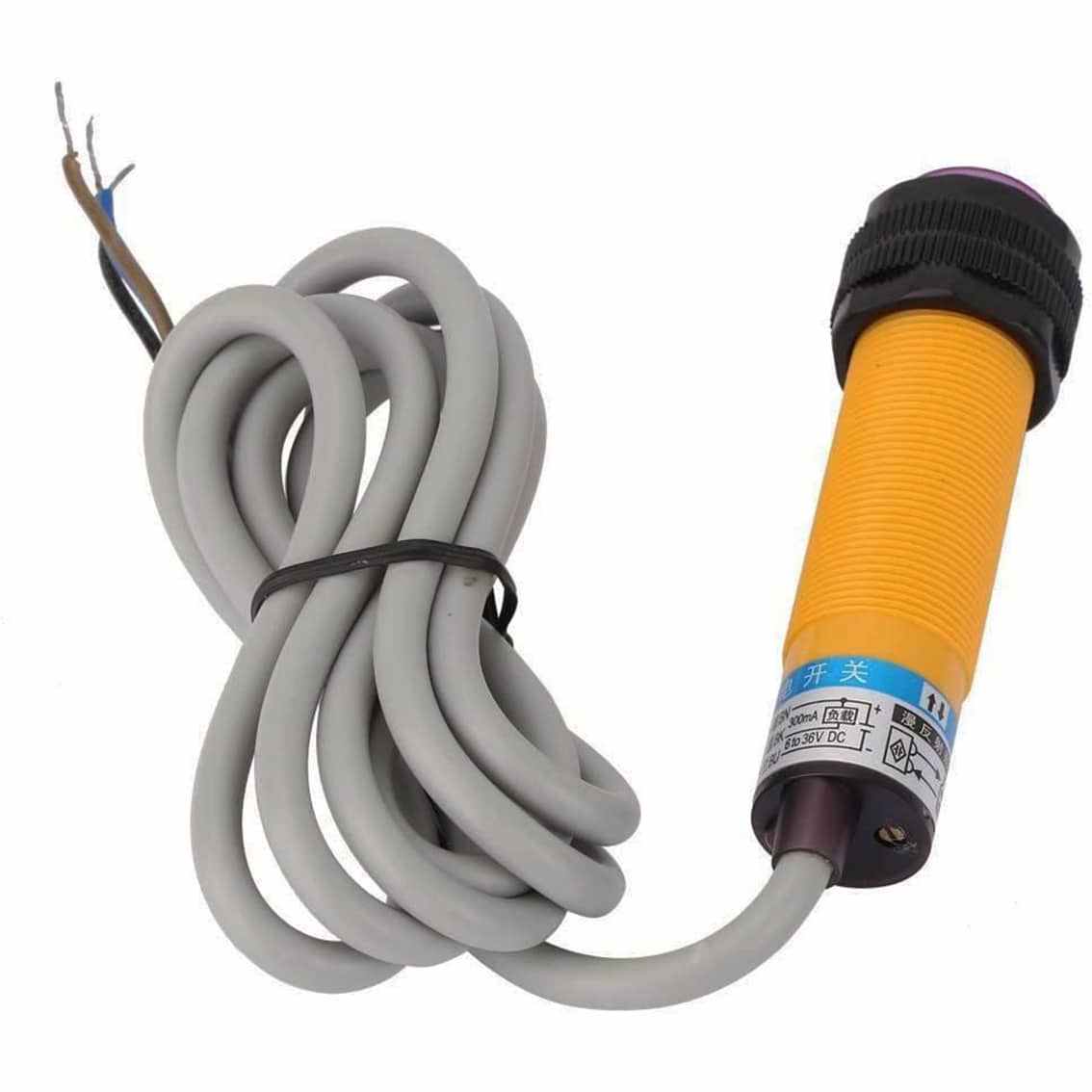

E3F-DS30C4 NPN Photoelectric Proximity Switch Sensor – Normally Open

Sale!
43 people have recently viewed this product!

E3F-DS30C4 NPN Photoelectric Proximity Switch Sensor – Normally Open

This E3F-DS30C4 is an NPN Photoelectric sensor used to detect, control, and non-contact switching purposes.

Original price was: $17.95.Current price is: $16.95.

Order Within –

Availability: 37 in stock

All stock located in Australia.

Minus Quantity- Plus Quantity+

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002898

You May Also Like...

Description:

This E3F-DS30C4 is an NPN Photoelectric sensor used to detect, control, and non-contact switching purposes.
The ESF-DS30C4 is a normally open switch with a barrel diameter of 18mm and cable length of approx. 100cm.

Note, the cable colour may vary between black and grey depending on supply stock at the time.



Specifications:

    • Supply Voltage: 6 – 36 V DC
    • Detecting Distance: 50 – 300 mm
    • Output Current: 300mA
    • Response Frequency: 300Hz
    • Head Diameter: 18mm
    • Cable Length: ~100cm
    • Module Length: 70mm
    • Type: NPN
    • Sensing Method: Diffuse Reflective
    • Light Source: Infrared LED
    • IP Rating: IP67
    • Operating Temperature: -30 – 65°C



Contents:

      • 1 x E3F-DS30C4 NPN Photoelectric Proximity Switch Sensor – Normally Open
