Inductive Proximity NPN Sensor – LJ18A3-8-Z/BY

52 people have recently viewed this product!

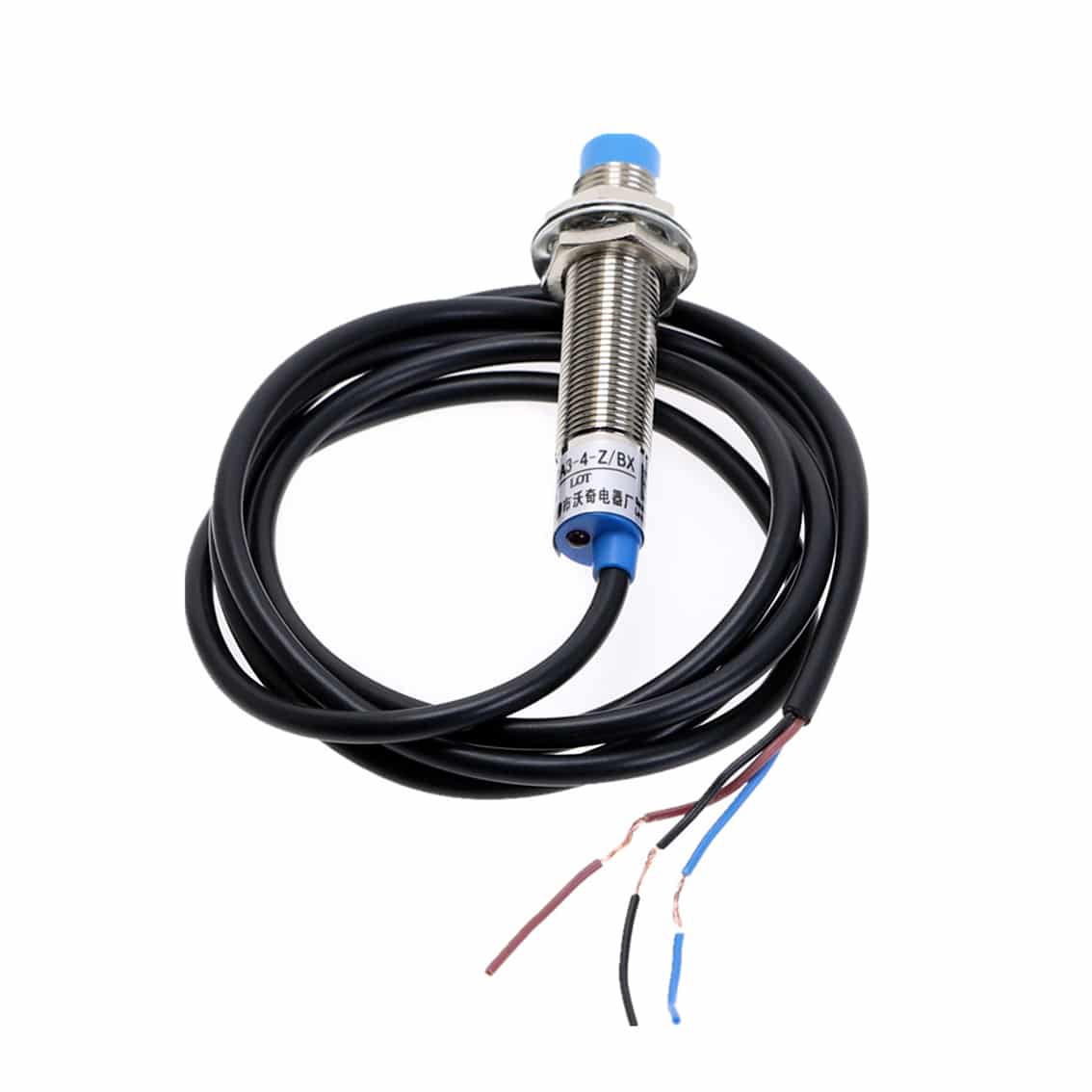

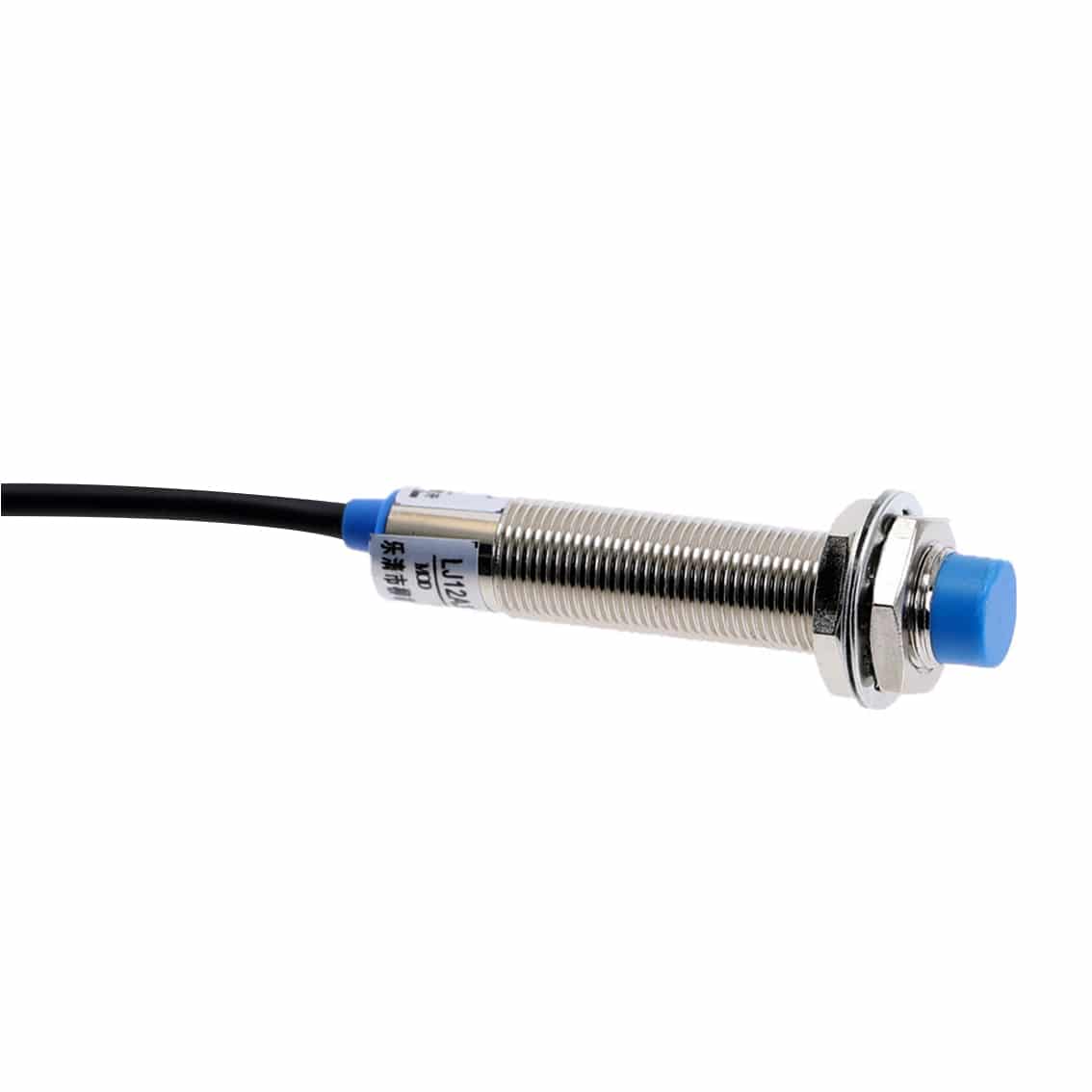

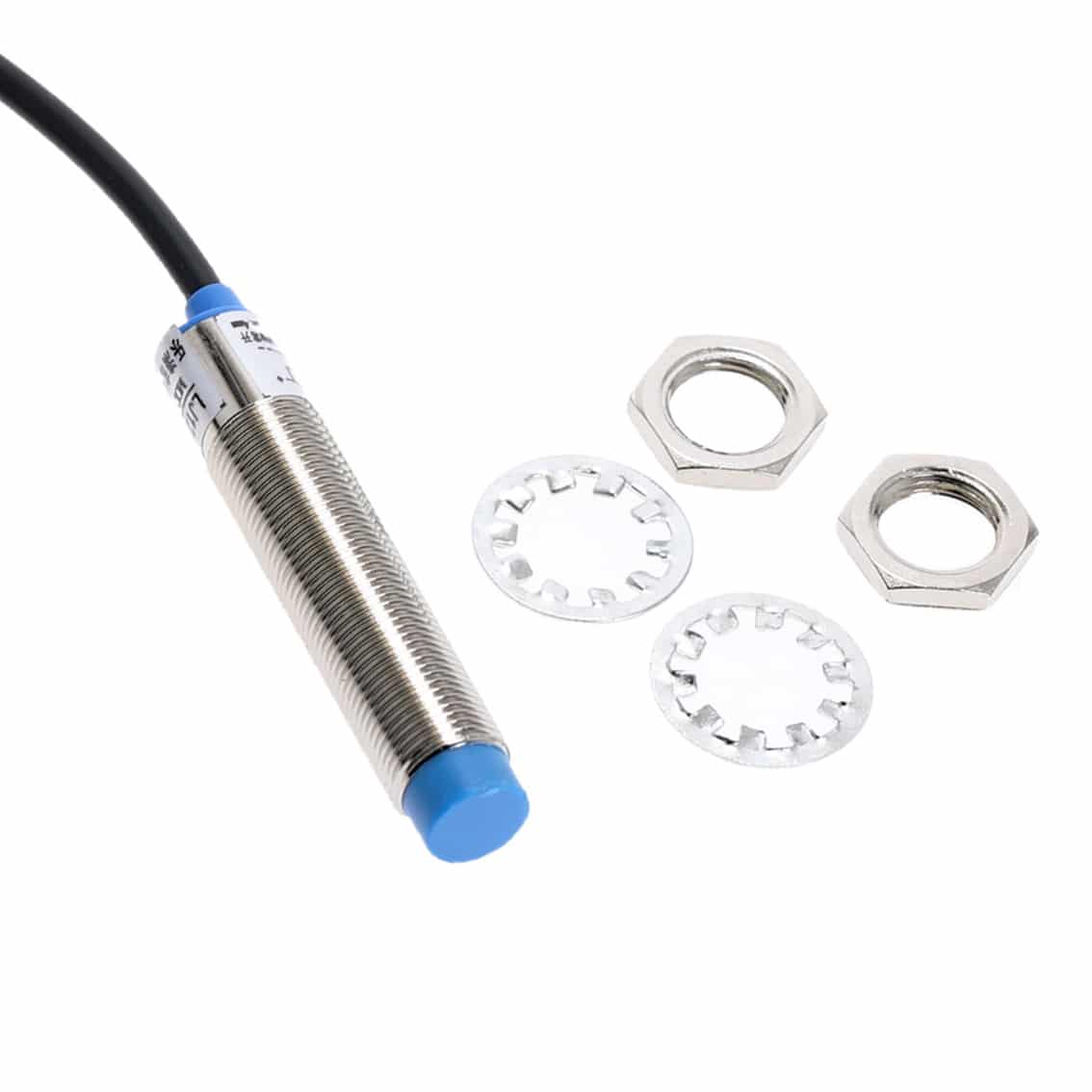

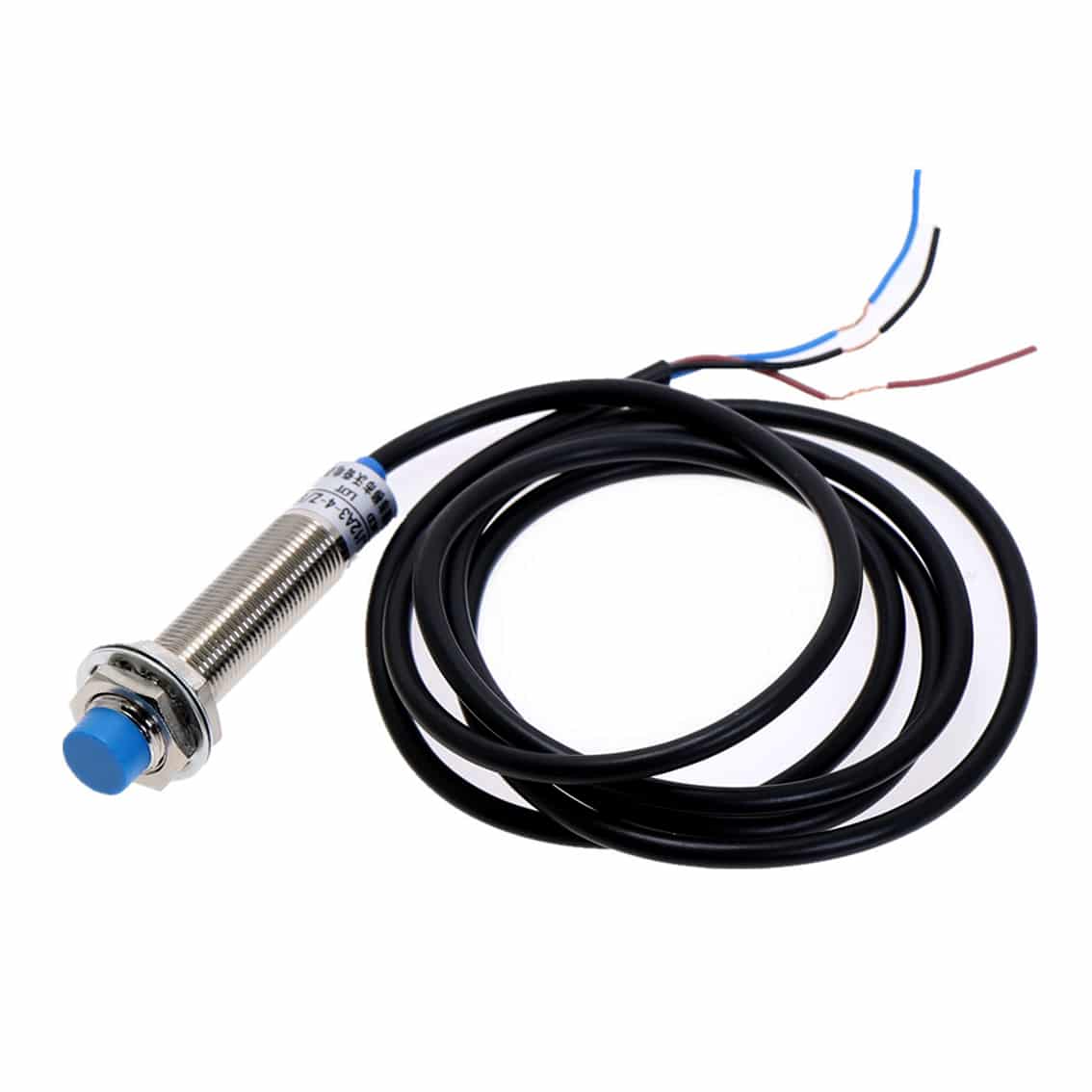

Inductive Proximity NPN Sensor – LJ18A3-8-Z/BY

The LJ18A3-8-Z/BY is a popular inductive proximity switch that is used commonly for detecting, controlling and switching in automatic control applications.

$32.95

Order Within –

Availability: 26 in stock

All stock located in Australia.

Minus Quantity- Plus Quantity+

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002371

You May Also Like...

Description:

The LJ18A3-8-Z/BY is a popular inductive proximity switch that is used commonly for detecting, controlling and switching in automatic control applications.

When the proximity switch is near an object, the switch will send an electrical signal. This sensor is popular with bed levelling in 3D Printers.



Specifications:

Operating Voltage: 6V – 36V DC
Operating Current: 300mA
Detection Distance: 8mm ±10%
Type: NPN

Configuration: NC (Normally Closed)
Response Frequency: 500Hz
Cable Length: 1.2m
Diameter: 18mm
Object Detection: Magnetic metal (the detection distance decreases when an object is a non-magnetic metal)
Weight: 44g
Operating Temperature: -25~+55 °C
Dimensions: 70mm x 30mm



Contents:

  • 1 x Inductive Proximity NPN Sensor – LJ18A3-8-Z/BY
