LTC1871 DC-DC Step-Up Boost Converter 4 – 35V

  • LTC1871 DC-DC Step-Up Boost Converter 4 - 35V
  • LTC1871 DC-DC Step-Up Boost Converter 4 – 35V
  • LTC1871 DC-DC Step-Up Boost Converter 4 – 35V
  • LTC1871 DC-DC Step-Up Boost Converter 4 - 35V
  • LTC1871 DC-DC Step-Up Boost Converter 4 – 35V
  • LTC1871 DC-DC Step-Up Boost Converter 4 – 35V
SKU:
PHI1071292
Category:
Tags:
, ,
Brand:

Price

$16.95

Quantity

- +

Total

$16.95

0 reviews

21 in stock

- +

Description

Description:

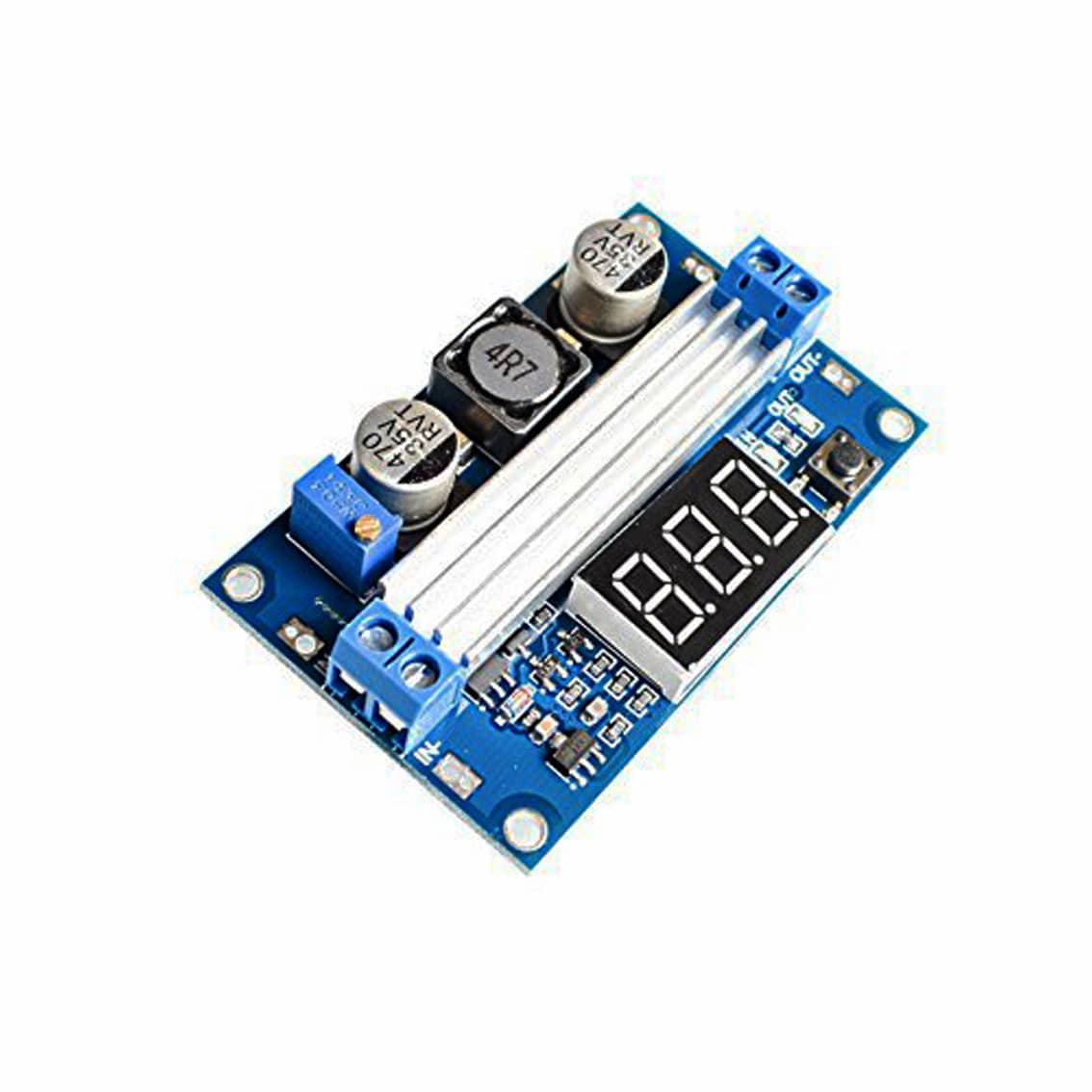

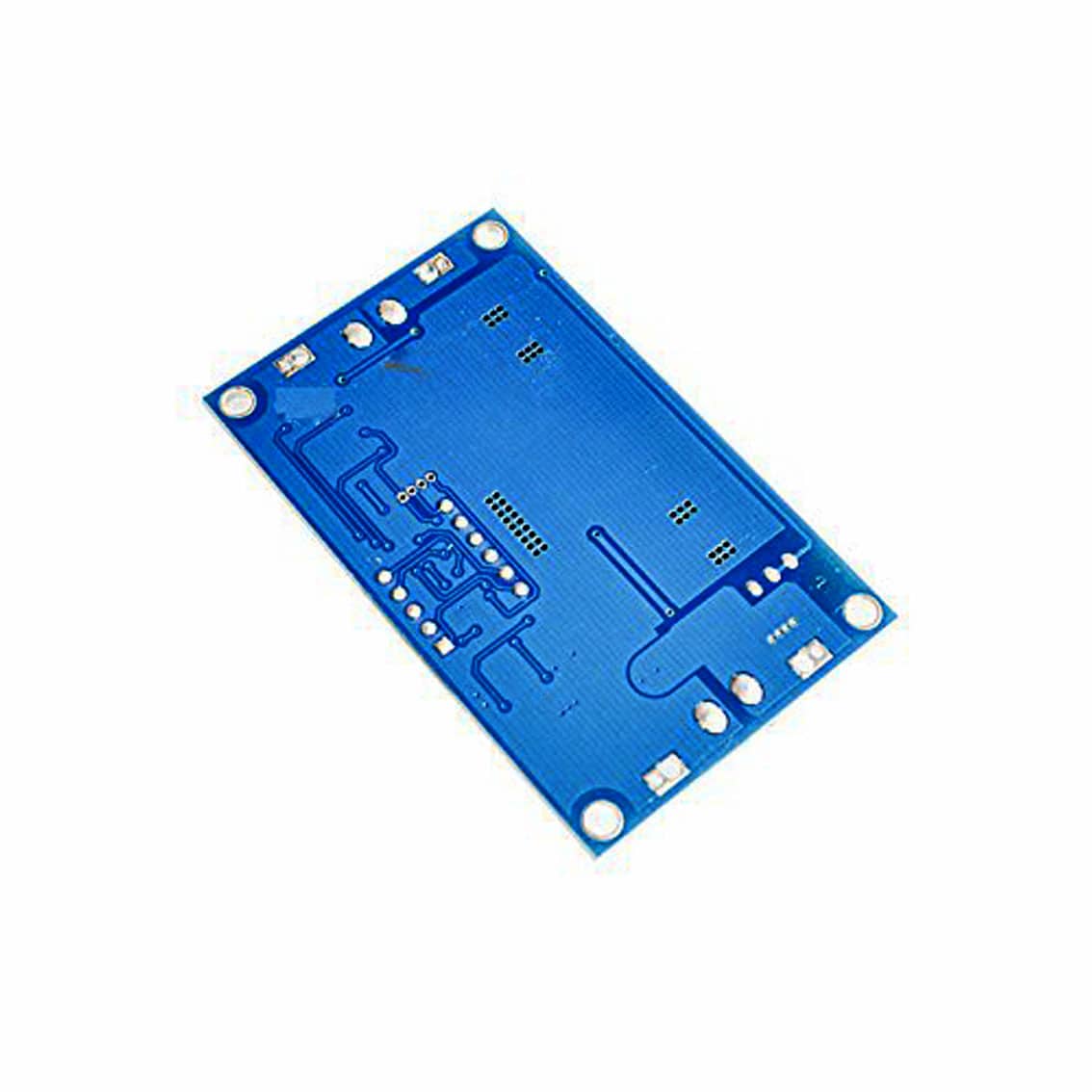

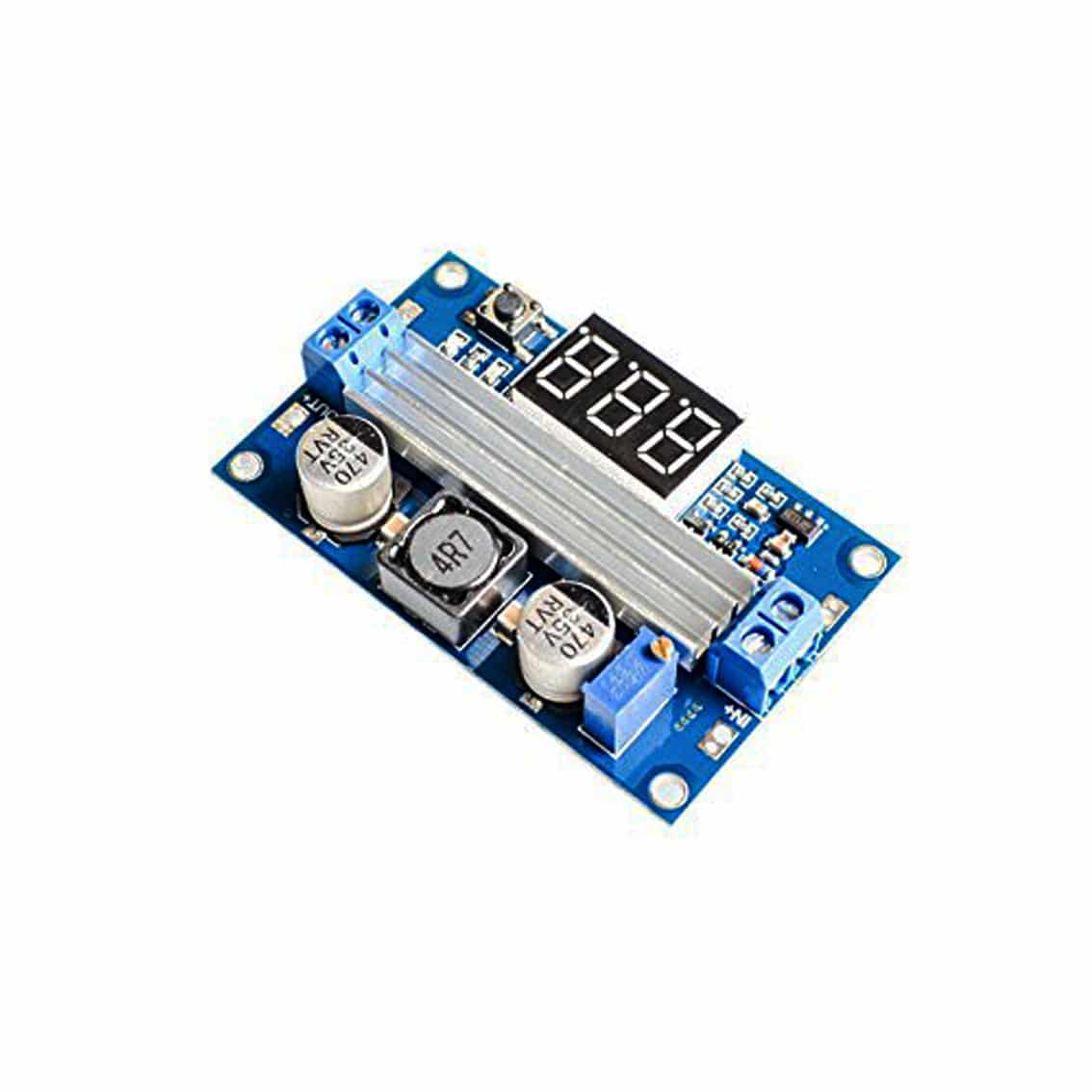

A compact but high-powered DC-DC step-up (boost) power supply converter module. The module features a wide operating supply range and a power supply input voltage between 3.5 to 35V that can step-up this input voltage from 4V to 35V.

The module includes an integrated voltage meter that can measure both the input and output voltages and a voltage selection button which allows for easy switching between the two.

With its high multi-turn precision potentiometer allowing for accurate desired output voltage within its supply range that can be conveniently set without the need of an external test meter.

Specifications

Specifications:

  • Input voltage: 3 – 35V DC
  • Input current: 9A (max)
  • Output voltage: 3.5 – 35V DC
  • Output current: 6A (max)
  • Output power: 65W
  • Conversion efficiency: 96% (max)
  • Output ripple: 40mV (TYP)
  • Onboard voltmeter range: 4 – 40V
  • Error: +/- 0.1V

Contents

Contents:

  • 1 x LTC1871 DC-DC Step-Up Boost Converter 4 – 35V
