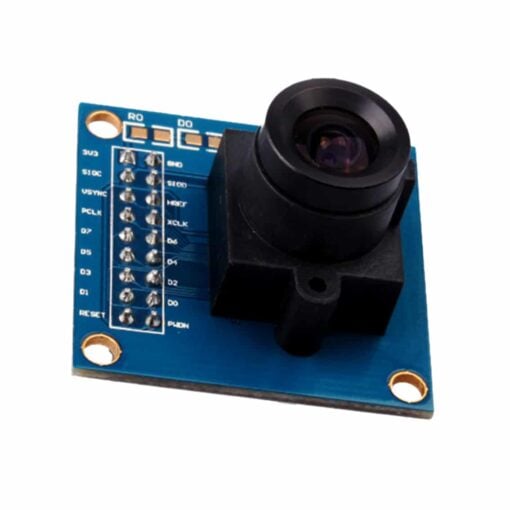

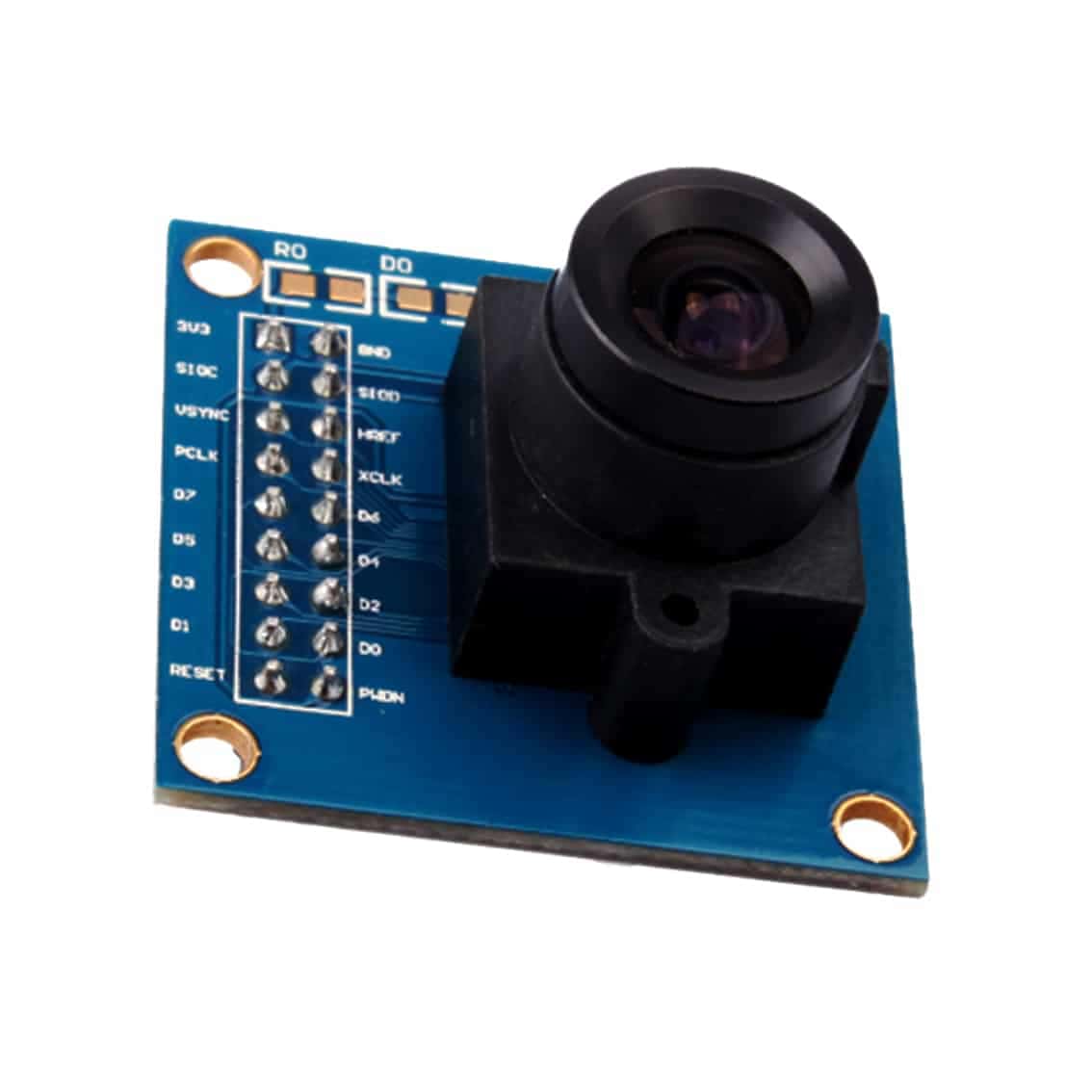

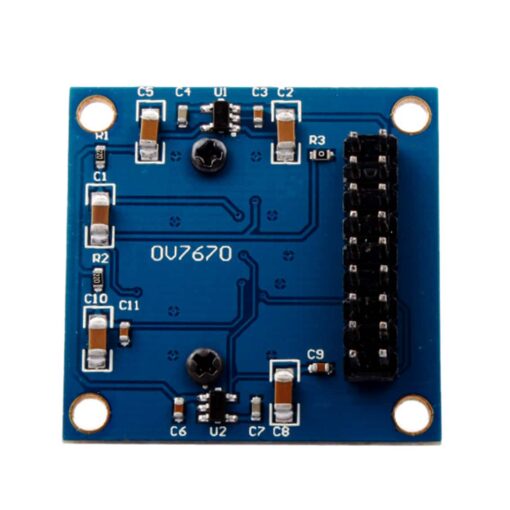

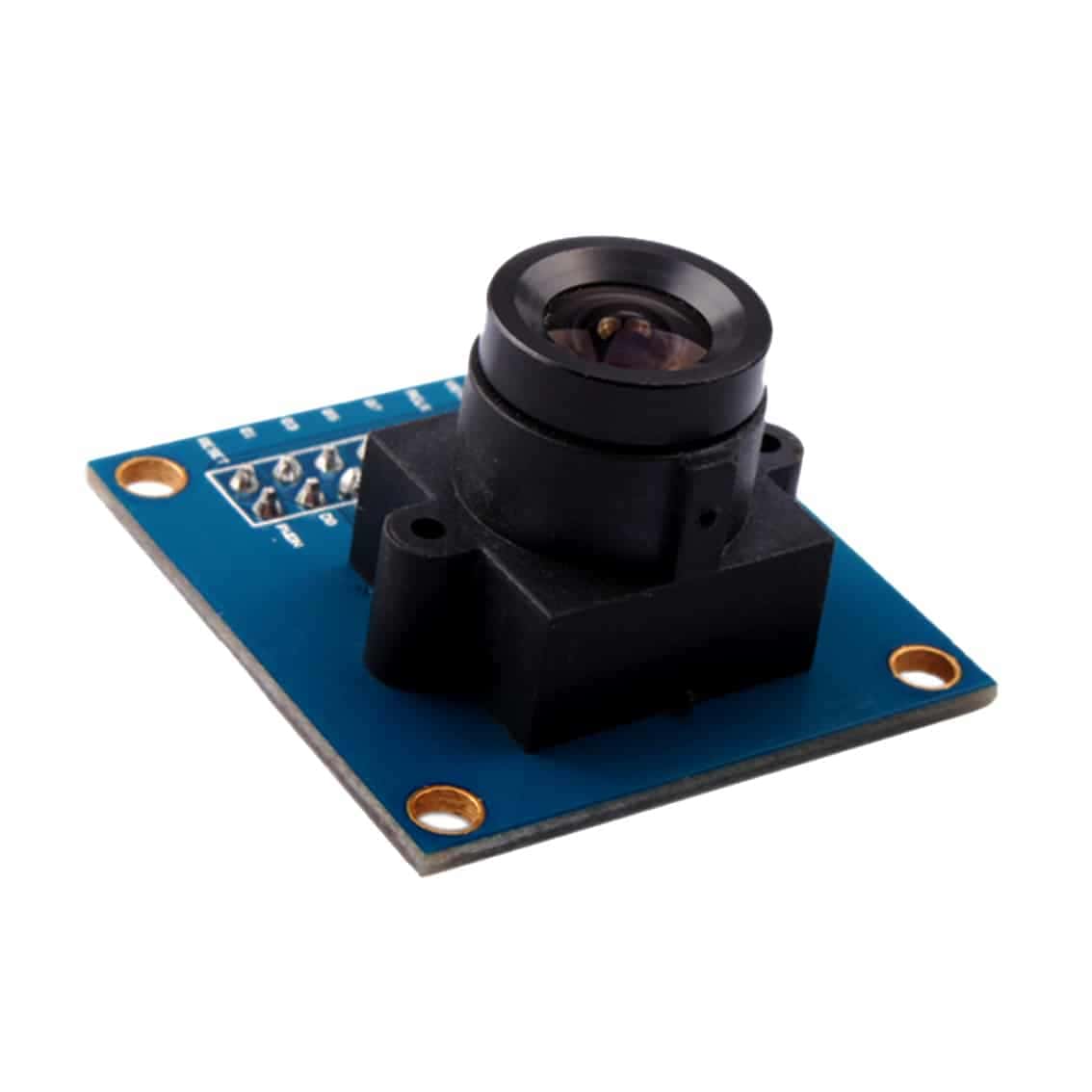

OV7670 Camera Module 640X480

Description

Description:

The OV 6760 camera modules is a low-cost image sensor with all functions of a single-chip VGA camera and image processor. Powered by a single +3.3V power supply, it can operate at a maximum of 60fps and 640×480 VGA resolutions (0.3 Megapixels). It is designed to easily interface with microcontrollers and can be used in Arduino, STM32, Chipkit, ARM, DSP, FPGA platforms. Users can completely control the capture image’s quality, data format, and transmission mode. This preprocessing can be configured via the Serial Camera Control Bus (SCCB). The camera also has lots of documentation and examples on the internet.

Features:

• High sensitivity for low-light applications
• Low voltage suitable for embedded applications
• Standard SCCB interface compatible with I2C interface
• Supports VGA, CIF, and any size scaling down from CIF format to 40×30 size
• VarioPixel method for sub-sampling
• Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40×30
• Automatic image control functions including Automatic
• Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic
• Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
• Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
• ISP includes noise reduction and defect correction
• Supports LED and flash strobe mode
• Supports scaling
• Lens shading correction
• Flicker (50/60 Hz) auto detection
• Saturation level auto adjust (UV adjust)
• Edge enhancement level auto adjust
• De-noise level auto adjust

Specifications:

• Resolution: 640 x 480 VGA
• IO Voltage: 2.5V to 3.0V
• Operating Power: 60mW/15fpsVGAYUV
• Operating Temperature: -30 to 70 deg C
• Sleep: <20μA
• Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit)
• Lens Size: 1/6″
• Vision Angle: 25 degree
• Max. Frame Rate: 30fps VGA
• Sensitivity: 1.3V / (Lux-sec)
• Signal to Noise Ratio: 46 dB
• Dynamic Range: 52 dB
• View Mode: By row
• Electronic Exposure: 1 to 510 row
• Pixel Size: 3.6μm x 3.6μm
• Dark Current: 12 mV/s at 60Deg C
• PCB Size (L x W): Approx. 1.4 x 1.4 inch / 3.5 x 3.5 cm

Contents:

• 1 x OV7670 Camera Module
