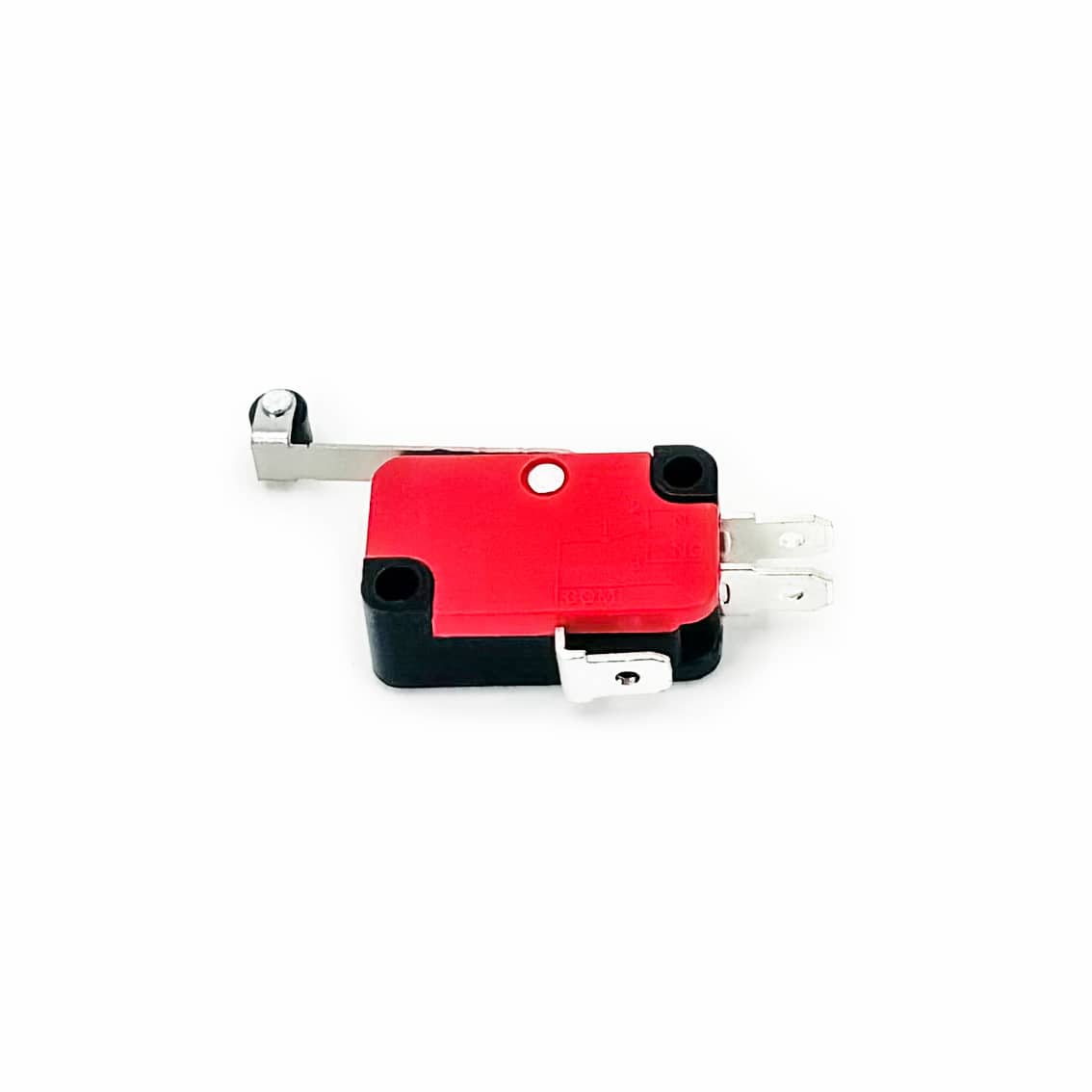

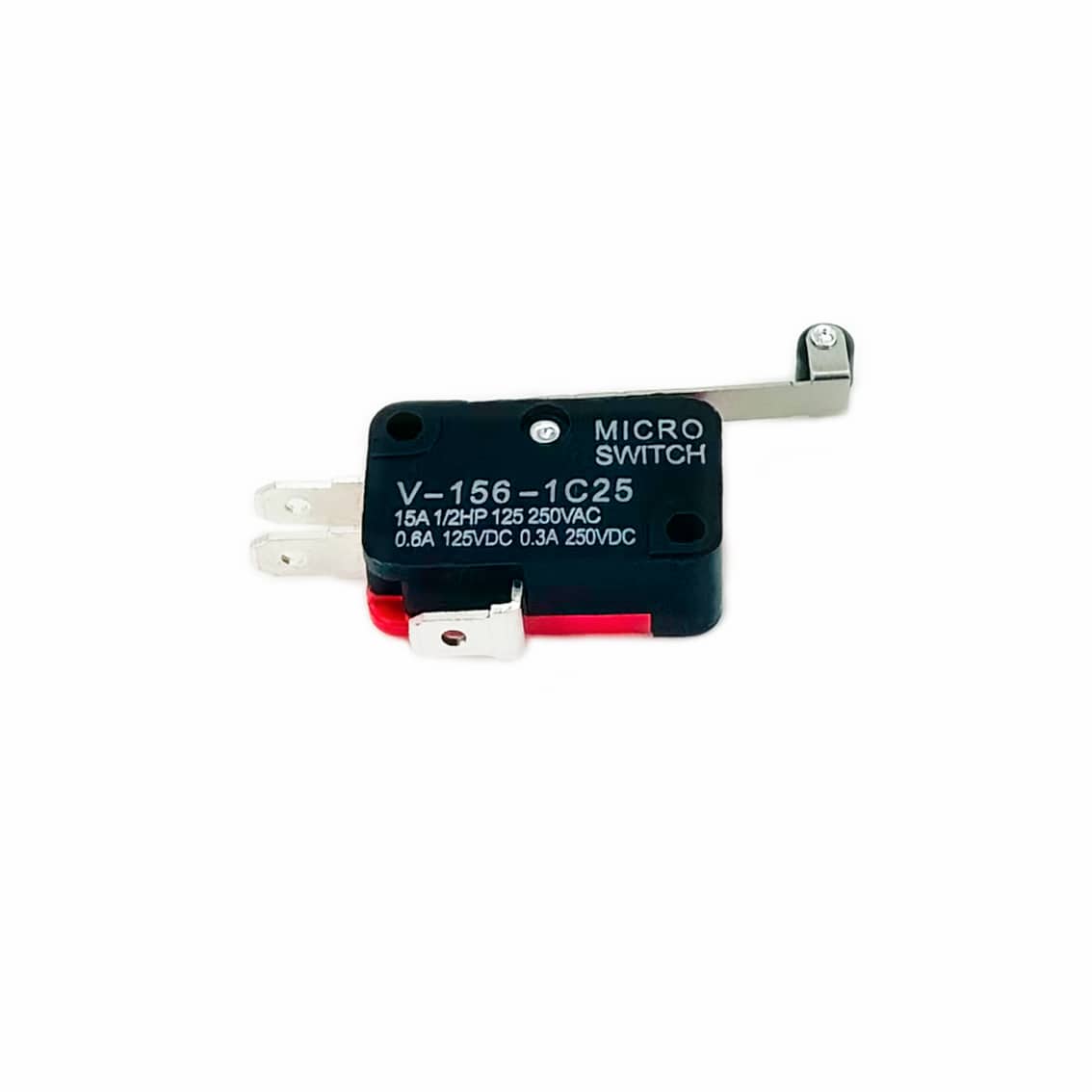

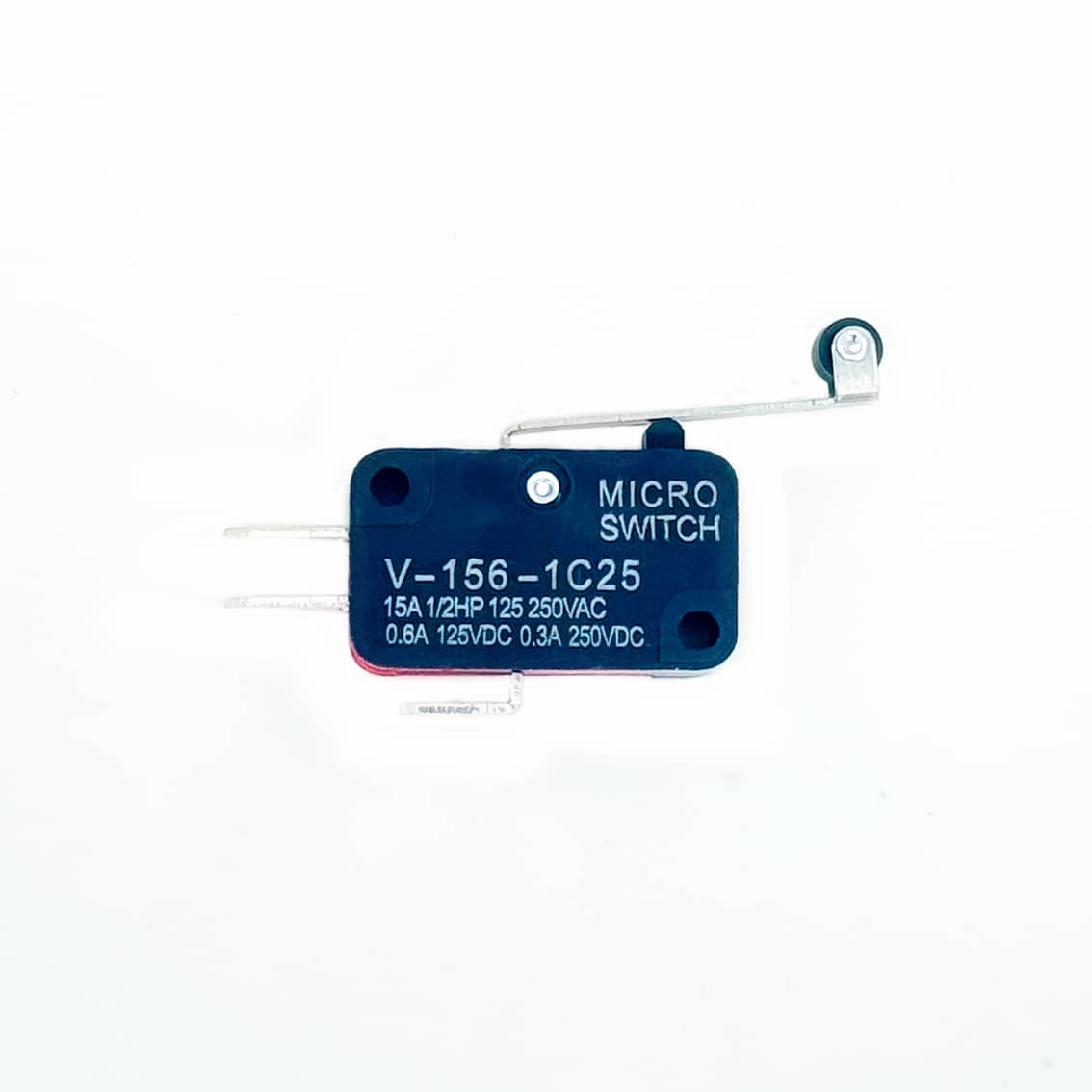

V-156-1C25 Rolling Hinge Micro Limit Switch

15 people have recently viewed this product!

V-156-1C25 Rolling Hinge Micro Limit Switch

The V-156-1C25 Rolling Hinge Micro Limit Switch by Omron is designed for high reliability and precise operation. It features a SPDT configuration, supports high current loads up to 15A, and has a long mechanical life, making it suitable for various industrial and home applications.

$12.95

Order Within –

Availability: 20 in stock

All stock located in Australia.

FREE SHIPPING available in Australia.

EXPRESS SHIPPING Available.

SKU: PHI1003456

Description:

The V-156-1C25 Rolling Hinge Micro Limit Switch is a highly reliable and versatile component used in various applications, including industrial machinery, home appliances, and automation systems. This switch features a single pole double throw (SPDT) contact configuration, allowing it to be used in circuits requiring both normally open (NO) and normally closed (NC) contacts. The rolling hinge lever provides smooth actuation, making it ideal for precise and repetitive operations.

Manufactured by Omron, the V-156-1C25 is designed to handle high current loads up to 15A at 250V AC, ensuring durability and long-lasting performance. Its robust construction and high precision make it suitable for environments where reliability and accuracy are paramount.

Specifications:

  • Model: V-156-1C25
  • Contact Configuration: SPDT (Single Pole Double Throw)
  • Operating Force: 1.23 N (125 gf)
  • Electrical Rating: 15A at 250V AC
  • Mechanical Life: 10,000,000 operations
  • Electrical Life: 50,000 operations
  • Terminals: Quick Connect
  • Actuator Type: Roller Lever
  • Mounting: Screw Mount

Features:

  • High current capacity (15A)
  • Durable and reliable with long mechanical life
  • Precise and consistent operation with rolling hinge lever
  • Versatile SPDT contact configuration
  • Easy to install with quick connect terminals

Contents:

  • 1 x V-156-1C25 Rolling Hinge Micro Limit Switch
Weight 0.01 kg
Dimensions 70 × 50 × 10 mm
