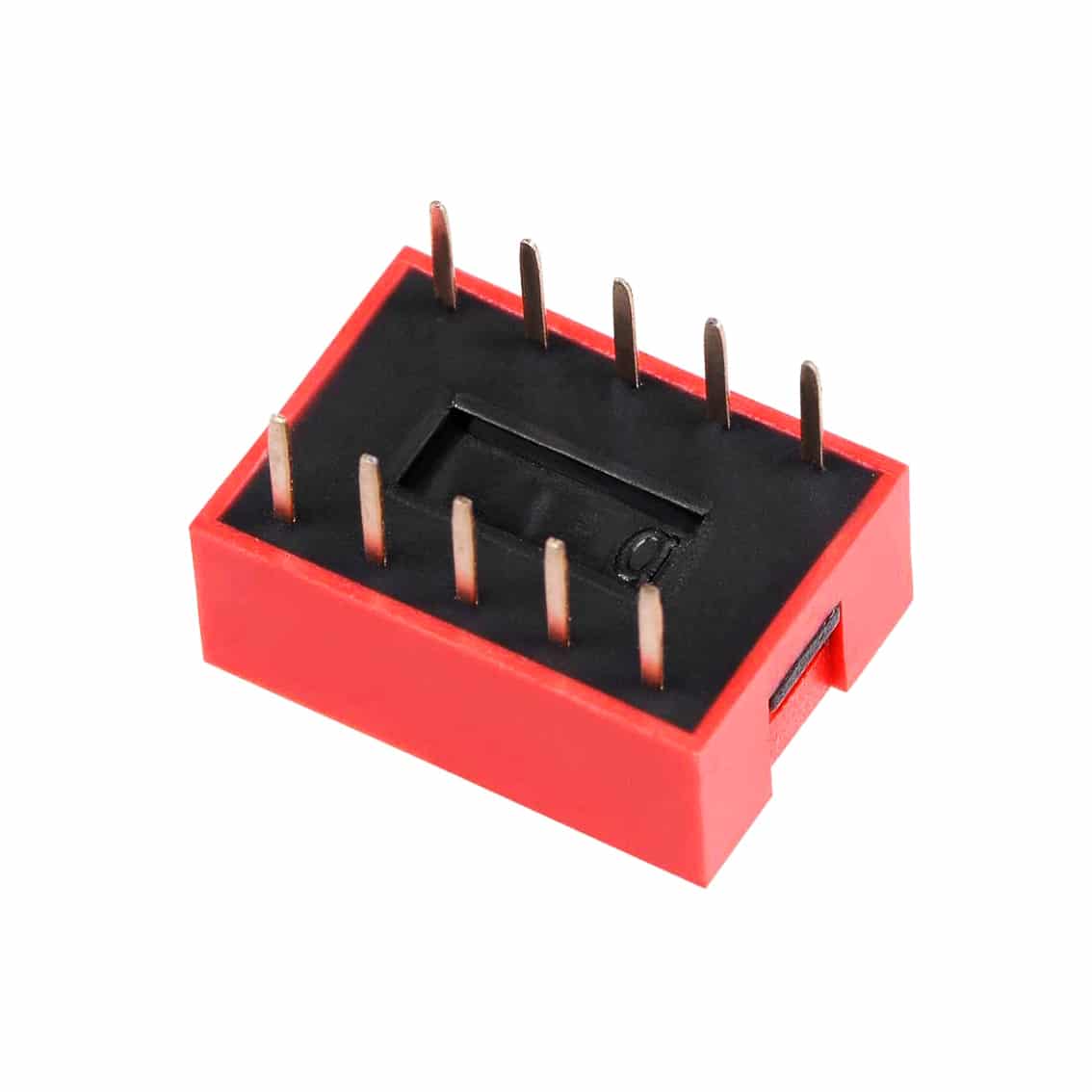

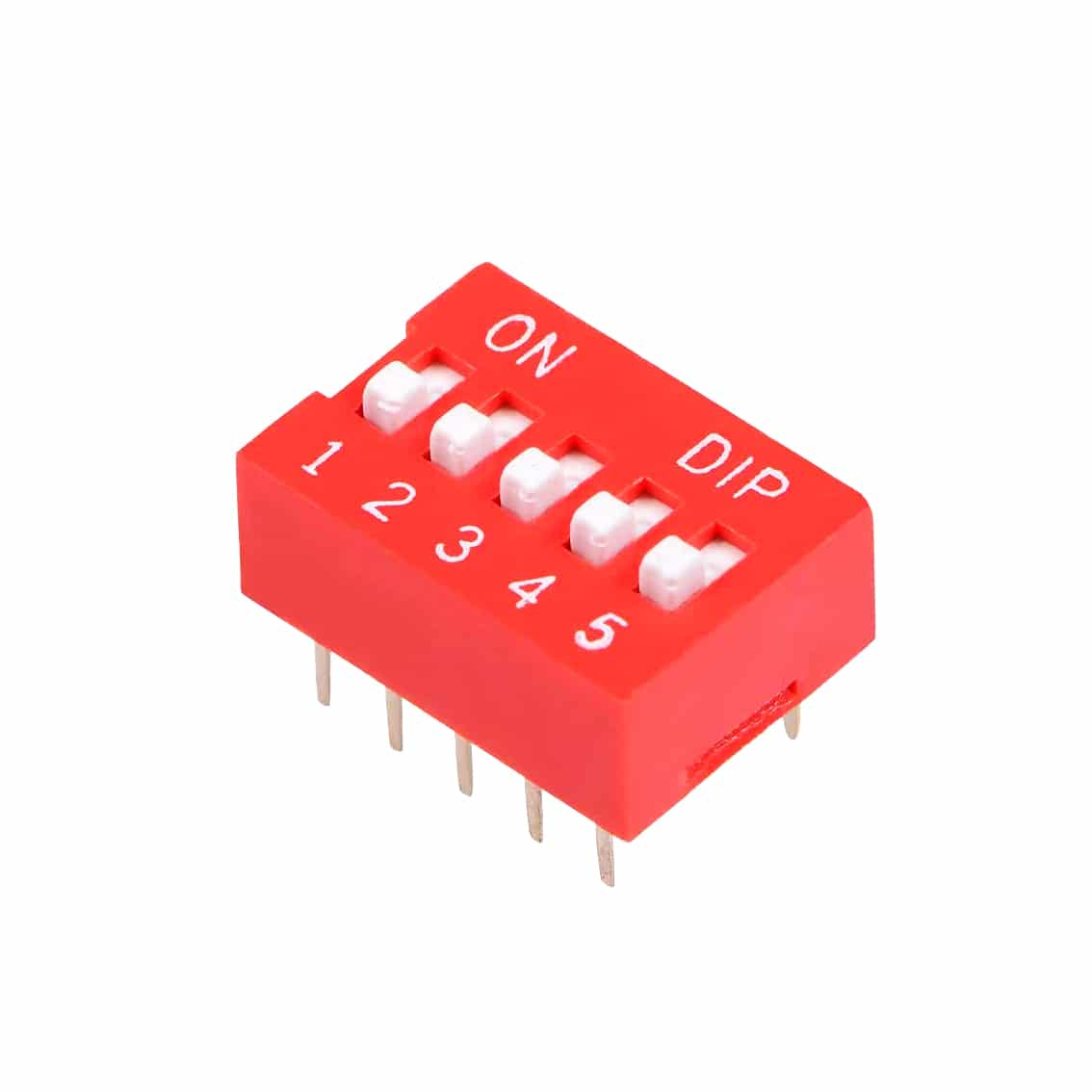

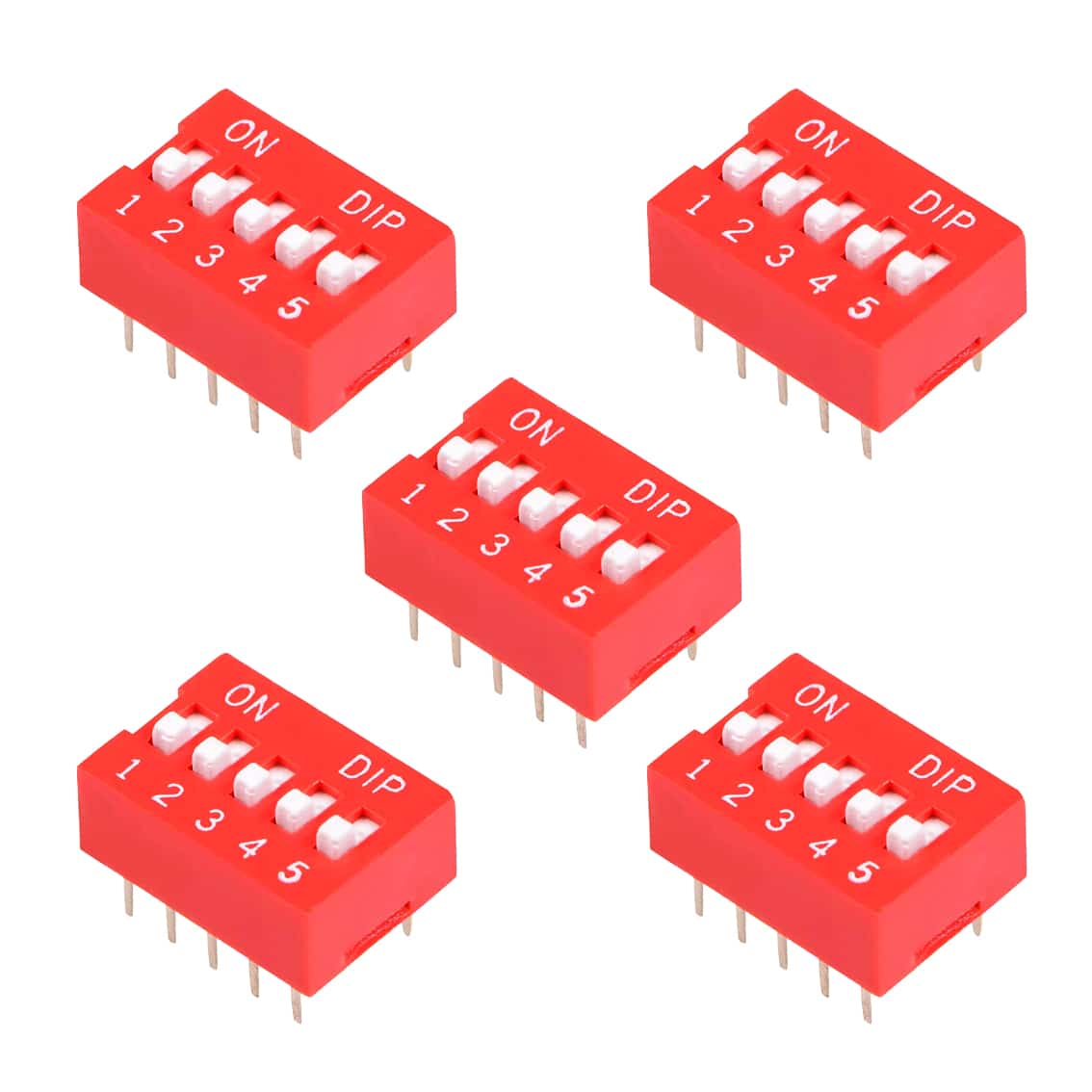

5 Position DIP Switch – Pack of 5

  • PHI1052131 – 5 Position DIP Switch – Pack of 5 02
  • PHI1052131 – 5 Position DIP Switch – Pack of 5 03
  • PHI1052131 – 5 Position DIP Switch – Pack of 5 02
  • PHI1052131 – 5 Position DIP Switch – Pack of 5 03

Description

The 5 Position DIP Switch can do 32 possible combinations. The DIP switch has through-hole mounting and standard slide raised actuator. read more
SKU:
PHI1052131
Category:
Tags:
,
Brand:

Price

$9.95

Quantity

- +

Total

$9.95

0 reviews

29 in stock

- +

Description

The 5 Position DIP Switch can do 32 possible combinations. The DIP switch has through-hole mounting and standard slide raised actuator.

The DIP switch has a pin pitch of 2.54mm and comes in a pack of 5.

Specifications

  • Switch type: DIP
  • Positions: 5
  • Combinations: 32
  • Mounting: Through hole
  • Contact form: SPST
  • Termination style: PC Pin
  • Pitch: 2.54mm
  • Operating temperature: -55C – 85C
  • Dimensions: 9.8mm x 8.4mm x 14.26mm

Contents

  • 5 x 5 Position DIP Switch

Description

Description:

The 5 Position DIP Switch can do 32 possible combinations. The DIP switch has through-hole mounting and standard slide raised actuator.

The DIP switch has a pin pitch of 2.54mm and comes in a pack of 5.



Specifications:

  • Switch type: DIP
  • Positions: 5
  • Combinations: 32
  • Mounting: Through hole
  • Contact form: SPST
  • Termination style: PC Pin
  • Pitch: 2.54mm
  • Operating temperature: -55C – 85C
  • Dimensions: 9.8mm x 8.4mm x 14.26mm



Contents:

  • 5 x 5 Position DIP Switch
