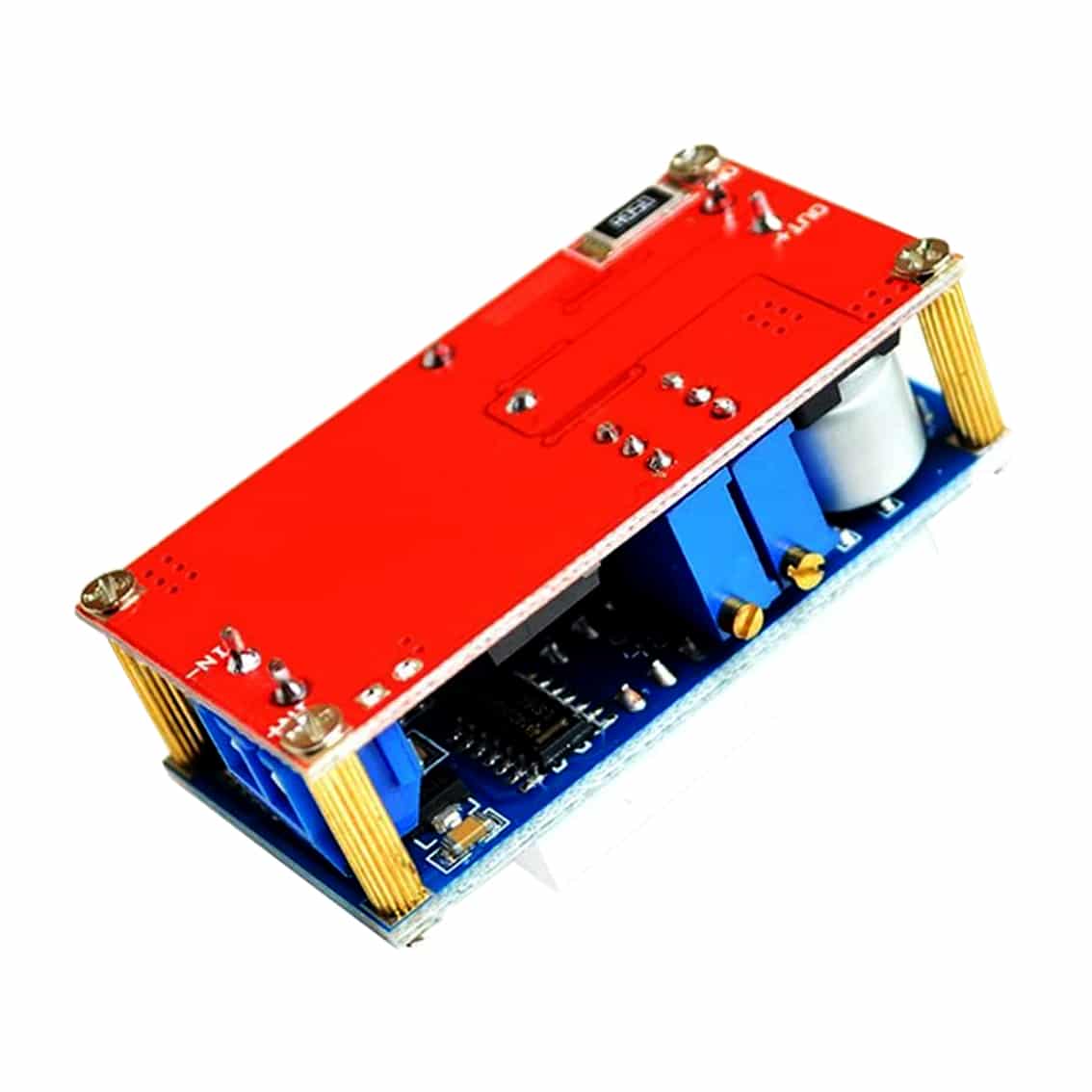

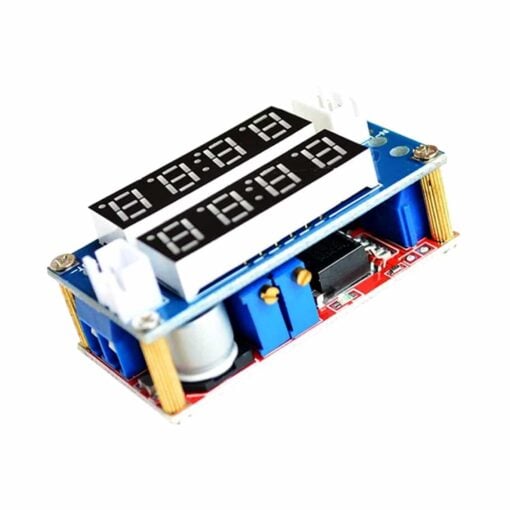

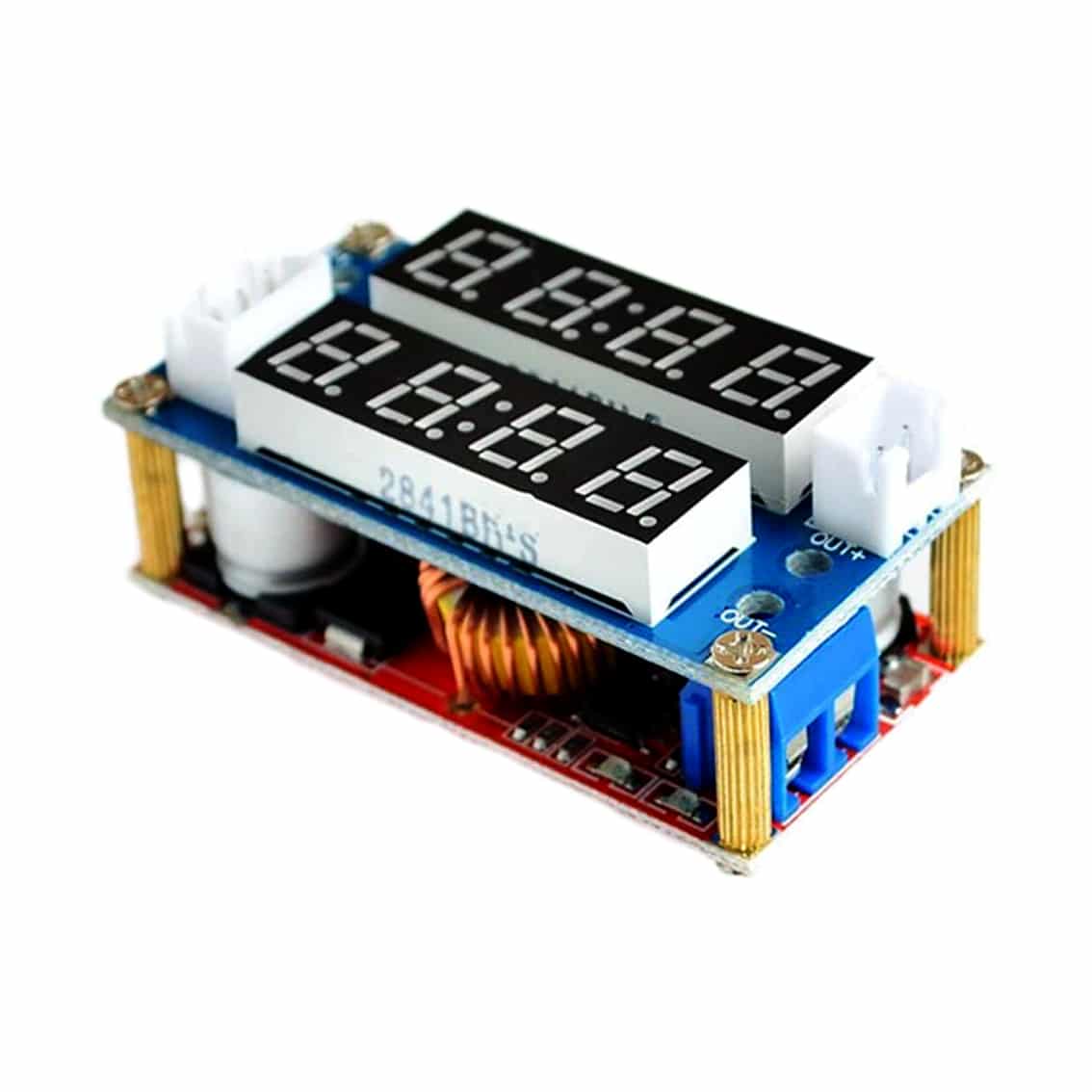

5A DC-DC Adjustable Step Down CC CV Power Supply Module with Voltmeter and Ammeter

  • PHI1072259 – 5A DC-DC Adjustable Step Down 02
  • PHI1072259 – 5A DC-DC Adjustable Step Down 03
  • PHI1072259 – 5A DC-DC Adjustable Step Down 02
  • PHI1072259 – 5A DC-DC Adjustable Step Down 03

Description

This Power Supply module that can output constant current (CC) or constant voltage (CV) up to 5A max. read more

or 4 fortnightly payments of $6.49 with Afterpay More info

SKU:
PHI1072259
Category:
Tags:
, , , ,
Brand:

Price

$25.95

Quantity

- +

Total

$25.95

0 reviews

25 in stock

- +

Description

Description:

This Power Supply module that can output constant current (CC) or constant voltage (CV) up to 5A max.

The module is also equipped with voltmeter and ammeter for info/monitoring of voltage and current outputs.



Specifications:

  • Input voltage: 5V – 32V DC
  • Output voltage: 0.8V – 30V DC
  • Output current: 5A (Maximum)
  • Switching frequency: 300KHz
  • Output ripple: 50mV (Maximum) 20M bandwidth
  • Load regulation: + / – 0.5%
  • Voltage regulation: + / – 2.5%
  • Measurement accuracy: 0.1%
  • Display refresh rate: ~ 200ms
  • Operating temperature: -40C – 85C
  • Dimensions: 51mm x 26.3mm x 14mm



Contents:

  • 1 x 5A DC-DC Adjustable Step Down CC CV Power Supply Module with Voltmeter and Ammeter
