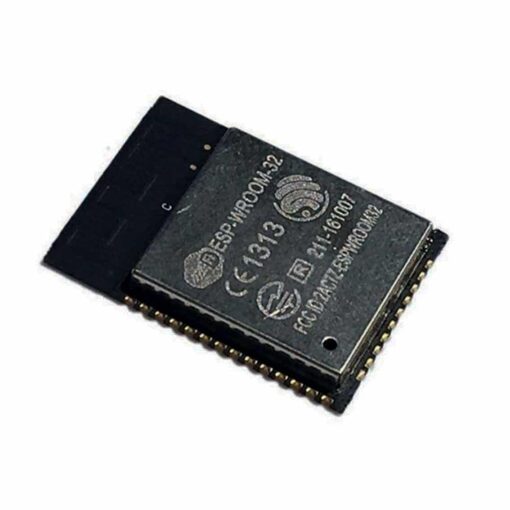

ESP32 WiFi and Bluetooth Dual Core MCU Module – ESP-WROOM-32

  • ESP32 WiFi and Bluetooth Dual Core MCU Module – ESP-WROOM-32
  • ESP32 WiFi and Bluetooth Dual Core MCU Module – ESP-WROOM-32
SKU:
PHI1071337
Category:
Tags:
,
Brand:

Price

$14.95

Quantity

- +

Total

$14.95

0 reviews

27 in stock

- +

Description

Description:

The ESP32 WiFi and Bluetooth chip is the latest generation of Espressif products. It has a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology inside.

Compared to the Arduino ESP8266 (the previous generation), the ESP32 has a significant performance improvement. It is equipped with a high-performance dual-core Tensilica LX6 MCU. One core handles high-speed connection and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS. In addition, it supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources.

ESP32 chip integrates a wealth of hardware peripherals, including capacitive touch sensors, Hall sensors, low noise sensor amplifiers, SD card interfaces, Ethernet interfaces, high-speed SDIO / SPI, UART, I2S, and I2C, etc.

Engineered for mobile devices, wearable electronics and Internet of Things (IoT) applications, the ESP32 achieves ultra-low power consumption with a combination of several proprietary software applications. The state-of-the-art power-saving features include fine resolution clock gating, power modes, and dynamic power scaling.

Specifications

Specifications:

  • CPU and Memory
    • Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS
    • 448 KByte ROM
    • 520 KByte SRAM
    • 16 KByte SRAM in RTC
    • QSPI Flash/SRAM, up to 4 x 16 MBytes
    • Power supply: 2.2 V to 3.6 V
  • Clocks and Timers
    • Internal 8 MHz oscillators with calibration
    • Internal RC oscillator with calibration
    • External 2 MHz to 40 MHz crystal oscillator
    • External 32 kHz crystal oscillator for RTC with calibration
    • Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
    • RTC timer with sub-second accuracy
    • RTC watchdog
  • Advanced Peripheral Interfaces
    • 12-bit SAR ADC up to 18 channels
    • 2 × 8-bit D/A converters
    • 10 × touch sensors
    • Temperature sensor
    • 4 × SPI
    • 2 × I2S
    • 2 × I2C
    • 3 × UART
    • 1 host (SD/eMMC/SDIO)
    • 1 slave (SDIO/SPI)
    • Ethernet MAC interface with dedicated DMA and IEEE 1588 support
    • CAN 2.0
    • IR (TX/RX)
    • Motor PWM
    • LED PWM up to 16 channels
    • Hall sensor
    • Ultra-low power analog pre-amplifier
  • Dimensions: 18mm x 25mm x 3mm

Contents

Contents:

  • 1 x ESP32 WiFi and Bluetooth Dual-Core MCU Module – ESP-WROOM-32
