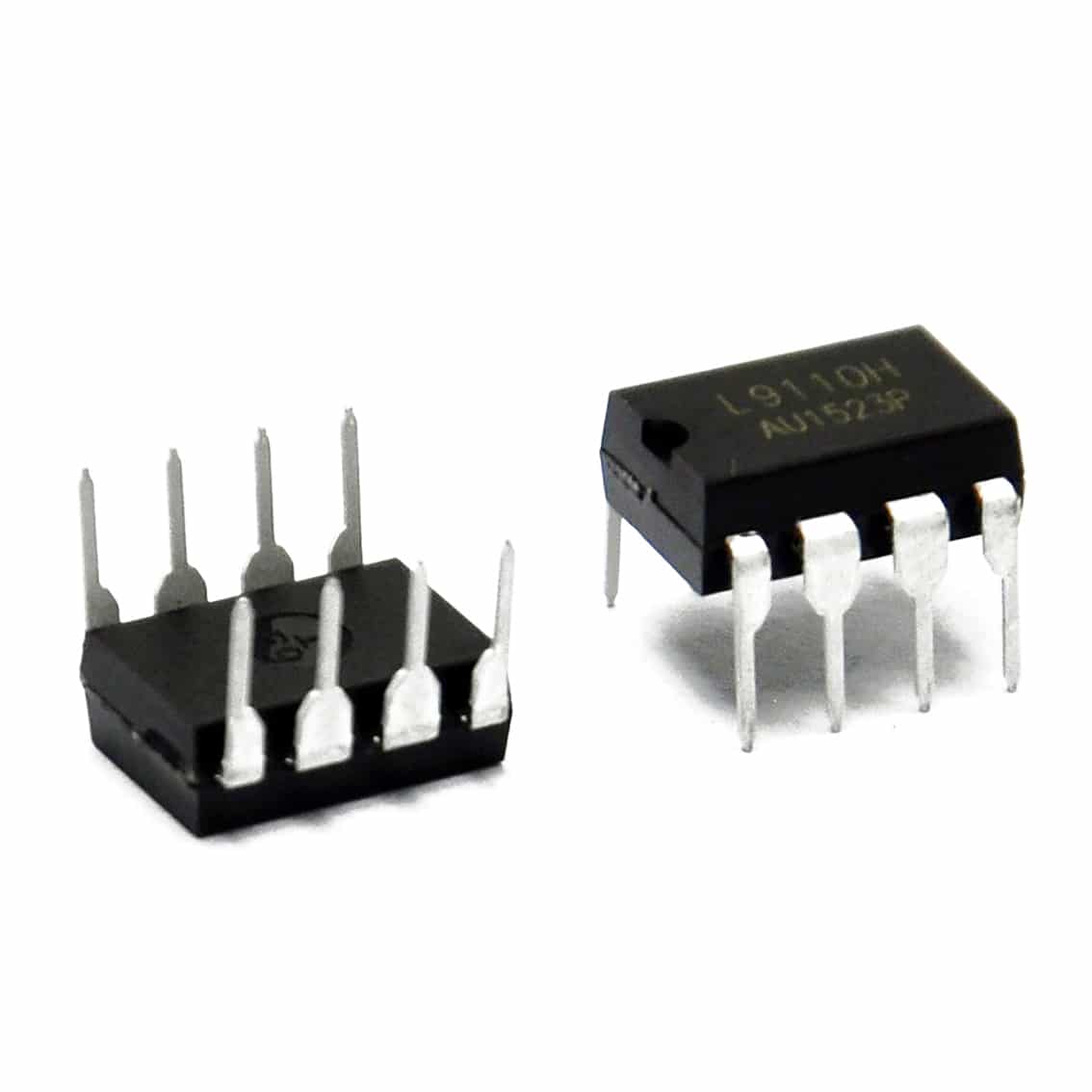

L9110H CMOS Motor Driver IC – Pack of 5

$10.95

The L9110H is an easy to use motor controller IC. With ASIC device control and drive motor design two-channel push-pull power amplifier with discrete circuits inside of it.

In stock

SKU: PHI1051439 Category: Tag:

Description:

The L9110H is an easy to use motor controller IC. With ASIC device control and drive motor design two-channel push-pull power amplifier with discrete circuits inside of it.

CMOS technology allows for the L9110H to perform smoothly and fast. The L9110H has a large current driving capacity with each channel able to handle upt0 800mA continuous current and peak currents of 1.5A.

Specifications:

  • Operating voltage: 2.5V – 12V
  • Operating current: 800mA continuous per channel
  • Low saturation voltage
  • TTL / CMOS output level compatible
  • Output built-in clamp diodes for inductive load
  • Integrated control and drive into a monolithic IC
  • Pin high-voltage protection function
  • Operating temperature: 0C – 80C

Contents:

  • 5 x L9110H CMOS Motor Driver IC
