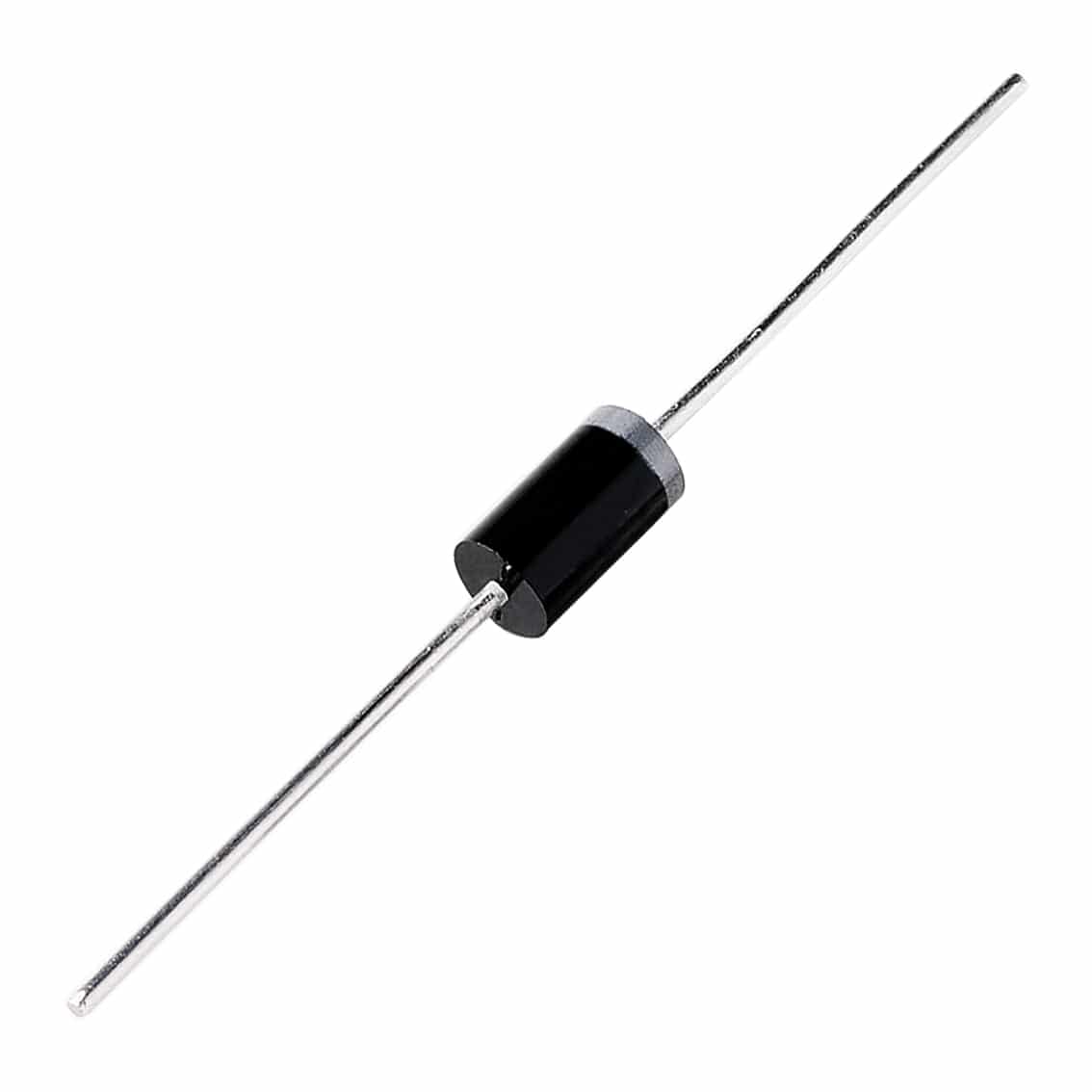

P6KE6.8A 6.6V 600W TVS Diode – Pack of 15
The P6KE6.8A is a transient voltage suppressor type diode, featuring a fast response time of 5ns for bidirectional and <1ps from 0V to BV for unidirectional.
The P6KE6.8A has 600W peak power and is suitable for bipolar applications.
- Series: P6KE6.8A
- Package/Case: DO-15
- Type: Transient Voltage Suppressor (TVS)
- Mounting Style: Through Hole
- Working Voltage: 5.8 V
- Breakdown Voltage: 6.45 V
- Peak Pulse Power Dissipation: 600 W
- Clamping Voltage: 10.5 V
- Operating Temperature: -65 – +150 degrees Celsius
- Weight: 0.3g
- Dimensions: 7.6 mm x 3.6 mm
- 15 x P6KE6.8A 6.6V 600W TVS Diode
