SR540 40V 5A Schottky Rectifier Diode – Pack of 15

Sale!
25 people have recently viewed this product!

SR540 40V 5A Schottky Rectifier Diode – Pack of 15

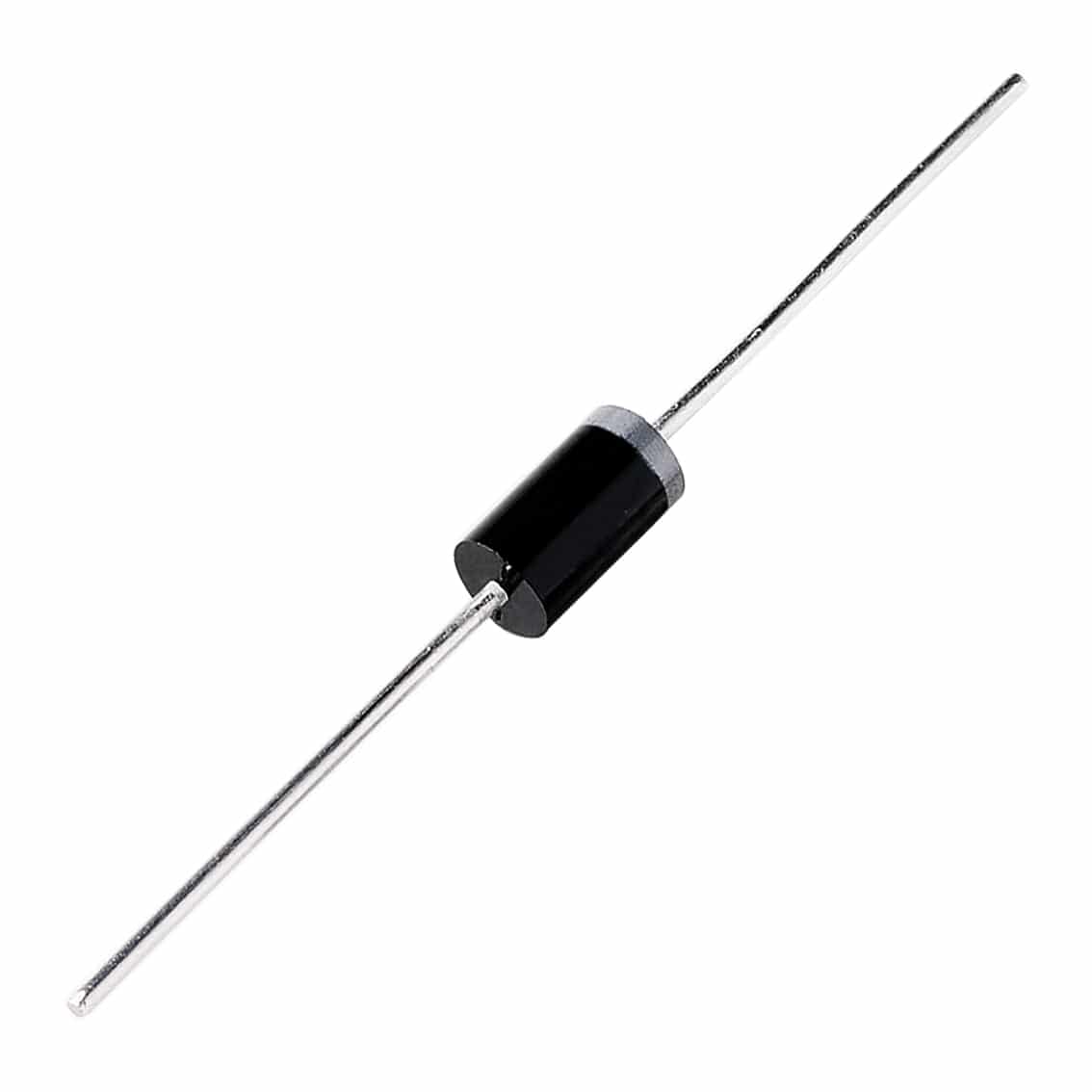

The SR540 is a 5A Schottky barrier diode with a voltage rating of 40V. Enclosed in a DO-201AD housing.

Original price was: $15.95.Current price is: $14.95.

Order Within –

Availability: 55 in stock

All stock is located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1002706

Description:

The SR540 is a 5A Schottky barrier diode with a voltage rating of 40V. Enclosed in a DO-201AD housing.

The SR540 has a maximum forward voltage of 0.55V and a peak reverse current of 200mA.

Schottky barrier rectifier diodes have a guard ring for transient protection, they have a low power loss, high efficiency, high current capability, high surge protection and are commonly used in low voltage, high-frequency inverters, freewheeling, and polarity protection applications.



Specifications:

  • Mounting Style: Through Hole
  • Package/Case: DO-201AD / Molded plastic
  • Type: Schottky
  • Reverse Voltage: 40 V
  • Forward Voltage: 0.55 V
  • Forward Current: 5.0 A
  • Maximum Surge Current: 150 A
  • Reverse Current: 0.05 A
  • Typical Current Squared Time: 93.3 I2-sec
  • Operating Temperature: 150 degrees Celsius
  • Series: SR540
  • Weight: 1.18 grams
  • Dimensions: 8.5 mm x 5.0 mm



Contents:

  • 15 x SR540 40V 5A Schottky Rectifier Diode
Weight 0.014 kg
Dimensions 90 × 10 × 60 mm
Brand

Diode Type

Maximum Reverse Voltage

Max Reverse Leakage Current

50mA

Maximum Forward Voltage

Max Cont Forward Current

5A

Peak Forward Surge Current

150A

Operating Temperature

Package / Case

Mounting Type
