STPS1545CT 45V 15A Schottky Diode – Pack of 10

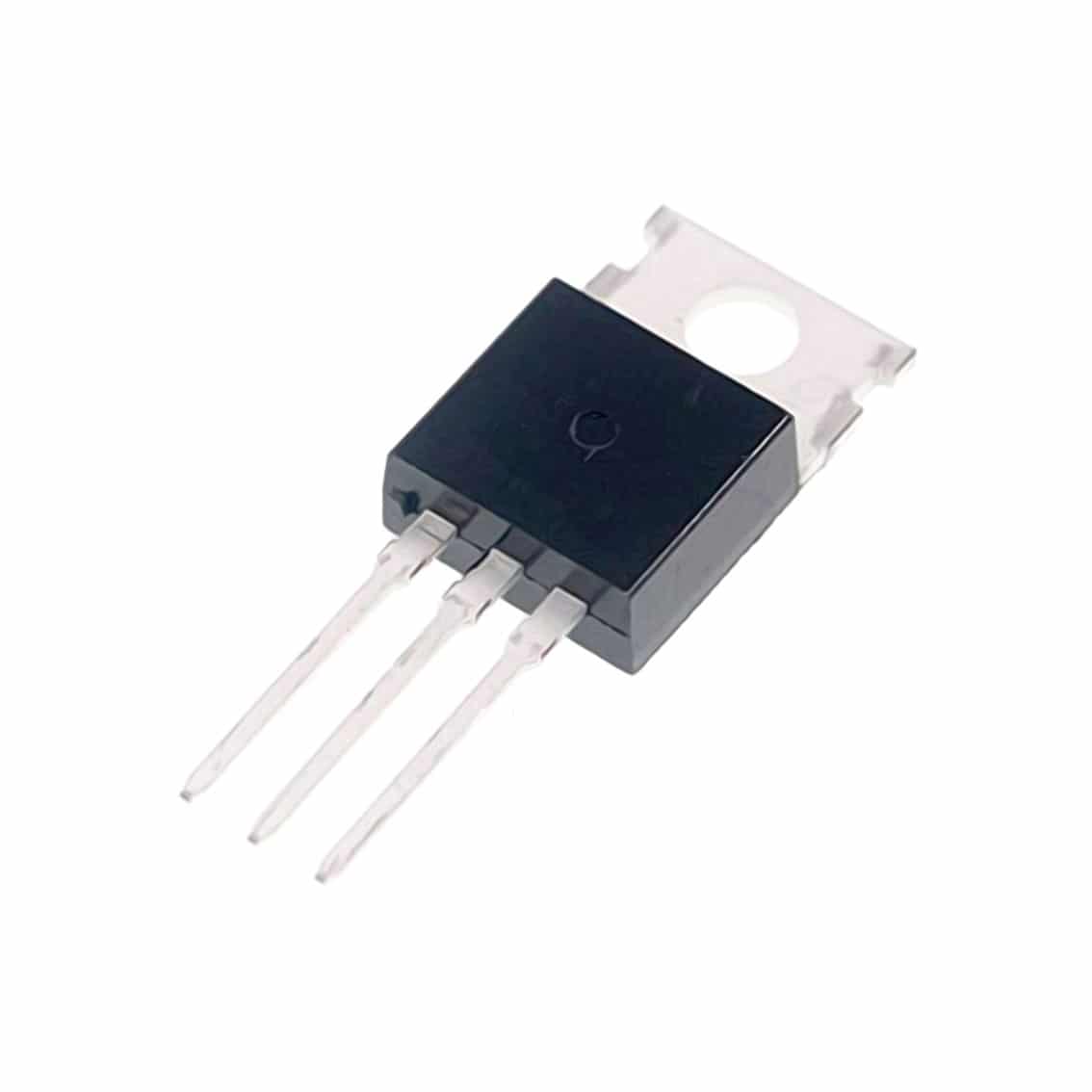

The STPS1545CT is a 15A schottky barrier diode with a voltage rating of 45V. Enclosed in a TO-220AB housing.
The STPS1545CT has a maximum forward voltage of 0.84V and peak reverse current of 100uA.
Schottky barrier rectifier diodes have a guard ring for transient protection, they have a low power loss, high effeciency, high current capability, high surge protection and are commonly used in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
- Voltage: 45V
- Current: 15A
- Housing: TO-220AB
- Forward voltage: 0.84V @ 15A
- Reverse current: 100uA
- Max surge current: 150A
- Operating temperature: -65?C ? 175?C
- Configuration: Dual common cathode
- Pins: 3
- Quantity: 10 pieces
- 10 x STPS1545CT 45V 15A Schottky Diode
