Description:

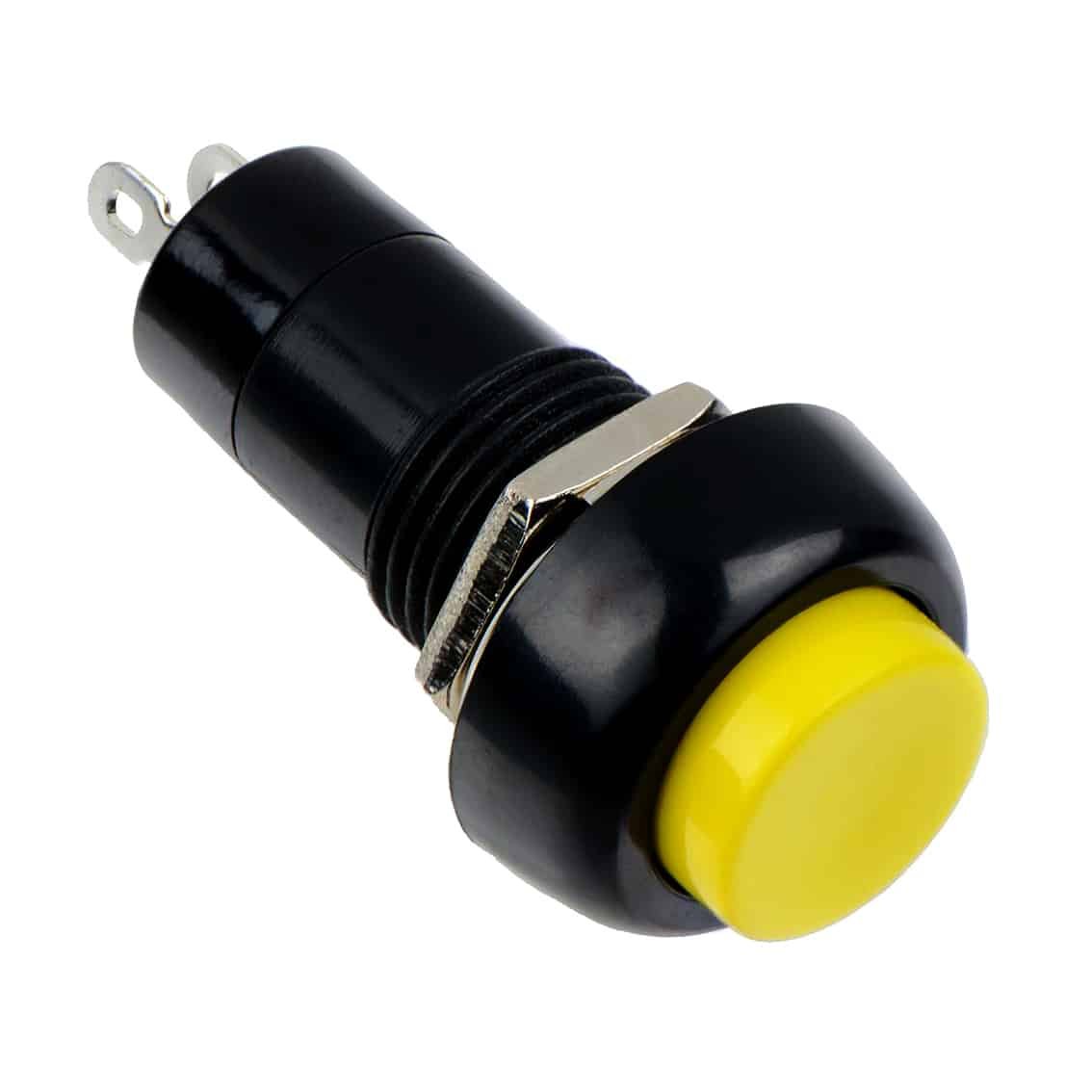

The Yellow Momentary Push Button Switch PBS-11 is a reliable and durable switch suitable for various applications. This push button switch is designed to provide a momentary action, meaning it only stays active while being pressed. It is widely used in control panels, household appliances, electronic equipment, and other devices where a temporary switch is required. The switch features a 12mm diameter button and is easy to mount on panels, making it a versatile choice for both industrial and domestic uses.
Constructed with high-quality materials, the PBS-11 switch ensures a long operational life with over 100,000 cycles. It operates efficiently under various environmental conditions, making it suitable for use in different settings. The switch comes in a pack of 5, providing an economical solution for projects requiring multiple switches.
Specifications:
- Model: PBS-11A
- Action Type: Momentary
- Contact Type: Normally Open (NO)
- Voltage Rating: AC 250V, 3A
- Button Diameter: 12mm
- Mounting Hole Diameter: 12mm
- Terminals: 2 pins
- Contact Resistance: 50mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: 2000Vac, 50Hz for 1 min
- Mechanical Life: 200,000 cycles
- Electrical Life: 50,000 cycles
- IP Rating: IP40
- Operating Temperature: -25°C to 55°C
- Operating Humidity: 45% to 85% RH
Features:
- High-quality, environmentally friendly materials
- Easy installation with 12mm mounting diameter
- Durable with a long operational life
- Provides a momentary switch action
- Suitable for a wide range of applications
Contents:
- 5 x Yellow Momentary Push Button Switch PBS-11
